Product Specifications
| Prod Model: |
GD-1884 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Standard: |
ASTM D 1298 |
| Test Method: |
Hydrometer Method |
| Test Tube: |
500ml |
| Temperature Controlling Range: |
0 °c~100 °c |
| Heating Power: |
700 W, 1000 W |
Product Description
Summary

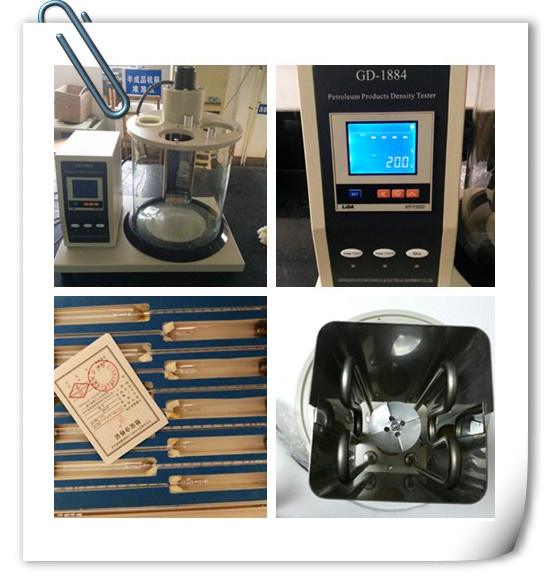

GD-1884 Density Meter is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products - Laboratory determination of density - Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum.
I. Main technical features
1. GD-1884 Density Meter is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It's structure is simple and compact. Easy to operate.
2. It adopts intelligent LCD temperature controller. The control rate is fast and overstrike is small. The temperature control can reach ±0.2ºC.
3. It equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.
II. Main technical specifications
1. Power supply: AC(220±10%)V, 50Hz.
2. Volume of glass vessel: 300×340mm
3. Volume of test tube: 500ml
4. Heating power: 700W,1000W
5. Temperature controller:
(1) Range: 0ºC~100ºC
(2) Accuracy: ±0.2ºC
(3) Sensor: Pt100
6. Thermometer: Mercury-in-glass thermometer. Scale division 0.2ºC.
7. Dimension: 560mm×380mm×580mm
| No. | Name | Unit | Quantity |
| 1 | GD-1884 Petroleum Product Density Tester | set | 1 |
| 2 | Thermometer( -20~ 102 °C ,graduation 0.2°C ) | pc | 1 |
| 3 | SY_ 05 densimeter ( 10 pcs ) | set | 1 |
| 4 | Sensor nipple | pc | 1 |
| 5 | Thermometer plug ( 3# ) | pc | 2 |
| 6 | 500ml tube | pc | 2 |
| 7 | Thermometer collar ( 1# ) | pc | 4 |
| 8 | Rubber plug ( 21# ) | pc | 1 |
| 9 | Power wire ( 250V 10A ) | pc | 1 |
| 10 | Fuse 10A(φ 5 × 20 ) | pc | 2 |
