Ziqi Compressor (Shanghai) Co., Ltd. >> Atlas Screw Air Compressor (BLT-20A) , Air Compressor

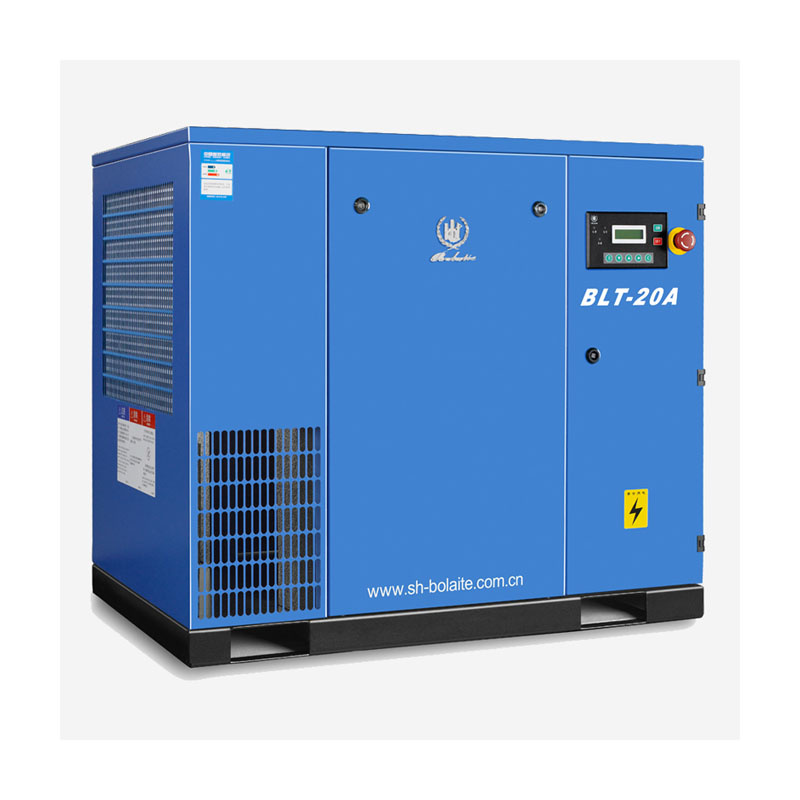

Atlas Screw Air Compressor (BLT-20A) , Air Compressor

Name: Atlas Screw Air Compressor (BLT-20A) , Air Compressor
Brand: china-manufacturer-directory.com
SKU: 736912215
Availability: InStock
Rating: 4.6 (64 reviews)

Supplier:	Ziqi Compressor (Shanghai) Co., Ltd.
Price:	US $ 5000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BLT-20A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance:	Low Noise
Type:	Screw
Drive Mode:	Electric
Configuration:	Stationary
Power Source:	AC Power
Lubrication Style:	Lubricated
Mute:	Not Mute
Quality:	High
Certification:	CE/ISO9001
Model:	Blt-20A

Product Description

Atlas Screw Air Compressor (BLT-20A), air compressor
Features

¨ 1, Air ends: Sweden Atlas Origin

¨ 2, Bearing: 100% Sweden SKF (LIFE60000hours )

¨ 3, Air Intake Valve: Sweden Atlas Origin

¨ 4. Electro motor: ABB WOLONG

¨ 5. Thermostat valve: Austria Hoerbiger

¨ 6. Pressure sensor: UK GEMS Origin

¨ 7. Container: Shanghai ShenJiang

¨ 8. Oil filter: Germany MANN Origin

¨ 9. Oil/Gas separator: Germany MANN Origin

¨ 10. Lubricating Oil: BLT Origin

¨ 11. Suction valve: Sweden Atlas Origin

¨ 12. Pressure valve: HoerbigerAustria Origin

¨ 13. PLC: Schneider Electric France Origin

¨ 14. Oil system configuration of the pipeline were chrome-plated brass

More than 80% of imported famous brand accessories

Model			BLT -7A	BLT -10A	BLT -15A	BLT -20A	BLT -25A	BLT -30A	BLT -40A

Air discharge			0.85/0.7	1.23/0.7	1.81/0.7	2.10/0.7	3.20/0.7	3.80/0.7	4.75/0.7

Pressure discharge		m ³ /min/Mpa	0.75/0.8	1.15/0.8	1.67/0.8	2.00/0.8	3.00/0.8	3.60/0.8	4.50/0.8

			_	1.03/1.0	1.47/1.0	1.80/1.0	2.70/1.0	3.20/1.0	4.25/1.0

			_	0.89/1.2	1.25/1.2	1.50/1.2	2.30/1.2	2.80/1.2	3.75/1.2

No of compression stage			Single stage compression

Cooling model			A-Air cooling W-Water cooling

Discharge temperature		C	≤ The environment temperature + 15 C (Air cooling) ≤ 40 C (Water cooling)

Noises Level		dB(A)	62 ± 2	62 ± 2	63 ± 2	65 ± 2	65 ± 2	65 ± 2	65 ± 2

Transmission mode			Belt transmission

Power supply		V/Ph/Hz	380/440/415/3/50

Motor power		kw	5.5	7.5	11	15	18.5	22	30

Starting model		Y-Starter

External dimensions	L	mm	630	950	950	950	900	900	900

	W	mm	620	650	650	650	900	900	900

	H	mm	755	855	855	855	1120	1120	1120

Weight		Kg	128	251	282	315	403	408	455

Air out pipe diameter		Inch	G3/4"	G3/4"	G3/4"	G3/4"	G 1"	G 1"	G 1"

Shanghai Zi Qi Group compressors air end has its headquarter in Germany. Its advanced technology, professional computer management system contributes to the excellent GoodAir Double Screw Air Compressor. The technology and energy consumption has achieved a new level, which can meet the European Standard. Our company always applies the advanced European design and consummate assembly technique, develop the manufacture technology and enhance the testing methods. We will provide you the best solution for air compressor system and make sure that every component has the best work condition. Therefore CoodAir Compressor applies the Original German air end and most components are world-famous brand, which makes our products well-designed and highly reliable.

We confidently believe that Shanghai Zi Qi Group is your reliable professional manufacturer for Air Compressor. We shall provide you the best Compressed Air System with our advanced technology, excellent products and services. Our products include Air & Water cooling Screw compressor, Belt & Direct Driven Screw compressor, Frequency screw compressor and Diesel Driven Portable screw compressor, Refrigeration & Adsorption air dyers, precision air filters, air tanks and screw compressor spare parts, etc. We provide high-quality Compressed Air System to make sure that the user can achieve the best productivity. The user can choose a complete Compressed Air System to meet almost every demand from our products.
