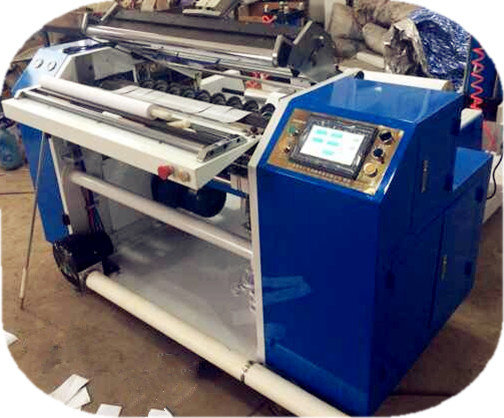

ATM paper roll slitting machine/cash register paper machinery
Application
This machine is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, NCR paper, computer bill, film and self-adhesive trademarks, etc.
Feature
1. Equipped with Japan Panasonic PLC and touch screen, all the parameters are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameter for machine running automatically.
2. Machine adopts Taiwan DELTA inverter control for multi-speed transmission.
3. Unwinder use automatic tension control.
4. Jumbo roll uplifter uses automatic double-cylinder type.
5. All driving roller are after dynamic/static treatment.
6. Machine adopts surface rewinding method. Rewind shaft connects paper without glue or adhesive tape for neat & nice outlook. It is ideal equipment for fax paper slitting.
7. Equipped with warning sign device for end roll marking.
8. Shear blade slitting with auto edge trimming device. Rewind shaft slitting size is controlled by the gasket which is adjustable upon request. (Common slitting size such as: 44mm, 57mm, 76mm, 80mm, 210mm).
9. Auto tucker and adjust material tightness.
10. Auto meter counting function, when set value is finished, the machine will auto stop.
11. Equipped with Japan NSK bearing.
12. Equipped with emergency stop device.
Main Technical Parameters
Machine width900mm
Max. Unwind O. D. 800mm
Max. Rewind O. D. 160mm
Unwind shaft76mm (3") air shaft
Rewind shaft0.5"& 1" steel shaft or special size
Slitting widthMin. 20mm
Slitting speedMax. 160m/min
Total power4.5KW
Voltage380V 50HZ 3P
Dimension(L*W*H)2.5M× 1.9M× 1.5M
Machine weight1600KG
Kunshan Furi Precision Machinery Co., Ltd. is a specialist in the design and manufacture of slitting machines, rewinding machines, automatic roll cutting machines, BOPP (scotch) tape slitting machines, automatic packing machines, etc. Our company is applied with European advanced design drawings; We are capable of designing machines with practical performance for customers with economical prices also. Each machine is subject to rigorous quality inspection and performance tests before delivery to ensure the best possible performance. Our machines have CE certificates, and also get more than 10 national patent rights. Thanks to the continuous improvements of the company, the machines have come up to world standards.
Our company is armed with a high caliber team including professional R&D technicians, sales and after-sales service personnel, Q&C staff. Adhering to the mission of "people-oriented, technology- first, integrity-centered" and creating a famous brand, our enterprise will always provide customers with top quality products and perfect service.
We would like to renew old business relationships and establish new ones. And we sincerely welcome customers both at home and abroad. Let'S join hands to create a brilliant future.
