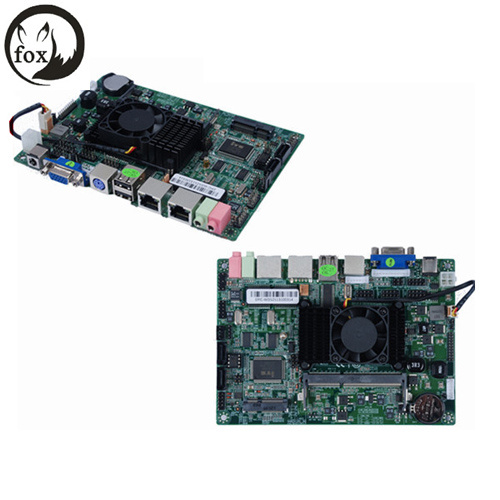

Atom D525 Epic Motherboard with VGA and Lvds

Atom D525 Epic Motherboard with VGA and Lvds
Supplier: Huizhou Dayawan Fox Etech Limited
Price: US $ 130/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF,EXW
contact supplier

Product Specifications

Prod Model: EPIC-D525-D3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Expansion Slot: 1*SIM,1*Mini-Pcie(for WiFi),1*CF
Integrated Graphics: Integrated Graphics
Main Chipset: Intel
Maximum Memory Capacity: 4G
Structure: Mini-ITX
Memory: DDR3
SATA Interface: SATA2.0
Printed Circuit Board: Four Layers
Main Board Structure: Integrated
Audio Effects: Not HiFi

Product Description

Embedded motherboard > EPIC motherboard > intel atom d525 EPIC motherboard with vga and lvds

intel atom d525 EPIC motherboard with vga and lvds


Processor

Intel ATOM D525

chipset

Intel NM10

display chip

integrated Intel GM3150

display output

VGA  internal VGA pin LVDS

memory

1*SO-DIMM,DDR3 800\667MHz Memory,maximum support 4GB

sound effect

ALC 662

NIC

2*ATl 8111E 1000M

Storage

1*SATAII

expansion slot

1*SIM  1*MINI-PCIE(for WIFI)  1*CF

USB

2*USB2.0(rear)   3*USB2.0(need expansion)

COM

4* COM(need expansion)

rear I/O interface

2*USB2.0
2*RJ-45 LAN
1*VGA
1*DC IN
1*AUDIO

internal I/O port

1* single six LVDS
1*4pin DC
2*USB2.0 pin(can expand to3)
1*GPIO pin
1*12pin VGA pin
1 * CLR_CMOS clear CMOS jumper hat
1*SATA
1*F-PANEL pin

BIOS

AMI 32M BIOS

power supply

DC-IN, internal 4pin Dc power supply

radiating system

self CPU radiating and fan

working environment

-15~60ºC;0% ~ 95% relative humidity

plate

165X115MM
Huizhou Dayawan Fox Etech Limited build in 2006, specialize in producing and selling Thin Client, Mini PC, All-In-One Computer, Embedded Computer, Industrial Motherboard and etc.

Our company's operating philosophy is "more refined, more powerful. "We always adhere to this quality policy, "the quality get market opportunities, services to win customer satisfaction, innovation promote business progress, a truth-seeking creat companies brilliant. " Pursue the eternal customer principles "credibility first, quality first and service-oriented. "

We insist on Market-oriented, technology- fundamental. In recent years, our companies get big radiation increasing in the domestic business scope, won the praise of customers, with significant achievements in the industry. Building long-term customer relations with many Middle East\European and South American companies. Rely on technological progress, we change the pressure of competition as a driving force, whick make the company's new products, new processes emerge time by time.

With the idea of "quality, service, price, " and the spirit of fighting innovation, FOX Etech LIMITED continuous self- transcendence, our company become bigger and stronger, we will provide quality services to more customers. Your satisfaction is our pursuit! We look forward to working with you to become a long-term win-win partnership!
