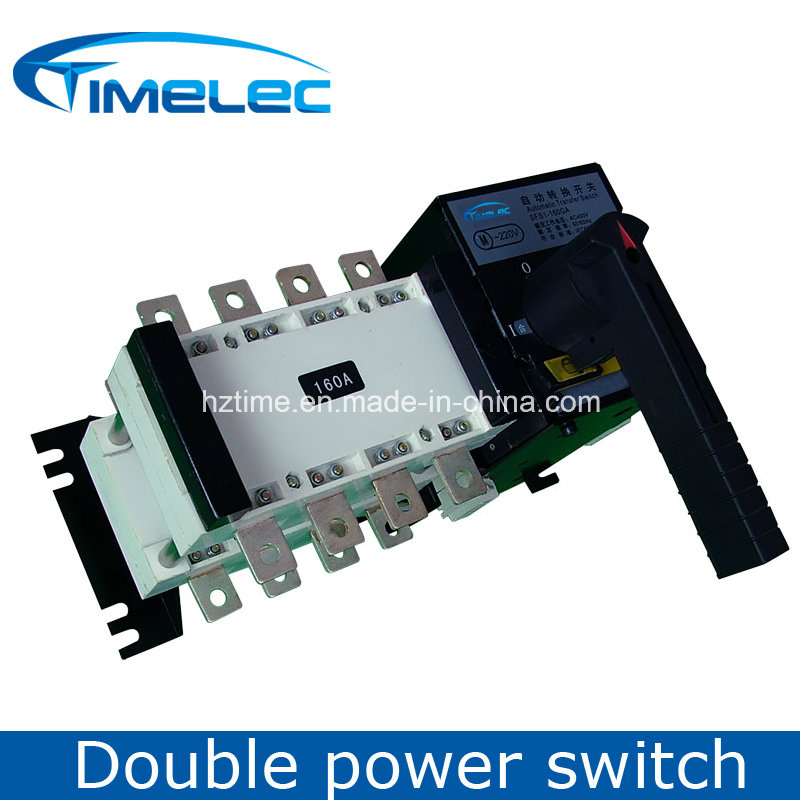

ATS Series Automatic Transfer Switch 400A

Product Specifications

Prod Model:	TMSFD-3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificates:	CE
Features:	Circuit Breaker Type
Guarantee:	2years
MOQ:	1PCS
Max. Current:	400A
Motor Voltage:	110V/220V,110V/257V
Coc:	China,Automatic Change-Over Switch
Max. Voltage:	690V
Model Number:	Tmsfs1-3200
Function:	Automatic Transfer Switch
Brand:	Timelec

Product Description

Welcome to Taimu Electrical
Change Over Switch 16A-3200A AC CB Class Automatic Transfer Switch-ats with CE/CCC/ISO9001
ATS Automatic Transfer Switch 16A to 3200A

series Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage DC 220V, Rated current 16A-3200A.

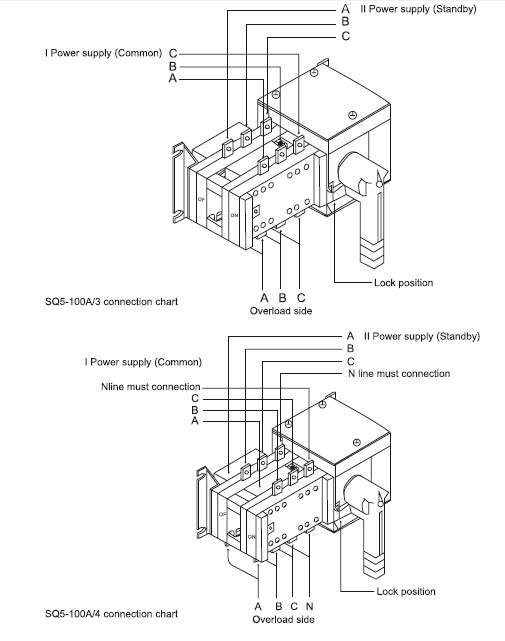

    Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.
    Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building, etc, where doesn't allow power off.

   Automatic transfer switch Main Technical Parameters: 100A-3200A

Main Technical Parameters

1.SQ5 ATS 100~1600A series automatic change-over switch electrical properties and mechanical properies

Conventional thermal current lth A 100A 160A Rated current ln(A) 20A 40A 63A 80A 100A 125A 160A Rated impulse withstand voltage Ui(A) 500 500 500 500 500 500 500 Dielectric strength(V) 5000 5000 5000 5000 5000 5000 5000 Rated surge-resistant voltage Uimp kV(installed category IV) 8 8 8 8 8 8 8 Rated Working current le(A) 380A AC-31 20 40 63 80 100 125 160 AC-33 20 32 40 63 80 125 160 AC-35 20 40 63 80 100 125 160 220A DC-31 20 40 63 80 100 125 160 DC-33 20 32 40 63 80 100 125 DC-35 20 40 63 80 100 125 160 Motor power P(380V)kW 10 20 25 30 32 60 80 Rated short-time withstand current(kA Rms)0.1S/1S 9/5 9/5 9/5 9/5 9/5 20/10 20/10 Rated breaking capbility(A Rms)AC33 380V 160 320 500 640 800 1000 1000 Rated making capability(A Rms)AC33 380V 200 400 630 800 1000 1250 1250 Rated short-current making capability lcm(kA peak value) 8 8 10 10 10 12 12 Mechanical durability(number of cyclic operation) 8000 8000 8000 8000 8000 5000 5000 Electric durability COSφ=0.65 AC33 1500 1500 1500 1500 1500 1000 1000 Change-oner time I-0-II or II-0-I (s) I-0 or II-0 (s) 0.5 0.3 0.5 0.3 0.5 0.3 0.5 0.3 0.5 0.3 1.0 0.6 1.0 0.6 Power wer consumption of electrical control 24V(DC)(w) 50 50 50 50 50 75 75 220V(AC)(w) 50 50 50 50 50 75 75 Moment of operation(Nm) 15 15 15 15 15 22 22 Weight(kg) 3poles           8.2 8.2 4poles 4.2 4.3 4.4 4.5 4.5 8.7 8.7

Conventional thermal current lth A				250A		630A		1600A				3200A
Rated current ln(A)				200A	250A	400A	630A	800A	1000A	1250A	1600A	2000A	2000A	3200A
Rated impulse withstand voltage Ui(A)				500	500	500	500	500	500	500	500	500	500	500
Dielectric strength(V)				5000	5000	8000	8000	10000	10000	10000	10000	10000	10000	10000
Rated surge-resistant voltage Uimp kV(installed category IV)				8	8	12	12	12	12	12	12	12	12	12
Rated Working current le(A)		380A	AC-31	200	250	400	630	800	1000	1250	1600	2000	2500	3200
			AC-33	200	250	340	536	800	1000	1000	1600	1250	1250	1250
			AC-35	200	250	400	630	800	1000	1250	1600	2000	2000	2500
		220A	DC-31	200	250	400	630	800	1000	1250	1600
			DC-33	160	200	315	500
			DC-35	200	250	400	500	800	1000	1250	1600
Motor power P(380V)kW				100	132	220	280
Rated short-time withstand current(kA Rms)0.1S/1S				25/12	25/12	40/20	50/25	90/50	90/50	90/50	90/50	90/50	90/50	95/50
Rated breaking capbility(A Rms)AC33 380V				1600	1600	3200	3200	6400	8000	10000	12800	16000	20000	25600
Rated making capability(A Rms)AC33 380V				2000	2000	4000	4000	8000	10000	12500	16000	20000	25000	32000
Rated short-current making capability lcm(kA peak value)				17	17	30	30
Mechanical durability(number of cyclic operation)				5000	5000	4000	4000	2500	2500	2500	2500	1500	1500	1500
Electric durability	COSφ=0.65 AC33			1000	1000	500	500	500	500	500	500	300	300	300
Change-oner time	I-0-II  II-0-I (s) I-0  II-0 (s)			1.1 0.7	1.1 0.7	1.2 0.8	1.2 0.8	1.2 0.8	1.2 0.8	1.2 0.8	1.2 0.8	2.4 1.6	2.4 1.6	2.4 1.6
Power wer consumption of electrical control	24V(DC)(w)			75	75	90	90	90	90	90	90	120	120	120
	220V(AC)(w)			75	75	90	90	90	90	90	90	120	120	120
Moment of operation(Nm)				30	30	45	45	55	55	55	60	95	95	95
Weight(kg)	3poles			10.4	10.4	17.8	19	28	31	31	34
	4poles			11.3	11.3	20.2	22	32	36	40	49	98	98	135

Product Description

 Automatic transfer switch Performance and Characteristic
1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute);
2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch, it makes more reliable and safety.
3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage.
4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise, little wallop
5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying.
6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working reliable and not interference.
7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload
8, High security, high automatization, high retiablility, use life more than 8000times


About US:

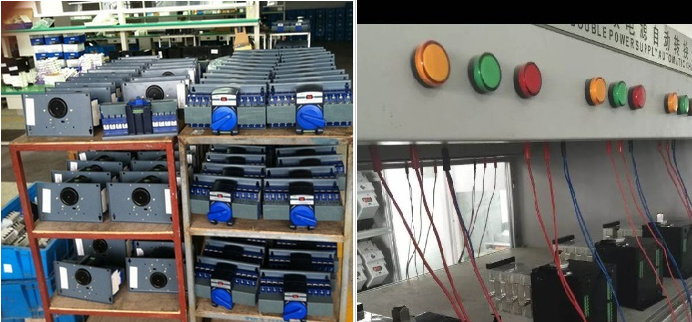

Hangzhou Taimu Electrical Co., Ltd specializing in the R&D, manufacture and sale of low voltage electric applicants, such as MCB, MCCB, RCCB, Indicators,AC contactors and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
