Product Specifications
| Prod Model: |
CHHGC608 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Load: |
800kg |
| Engine Model: |
L28 |
| Rated Power: |
20kw |
| Bucket Capacity: |
0.5m3 |
| Unloading Height: |
2300mm |
| Dimension: |
4000*1600*2380 |
| Loader Clearance Radius: |
3000mm |
| Wheel Base: |
1985mm |
| Wheel Tread: |
1235mm |
| Operationg Weight: |
2000kg |
| Type: |
Small Loader |
| Certification: |
ISO9001: 2000 |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Load And Unload Method: |
Front Discharge |
Product Description

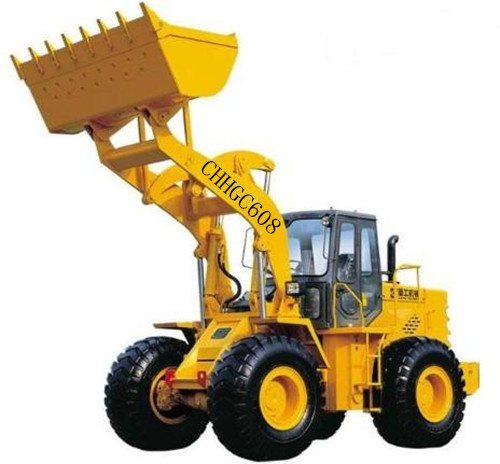

Attactive loader
| Item | CHHGC608 |
| (Engine Model) | L28 |
| (Rated power) | 20 kw |
| (Rated speed) | 2200r/min |
| Data |
| (Bucket capacity) | 0.5m³ |
| (Rated load) | 800kg |
| (Raising time)(Full load) | ≤4.5s |
| (The sum of three items) | ≤9s |
| ( Unloading height) | 2300mm |
| (Max. digging force) | ≥28KN |
| ( Distance acc.to the height) | 750mm |
| Dimension |
|
| (Overall length) | 4000mm |
| (Overall width) | 1600 mm |
| (Overall height) | 2380mm |
| ( Loader clearance radius) | 3000mm |
| ( Min Base to the ground ) | 230mm |
| (Wheel base) | 1985mm |
| (Wheel tread) | 1235mm |
| ( Drive Means) | Four-wheel Drive |
(Operating weight)
| 2000kg |
(This product can under option,etc)
drums clip, log fork ,snow bucket, quick-change unit, screening bucket, and so on. |
Features
1. The CHHGC608 wheel loader uses the branded diesel engine as power, so it has the advantages of easy start, less oil consumption, strong power and environmental protection.
2. Using the dedicated engineering axles, the machine can make improvement for integral mechanical gearboxes, dual steering cylinders and so on, and can facilitate the operation.
3. The wheel loader uses the branded big-flow hydraulic pumps and steering gear. The hoisting arms, direction change and so on take less time and the work efficiency is greatly increased through its matching with the diesel engine.
4. With 24V battery (dual battery), the wheel loader will have an easy start in winter.
5. Its branded and high-quality rubber tire is far better for long-time operations in various environments.
6. The wheel loader employs the high-articulated structure (the distance between upper and lower hinge plates is short and the turning radius is small) to further stabilize the driving operation.
7. Featuring unique appearance, the cab of the wheel loader has a large operating space and wide vision so the machine achieves much safer operation.
8. The wheel loader has anoverhauled cover that is easy for maintenance.
