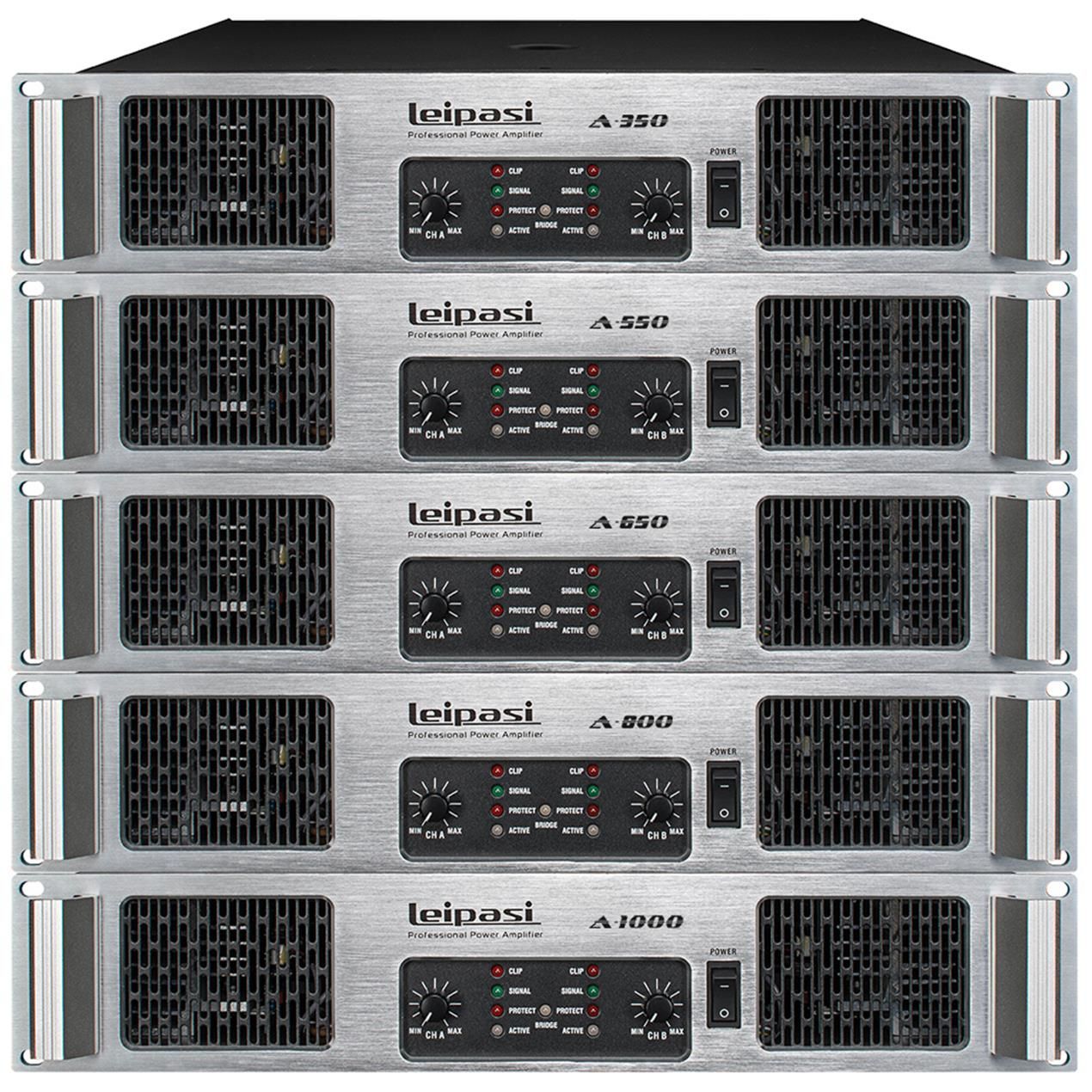

Audio Amplifier Class H Circuit a Series

Name: Audio Amplifier Class H Circuit a Series
Brand: china-manufacturer-directory.com
SKU: 776002475
Availability: InStock
Rating: 4.5 (83 reviews)

Supplier:	Leipasi Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	A-800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Watt:	800
Transistor:	28 Pieces
Type:	Professional Amplifier
Usage:	KTV System
Used For:	Professional
Tube Type:	Transistor Amplifier
Function:	Post Amplifier
Voltage:	AC 220V
Sound Channel:	2
Output Number:	2
Conductive Mode:	H

Product Description

Audio Amplifier Class H Circuit a Series

Features
1.A series power amplifier have used a variety of new technologies,it has a soft sound

2.Reliable protection ,like over current,over voltage,over temperature,overload,DC and VHF and so on.

3.Less heating and interference.

Model	A-350	A-550	A-650	A-800	A-1000
Stereo power 8Ω	2x350W	2x550W	2x650W	2x800W	2x1000W
Stereo power 4Ω	2x650W	2x800W	2x1050W	2x1300W	2x1750W
Stereo power 2Ω	2x700W	2x1100W	2x1300W	2x1600W	2x2000W
8Ω BLT	1000W	1650W	1950W	2400W	3000W
4Ω BLT	1300W	2050W	2600W	3200W	3600W
Frequency Response	5-20K+/-0.5dB
THD+N	<0.05%@8Ω 1KHz 1/4Po
S/N Ratio	>94dB	>97dB	>98dB	>100dB	>102dB
Slew Ration	22V/u S	23V/u S	28V/u S	32V/u S	33V/u S
Damping Factor	>400
Crosstalk	>60dB@8Ω 1KHz
Input Impedance	20KΩ(Balance)/10KΩ(Unbalance)
Input Sensitivity	0.8V/1.6V
Height	2U
Gross Weight	21KG	22KG	26KG	28KG	30KG
Packing Dimensions	575x570x158mm

Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.

Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.

We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.

There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.

OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.

It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
