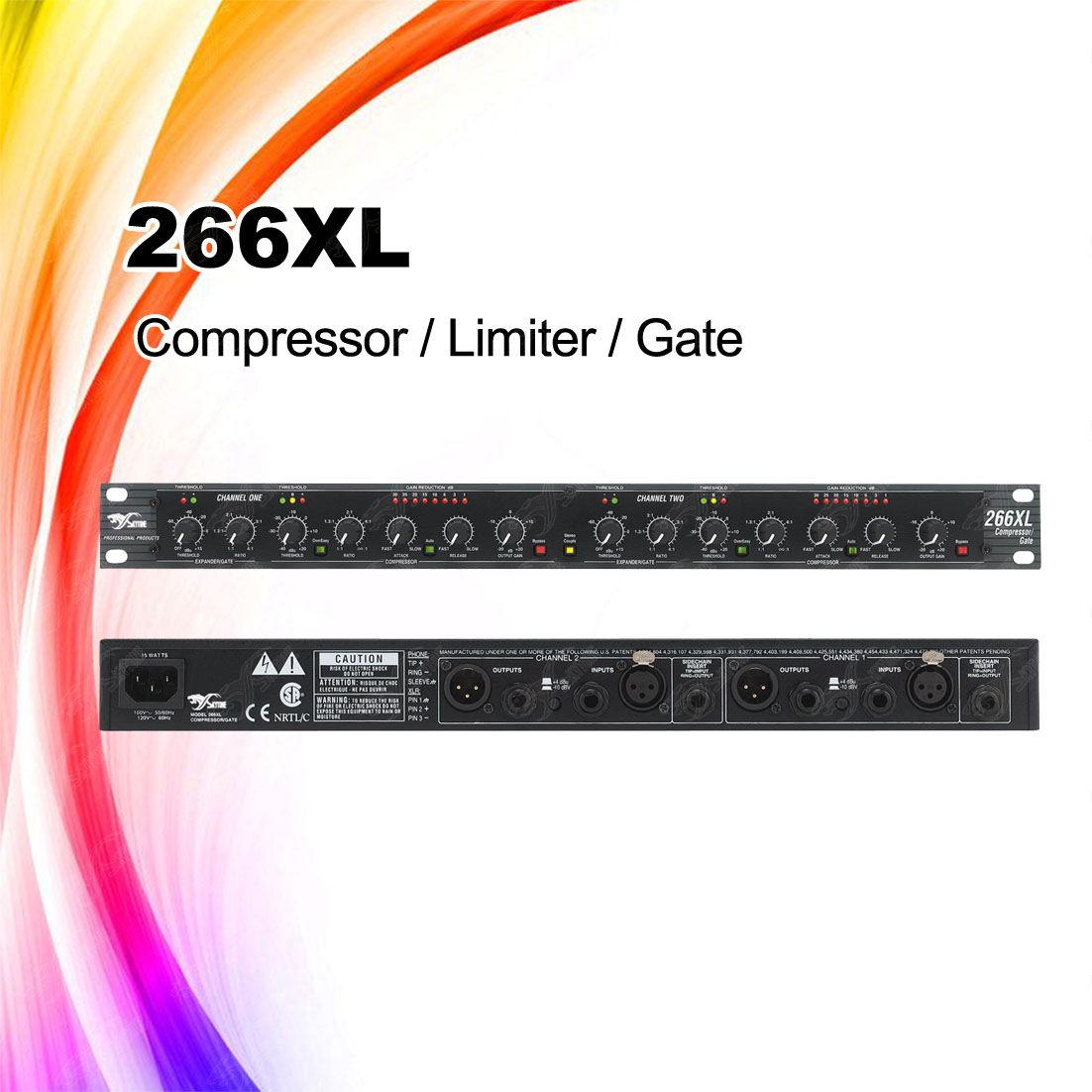

Audio Compressor, Dbx Compressor 266xl

Product Specifications

Prod Model:	266xl
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Compressor/Gate
Application:	Home
Certification:	CE

Product Description

Dbx 266xl style compressor/limiter
Audio compressor/limiter


The 266xl processor is the result of an intensive engineering and product development effort aimed at taking advantage of the latest and best advances in manufacturing technology to deliver true dbx audio performance and reliability to our customers at the lowest possible cost.The 266xl puts a completely new level of compressor/gate performance within everyone's reach.

Features:

--goof proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
--new gate timing algorithms ensure the smoothest release characteristics
--program-adaptive expander/gates
--great sounding dynamics control for any type of program material
--separate precision led displays for gain reduction, compression threshold and gate threshold allow quick, --accurate setup
--stereo or dual-mode operation
--balanced inputs and outputs on 1/4" trs and xlr
--side chain insert
--classic dbx "auto" mode


266xl specifications:
Input connectors	1/4" trs and xlr, floating balanced;Xlr:Pin 2 hot phone:Tip hot hi
Input impedance	40kω balanced/unbalanced
Max input	+22dbu
Cmrr	>40db (any frequency)
Sidechain	1/4" trs phone, normalled:Ring = output (send);Tip = input (return)
Sidechain impedance	>10kω
Sidechain output impedance	≤2kω
Sidechain max input level	+21dbu
Output connectors	1/4" trs phone and xlr floating balanced, xlr:Pin 2 and tip hi
Output impedance	200ω balanced, 100ω unbalanced
Max output	+21dbu into 600ω
Frequency response	Flat:20hz-20khz, +0, -0.5db
Noise	<-93dbu unweighted
Thd+noise	Typically <0.2%;Any amount of compression @1khz
Imd	Typically <0.2% smpte
Compressor threshold range	-40dbu to +20dbu
Compressor threshold characteristic	Selectable overeasy® or hard knee
Compressor ratio	1:1 to infinity:1
Compressor attack time	Scalable program-dependent
Compressor release time	Scalable program-dependent
Expander/gate threshold range	-60 to +10db
Expander/gate ratio	1:1 to 4:1
Expander/gate max depth	>60db
Expander/gate attack time	<100µs
Expander/gate release time	Adjustable, 30ms to 3sec (to 30db attenuation)
Limiter threshold range	0dbu to +20dbu
Gain adjustment range	Variable;-20db to +20db
Interchannel crosstalk	<-93db @ 1khz
Dynamic range	>114 db, unweighted
Stereo coupling	True rms power summing™
Power consumption	15 watts maximum
Dimensions	1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm)
Unit weight	5 lbs (2.3 kg)
Shipping weight	7 lbs (3.2 kg)
Reference	0dbu = 0.775vrms
