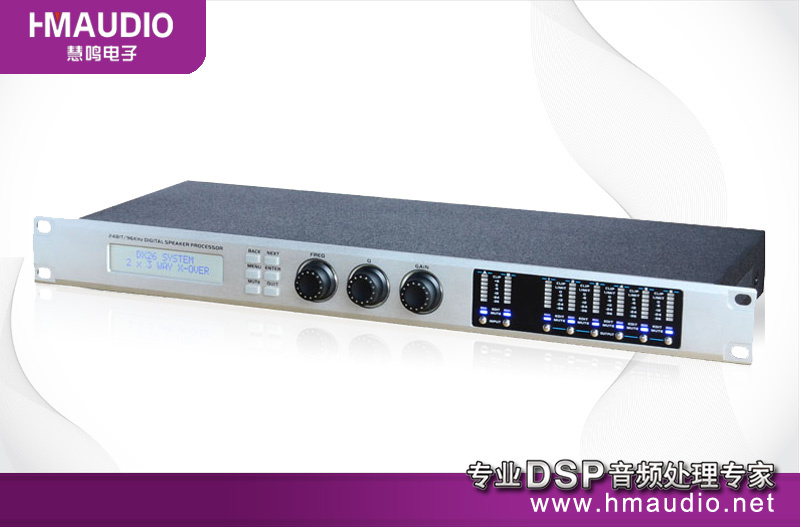

Audio Processor DX-26

Name: Audio Processor DX-26
Brand: china-manufacturer-directory.com
SKU: 681173115
Availability: InStock
Rating: 4.4 (144 reviews)

Supplier:	Huiming Electronic Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DX-26
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
THD:	<0.005%
Noise:	<95dB

Product Description

Features

*96kHz sampling rate, 24 bit AD/DA conversion. 32 bit DSP chip processor;
* With PC operating software, USB, RS232 port for real-time remote control;
* Use 4-way balanced inputs, 8 balanced outputs.
* The 'Next, Back'key may function unit (front or back), the system 'MENU' key can be call-out, the 'ENTER' key is used to confirm option, the 'QUIT' key is used to Esc-menu; The 'MUTE' key is used to control all channel mute function. The 'FREQ, Q, GAIN' key are used to adjust parameters all processor units
* Input processor part includes mute. Gain 6 band patametric EQ. Phase, delay & etc processor units
* Output processor section includes mute. Phase gain, delay, frequency, 6 parametric EQ limiter, sound chose, channel etc processor units
* Input & output channel parameters can be freely copied

Technical Parameter
P/N		DAP2040	DAP2060
Input/Output channel		2Input/4Output	2Input/6Output
Each Input channel	Mute	√
	Delay	adj range0-1000ms
	Poalr	In phase(+) & reversed phase( -)
	EQ	6 Band PEQ (FREQ): 20Hz-20KHz, Total: 239 point Band wirth: 0.05oct-3oct, Step: 0.05oct Gain: ± 20dB Step: 0.1dB
Output channel	Mute	√
	MIX	Each input channel can be selected to each output channel.
	Gain	adj range: ± 12dB step: 0.1dB
	Delay	Each input channel has delay control, adj range: 0-1000ms.
	Poalr	In phase(+) & reversed phase( -)
	EQ	Each output channel has 6 band EQ, 3 Modes: PEQ/Lo-shelf/Hi-shelf
	Frequency	LPF, HPF, (PF Mode): Linkwitz-Riley/Bessel/Butterworth, (FREQ): 20Hz-20KHz, Total: 239 point (Slop): 12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct
	Limier	Gate Level: ± 20dBμ , Step: 0.05dBμ Start time: 03ms-100ms, < 1ms, Step: 0.1ms: > 1ms. Step: 1ms Release time: Release time can be set as twice, 2/4/6/8/16/32times.
port		Input: XLR Output: XLR
Parameter		255MHz, 96KHz sampling freq, 24 bit AD/DA conversion. 32 bit DSP chip processor
Display		2X24 LCD , 8-LED Input/Output level, Mute & mode can be displayed
Input impedance		Balance 20 KΩ
Output impedance		Balance 100 Ω
Mock		> 70dB(1KHz)
Input range		≤ +15dBu
Frequency		20Hz-20KHz(0~-0.5dB)
S/N		> 105dB
THD		< 0.01% (OUTPUT=0dBu/1KHz)
Separation		> 80dB(1KHz)
PC		Back has 1 port R232.
RMS		≤ 30W
Power		AC 200V/240V 50Hz/60Hz
Weight	NET Weight	2.7KG
	TotalWeight	3.3KG
Dimensions (WHD)	Unit Dimensions	48018048MM
	Pack Dimensions	500253103MM

Since 1999 Huimig Electronic Technology Co., Ltd. Has been manufacturing DSP processor professional audio & karaoke system. In digital audio DSP treatment effect has development & production experience & many variety of DSP audio solutions. Our team has committde itself to the development & production with every possible effort toward top quality, customer satisfaction, quick delivery & good service.

HM adopts production management systems & advanced production technologies. We're the best OEM/ODM business partner.
