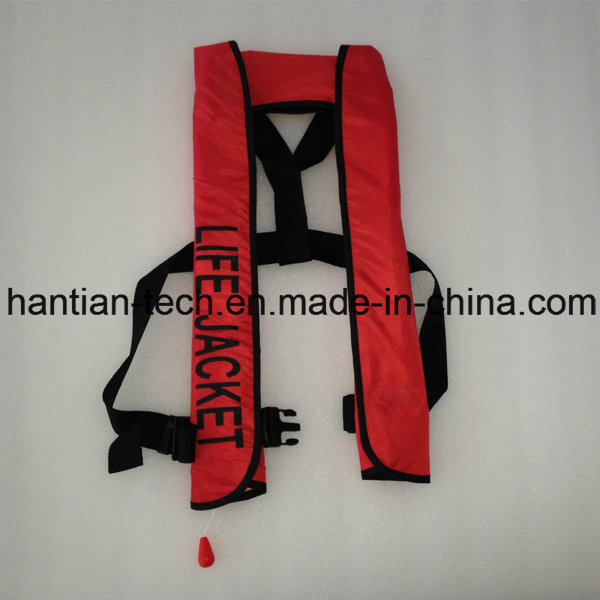

Auto and Manual 150n Single Air Chamber Lifejacket Approval by Ec (0511)
Product Specifications
| Prod Model: |
0511 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red, Blue |
| Weight: |
<1.0kg |
| Usage: |
Fishing and Water Sport |
| Type: |
Life Vest |
| Certification: |
GL/EC |
| Material: |
Nylon and Tpy Coating |
Product Description
![]()
Model No. |
Specification |
Inflation method |
Buoyancy |
CO2
CO2 weight |
ZHGQYT-0511
|
Single air chamber |
/Automatic |
≥150N |
33g |
|
![]()
Single air chamber lifejacket characteristics and main technical parameters:
Characteristics:Single air chamber lifejacket is designed and produced according to European Standard EN396/A1:1998 and relevant requirements of MSC.81(70).It consists of one air chamber which be made of TPU nylon composite material,automatic(or manual)inflation device, CO2 cylinder,oral inflation tube and outer cover etc.In emergent situation when falling into water,it can be inflated by the automatic inflation device within five seconds or by manually pulling the toggle so as to ensure safety of the drowning people.It has the advantages of small volume, light weight,comfortable to wear,easy to use, It's suitable for offshore operation personnel 's lifesaving use.It's also used as personal protective sportswear.0511 and 0521 are CE approved by Germanischer Lloyd AG and (T)ZD is approved by China Classification Society(CCS).(T)ZD-I is designed especially for fisherman and it is approved by Register of Fishing Vessel of the People's Republic of China.
![]()
Main technical parameters:
1)Weight:≤1kg ;
2)Angle in water:face plane angle≥40°;trunk angle≥30°;
3)Freeboard≥120mm;
4)inflation time≤5S;
5)Float duration≥24h;
6)Buoyancy loss after 24h≤5;
7)Ambient temperature for use:-30ºC~+65ºC;
8)Validity:3 years.
Ningbo Hantian Technology Co., Ltd.Is professional manufacturer and exporter, importer of supplying all kinds of rubber parts and lifesaving parts of ship, and other related ship equipment.We make sourcing for customers, with cooperated with many long history factories in China.We manufacture all sorts of spare parts againest rubber material like rubber airbag, ship fender;Glass reinforced plastic material like life boat, rescue boat, hardware parts like shackles, chains, valves, flashlight and headlamps.Besides, we offer firefighting parts, emergency protective clothes, and other small parts relative to sea area.
Some of our suppliers have long history here, with years of developing;They already become leading manufacturers & supplier of related spare parts in marine time industry.
Ningbo Hantian Technology Co., Ltd.Have been improving its technical capability in line with the requirements of ongoing projects and those for which the company is up for.
There have been workshop, testing/measurement system and equipment investments for the material application and control, force analyzing fields, computer aid design and field application.
Our products almost have obtained approval certifcate of CCS, ABS, NK, BV, DNV.
We specially assigned staff keeps a close dynamic follow-up on our end user and acquires their feedback in time.
Our technical team consiss of dozen of well-experienced professional staff, including senior expert & consultant at ship re-conditioning.
Our professional technicians will provide you a comprehensive technology support all the year.
