Product Specifications
| Prod Model: |
MR5D30B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

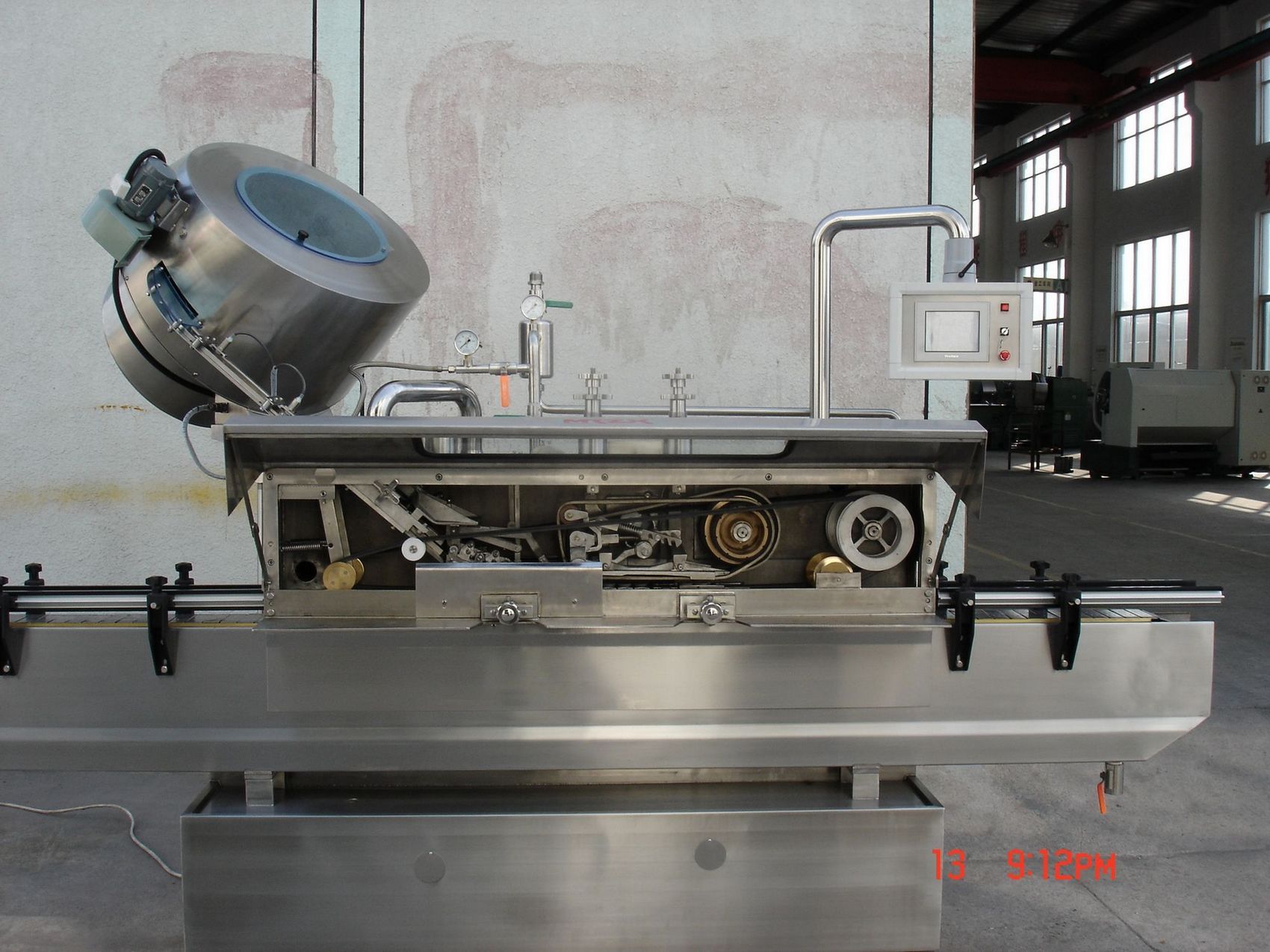

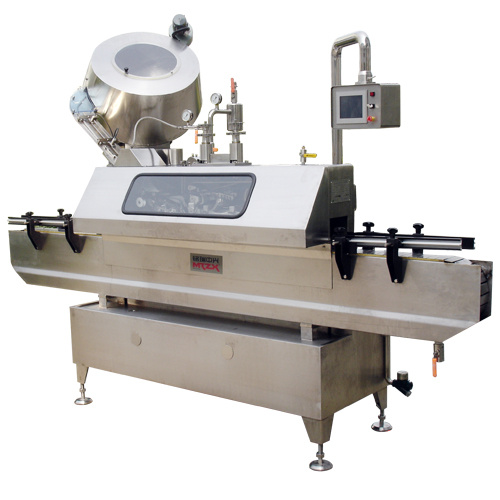

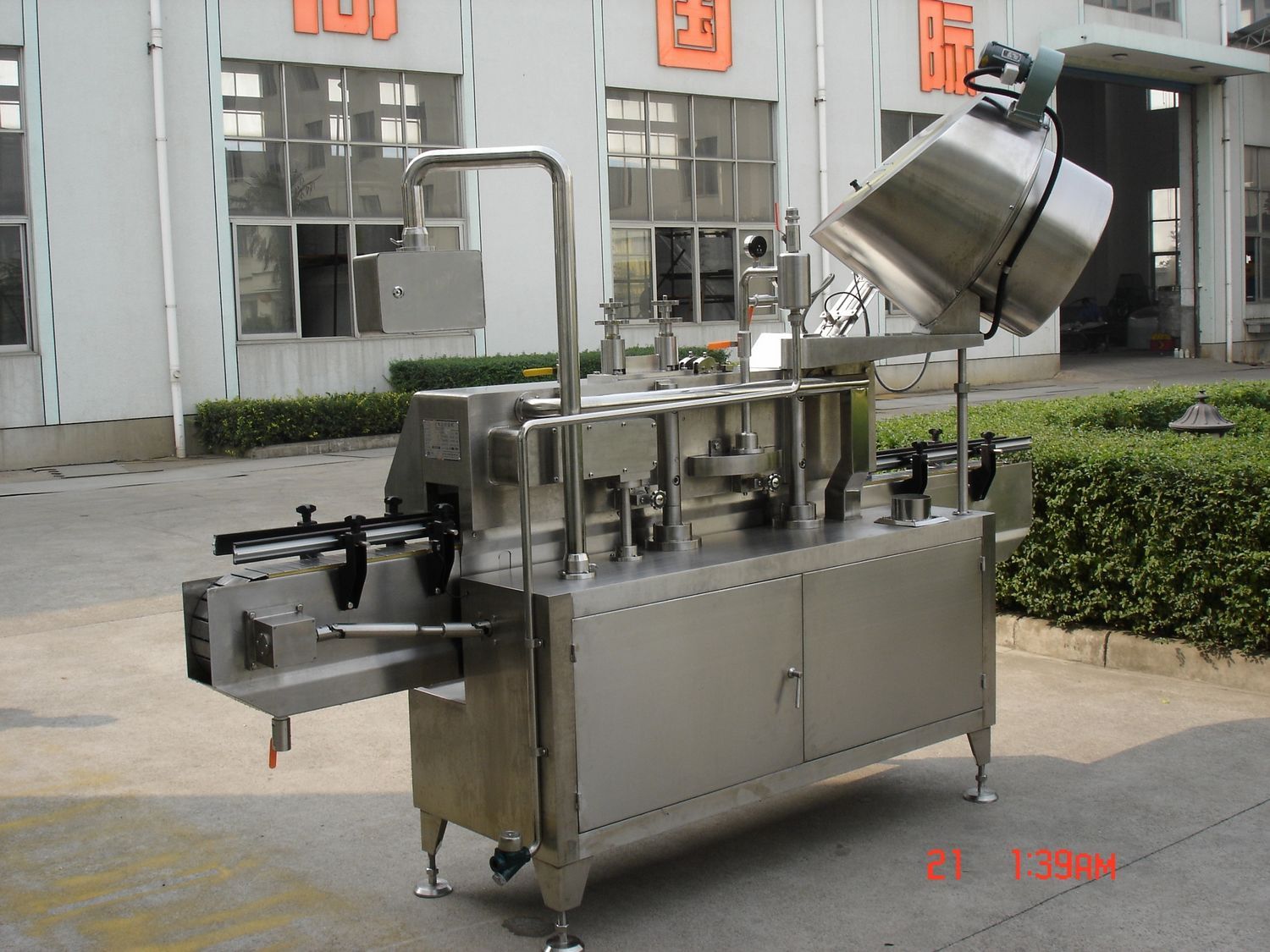

Capping Machine/ Glass Jar Capper/Metal capper (White capper)
Twist-off vacuum capping machine is suitable for glass bottle sealing with steam exhausting.
The capping machine is equipped with frequency converter, steam exhausting and mechanical sealing device for complete function and high automation. The capping machine is used to vacuum sealing for full range of three or four screw caps of seasoning, vegetable, bean curd, juice and jam etc. The capping machine is adjustable, no need to change parts for different size of caps.
Main Products: Packaging Machine/Auto Capping Machine/Capper/Juice Packaging Machine/Bottling Machine/Automatic Screw Packaging Machine/Capper Machine/Bottling Line/Automatic Packaging Machinery/Juice Machine
|
Model |
MR5D30B |
MR5D30D |
|
Capacity |
80-150B/min Free Regulation Bottle And Cap |
|
Closure Types |
Three twist cover, Four twist cover, Six twist cover & Pressing twist cover |
with button control instead of PLC |
|
Cap/Jar Diameter |
30-90mm |
30-90mm |
|
Bottle/Jar Diameter |
30-100mm |
30-100mm |
|
Bottle Height |
65-260mm |
65-260mm |
|
Motor Power |
3.12kw |
3.12kw |
|
Steam Consumption |
180-230kg/h |
180-230kg/h |
|
Steam Pressure |
0.4MPa |
0.4MPa |
|
Max. Vacuum Degree |
67kPa(502mmHg) |
67kPa(502mmHg) |
|
Weight |
1100kg |
1100kg |
|
Outer Dimension(Length× Width× High) |
3000× 1100× 2000mm |
3000× 1100× 2000mm |
