Product Specifications
| Prod Model: |
MBD-R200H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network Apn: |
Auto Configure and Manual Configure |
| Connection: |
Auto Mode |
| Type: |
Wireless |
| Transfer Rate: |
7.2Mbps |
| Firewall: |
Firewall |
| Ports: |
≤4 |
| Port Structure: |
Modular |
| Application: |
Enterprise |
| Network: |
Lte |
Product Description

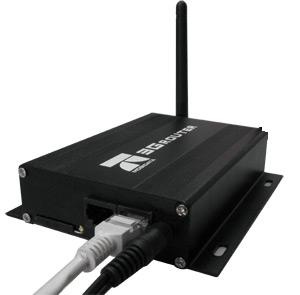

1, SIM slot*1, LAN*2, removable 3G antenna
2, 3.5dB antenna with 1.5ms~3ms extension cable
3, Metal housing design with mounting pad
4, Temperature Working: -30º C~ 70º C, Storage: -40º C~80º C
5, Power consumption < 0.67 Watt
6, Extendable 64M flash, 256M RAM
7, 400 MHz MIPS CPU core
8, Qualcomm MDM 6290 based industrial HSUPA module
9, HSUPA, HSDPA, UMTS, EDGE, GPRS network phrase
10, 7.2Mbps DL and 5.76Mbps UL
11, Network locking and searching mode setting
12, Port forwarding, DHCP, Firewall, MAC/IP filter, URL blocking
13, LED indication
14, UMTS 850/1900/2100MHz, GSM 850/900/1800/1900MHz
15, DC 12V via power adapter
16, D / W: 110*80*26mm / 300g
17, Update by LAN connection
18, Network APN auto mode and custom mode
19, Auto connection and re-connection
20, Auto resetting and recovery
21, System reboot Auto mode support
22, connection log and system log
23, Telnet and web login
24, Virtual server, DMZ host,
25, Power supply DC6V~60V
26, Router settings back up function
