Product Specifications
| Prod Model: |
ADV-I |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

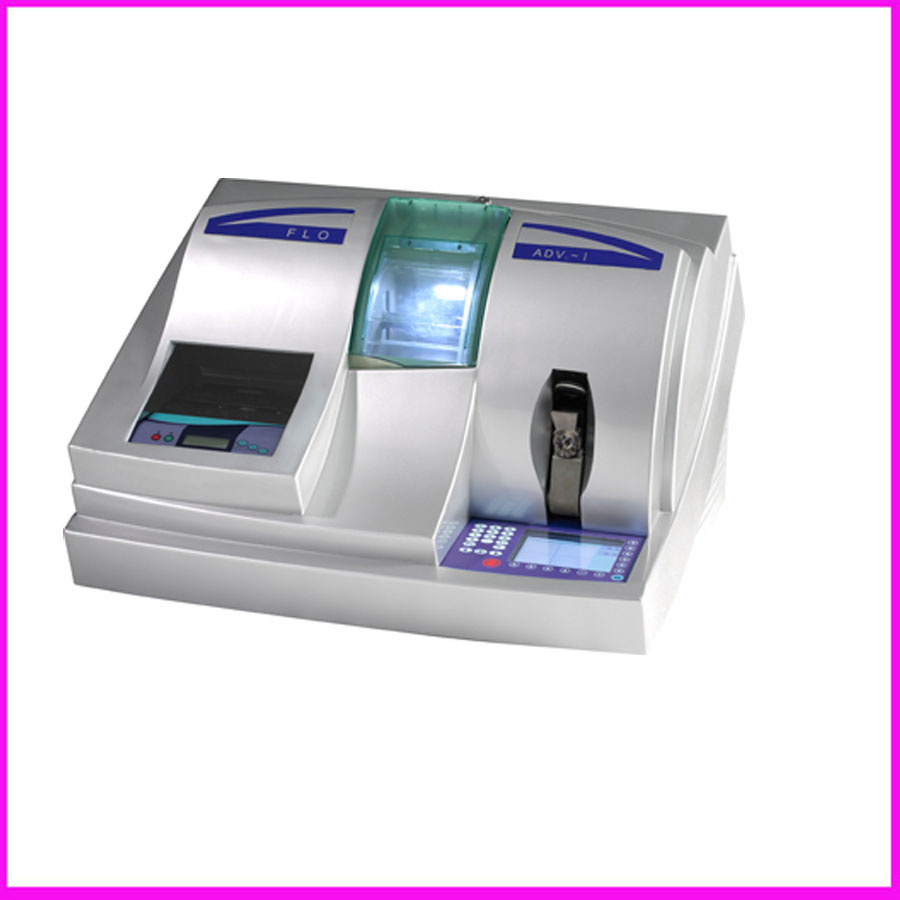

China patternless Auto lens edgerADV-II ,this model is with auto grooving function,
ADV-I this model is without ato grooving function.
Others same.
There are Glass rough grinding wheel, PC rough grindign whee, Bevel and rimless finishing fine grinding wheel, Bevel and rimless finishing buffing wheels.
There are the functions: Scan frames, automatic grinding, made centering.
Main Feature: Grinding wheel configuration and its functionsGlass rough grinding wheelPC rough grinding wheelBevel and rimless finishing fine grinding wheelsBevel and rimless finishing buffing wheelsAutomatic press-suckingGraphic storagebifocal lens making softwareGraphic rotating and editingProgressive Additional Lens editingSoftware update Scanner:
SELF CHECKING
Self compensation of lens
Scanning all kinds of lens, any ship of template or sample lens
Automatically 3D scanning
Auto matically measurement of lens bending
Scanning of lens diameter
Maximum:80MM,
Minimum:21mm
Blocking:
Standered operation jinterface for operator.
Color LED
Control of screen contrast and color turn over
Choosing of grinding wheel.
Rough edging: glas of Rosin lens PC lens.
Finishing edging:control of shape(the top table bending bevelling.
Most after depend table bending bevelling,one half bevelling,bevelling of base bendign according to the lens frame, rimless, polishing, safty bevelling,grooving.
Display of graph number.
Acetabular of optical center.
Automatically blocking
Accurat precision with acetabular pad
Input accuracy of PD or pupil height(0.1mm)
PD:Horizontal millimetric decentration,monocular pupil distance, binocular pupil distance.
Pupil height:Difference of pupil height Boxing mode of pupil height ,Mix mode of pupil height.
Technical data:
Diameter of processing lens MAX:80mm
Minimum for rimless:17.75mm
Minimum for bevelling:19.90mm
Drain pipe diameter :100mm
Water pressure:4-7pa
Width:660mm
Deepth:620mm
Height: when the observing cover is shuted:430mm, when the observing cover is open:520mm
Weight:70KG.
Voltage:220V/50Hz 110V/60Hz
Power consumption:1000W
Installation type:11
Room temperation:1
3ºC to 35ºC.
Relativelly humidity:10% to 80%Heighest water pressure:7paPower output of pump:220V/50Hz 110V/60HzAvailable power of the mump:200WFuse of auto lens edger :220V 15A,3A, 8A The following is the video of the ADV-II Auto lens edger.http://v.youku.com/v_show/id_XNDY5OTAxODA0.html
