Product Specifications
| Prod Model: |
FA-6100K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

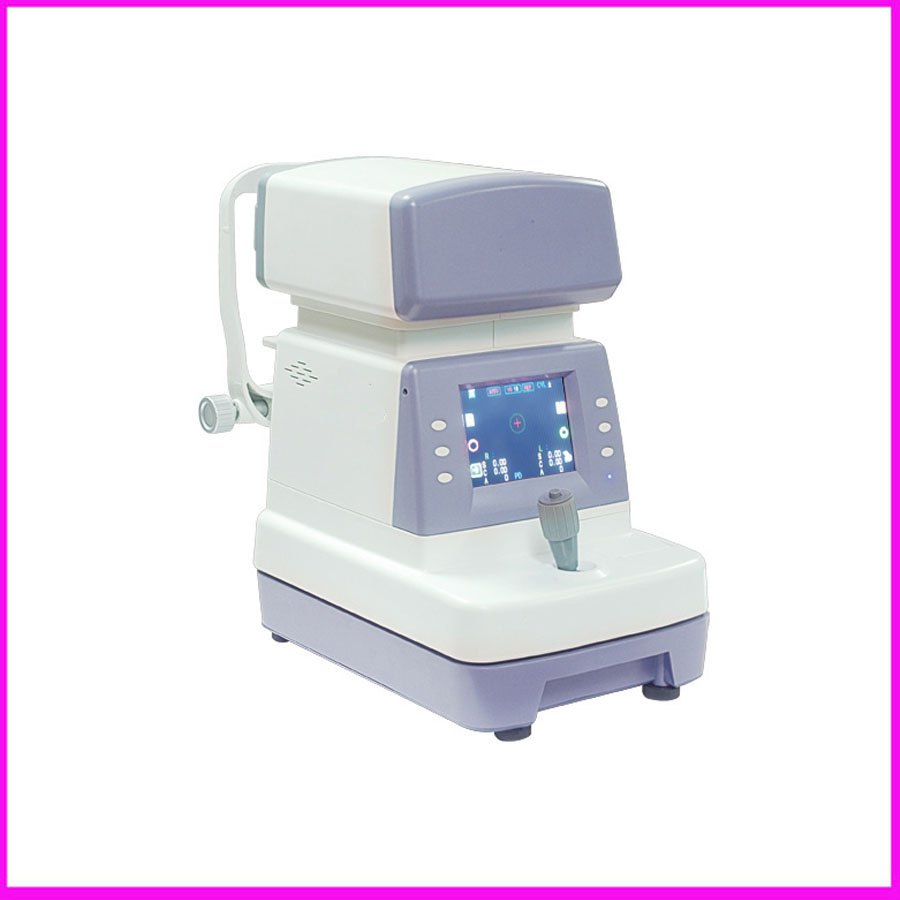

Auto ref/keractometer
Fast measurement
Steady and accurate
5.7"LCD color display
Auto fog
. Using the ARM processor and the latest domestic image processing, the system is fast and the image is clear.
. Japan's mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment, more precise measurements
. Light rack with integral casting, CNC machining, measuring system is more stable, good consistency
. Color LCD display, 5.7 inches man-machine interface is more comfortable
. PD Automatic measurement function, automatically PD value
. One key lock function, quickly locking mobile platforms
. Innovative designs, accord with the structure of human body engineering, to bring customers good aesthetic feeling and comfortable
.
Measurement mode |
K/R mode |
Refractive and Keratometer measurement. |
REF mode |
Refractive measurement |
KEF mode |
Corneal curvature measurement |
Refractive measurement |
Vertex Distance |
0.0,12.0,13.75,15.0 mm |
Sphere |
-20.00~+20.00D
(0.12/0.25D step)(VD=12mm) |
Cylinder |
0.00~±10.00D (0.12/0.25D step) |
Axis |
1°~180°(1° step) |
Pupil Distance |
30~85 mm |
Min. pupil diameter measurable |
2.0mm |
Target |
Automatic fogging target |
Corneal curvature measurement |
Radius of curvature |
5~10mm(0.01mmstep) |
Corneal Refraction |
33.00~67.00D(0.12/0.25Dstep) |
Corneal Astigmatism |
0.00~-15.00D(0.12/0.25Dstep) |
Angle of corneal |
1°~180°(1°step) |
Corneal diameter |
2.0~12.00mm |
Hardware specification |
Monitor |
5.7 inch Color LCD |
Printer |
Fast thermal printer |
Power saving function |
OFF, 5, 15 mins (selectable) |
Power supply |
AC110~220 V,50/60HZ |
Dimensions/weight |
288(W)*500(D)*480(H)mm/14kg |
Nanjing Redsun Optical Co., Ltd. is a professional manufacturer and distributors in the field of optical lens and ophthalmic instruments. Our company locates in the beautiful city of Nanjing in Jiangsu province. Nanjing is only 300km from Shanghai, Nanjing is the center of politics, economy, culture of Jiangsu. There wre 6 dynasty capitals in Nanjing city.
We gained good reputation among our customers and partners both at home and abroad. We not only provide our own products but also promote other high-quality goods to our cusotmers. Gradually, we acted as a "purchaser" for our customers. By this way, we help customers to save their time and take quality inspection. "Price, Quality, Delivery, Service" is our key to success. Due to our experience and decade's business relations, we save our cost from raw material, which leads to a competitive price of our final products.
Our workers consider factory as their home. They have high enthusiasm to work, which enable our factory to have a high output. We have our inspecton department who check the final products once finished. We ensure all the goods delivered to customers is subjected to their requirements. We provide after-sales service to every customer. We will follow up their special request and devote to satisfying their need. Customers are not only customers but also our friends. How to help our customers to do larger business is what we are always concerning. When customers have large development and more profits, we believe our company is closer to success.
We will keep carrying out our good policy and make more friends. We are sincerely hoping to build up a long term business relations with our old and new customers from home and abroad. If you want to know more information about our company and our products, please do not hesitate to contact us.
