Product Specifications

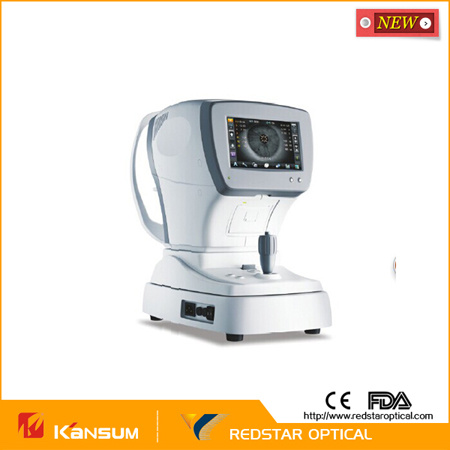

Product Description
Features:
1. Automatic focusing and tracking.
2. The chin rest can move up and down automatically by touch screen or button.
3. Easy operation and fast measurement.
4. Tilt screen function that allows wide variance of access whether the operator is sitting or standing.
Specifications:
Range of measurement:
1. Sphere:-20~+20D (VD=12) 0.125D step
2. Cylinder:-8 ~+8D 0.125D step
3. Axis:0~180° 1° step
4. PD:45-88mm, 1mm step
5. VD:0mm, 12mm, 13.75mm
6. Min Pupil Size:¢2.0 mm
Keratometery
1. Radious of curvature: 5.0~10mm (increment: 0.01mm)
2. Corneal power: 33.75~67.50D(when corner equivaient refractive index is 1.337) (increment selectable from 0.12, 0.25D)
3. Corneal astigmatism: 0.0~8.00D(increment selectable from 0.12,0.25D)
4. Axis: 1~180° (increment 1°)
5. Corneal diameter:2.0~14.0mm(increment: 0.1mm)
6. Memory: 10 measure value for each right and left eye
Others:
1. Chart: Follow-up colorful fogging chart system
2. Display: 7'' TFT LCD
3. Print: Thermal printer
We Redstar Optical are dealing with optical instruments, ophthalmic equipments since 2001. And our products covers a huge range items, such as Lensmeter, Lens Edger, PD Meter, Auto Chart Projector, Auto Ref/keratometer, Slit Lamp, Keratometer And so on. Our own brand "Kansum" is widely recognized and accepted by the market.
