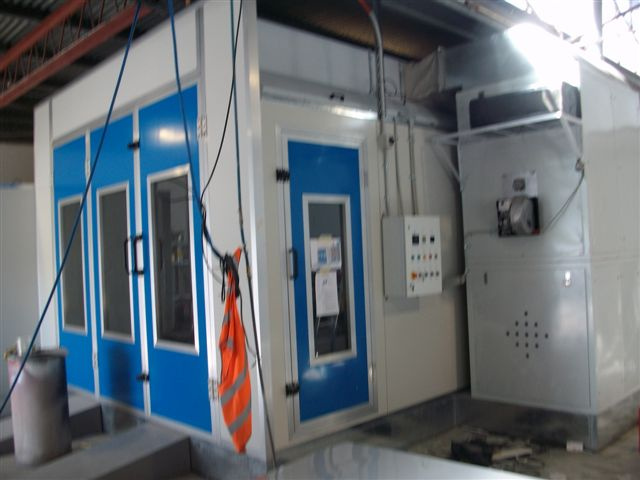

Auto Spray Booth with CE

Name: Auto Spray Booth with CE
Brand: China-Manufacturer-Directory.com
SKU: 685775232
Availability: InStock
Rating: 4.8 (46 reviews)

Supplier:	Qingdao Hua Yushun Commercial Co., Ltd.
Price:	US $ 7600-11800/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CE qualified
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inside Dimension:	6900X4000X2600mm(Lxwxh)
Outside Dimension:	7000X5550X3250mm(Lxwxh)
Main Door:	3-Fold, 2700X2500mm(Wxh)
Personal Door:	1-Fold, 650X1800mm(Wxh)
Wall Panel:	50mm EPS Panel with 0.5mm Steel
Basement And Floor:	2 Rows Grilles, 3 Rows Diamond Plate
Lighting System:	32PCS Ceiling Lights
Intake Fan:	1X7.5kw Turbo Fan
Heating System:	Italian Riellog20 Diesel Burner
Total Power:	12kw
Certification:	SGS
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Captain

Product Description

Detailed Product Description
Auto Care Painting, Baking, Polish Down Draft Spray Booth with Italian Riello burner G20
Stainless steel heat exchanger Auto Spray Booths for car repair, painting, baking
Automobile Maintenance Baking, Drying, Auto Spray Booths And Repair Painting Room

Spray Booth Specifications
1. German Technology
2. Spray booth professional manufacturer
3. Competitive price and assure quality
4. CE approved

Inside Dimension	6900X4000X2600MM(LXWXH)
Outside Dimension	7000X5550X3250MM(LXWXH)
Main door	3-fold, 2700X2500MM(WXH) with heat insulation glass window, aluminum alloy door frame
Personal door	1-fold, 650X1800MM(WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit
Booth System	Wall panel :Rock Wool material, tongue and groove interlock construction, hickness: 50mm, 0.6mm steel plate
Booth System	Basement and floor:complete steel assemble, 2 rows of grids, 2 rows of indented plates, galvanized. 2pcs of galvanized ramps, loading capacity of galvanized grating is 650 kg/wheel
Lighting System	Ceiling light: 4Pcs X8units=32PcsX36W, OSRAM Lamp, with electronic ballasts
Glass	All window and light cover by ovenproof toughened glass
Generator setting type	Back upper intake air, back upper exhaust air, aluminum alloy frame, coated steel
Ventilation System	Intake fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive, air capacity:25000m3/h
Heating system	Italian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional)
Heating system	SUS304 Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 90% heat exchanging rate
Filter system	Prefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter), floor filter, exhaust active carbon filter
Control system	Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm, limited-temperature device, most of electrical spare part is import, C.E standard
Total power	12KW

Packaging & Delivery

Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish

Delivery Detail: To effect shipment within 7 days after deposit

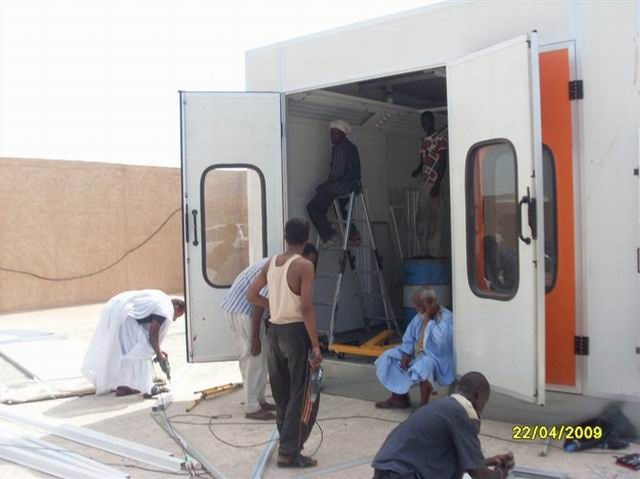

pictures to show our projects on abroad:
