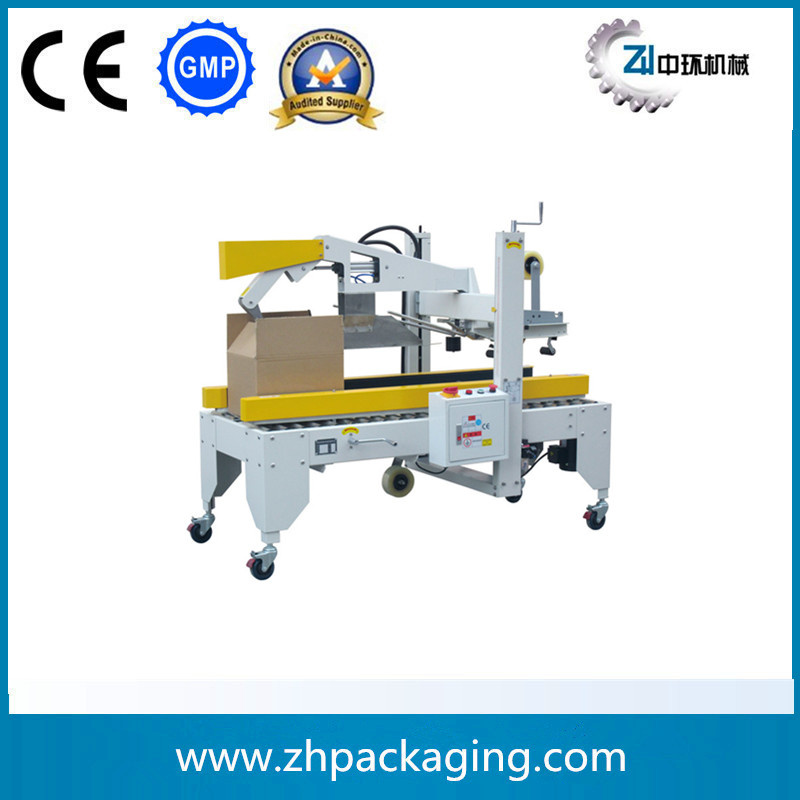

Carton sealer (GPC-50)
Left & right belts driven
Carton top & bottom tape
Sealer with auto flaps folding function
Manually adjust the sealing width and height.
It's widely used in foodstuff, cosmetics pharmaceuticals industries.
Configuration:
Driven motor from Taiwan;
Conveying belts from Italy;
With an Emergency stop button;
2'' & 3'' heads both are suitable for this machine;
Separate contribution box;
SK-12 cutter;
Reset button;
Relay control system;
Double fuse protection system.
Options:
Stainless steel version;
Machine conveys in the opposite direction.
Safety door with "door opened, machine stops" function;
Different voltage requirements;
Gluing machine
Printing machine;
Different machine colors;
Can connect GPK-40 case erecting machine
|
Production speed |
0-20ctns/min |
|
Carton size(mm) |
200-600( L)x150-500(W)x150-500(H) |
|
Power supply |
220/110V, 1, 50HZ |
|
Power |
400w |
|
Adhesive tape width |
48/60/75MM |
|
Machine dimension |
1770mm(L)x850mm(W)x1520mm(H) |
|
Machine weight |
250KG |
Wenzhou Zhonghuan Packaging Machine Co., Ltd is the professional equipment manufacturer to keep researching and developing the packing machinery for every type of liquid, powder, cream/ointment, fluid and half-fluid etc. Materials. The main products range from ordinary pressure filling machine, computer controlled liquid filling machine to powder serial automatically volume-measuring packing machine and inline capping machine, rotary capping machine and labeling machine, bottle unscrambler, screw capping machine, tube filling and sealing machine, cartoning machine and other Packaging equipments.
So far we have more than 100 domestic customers and more than 400 foreign customers. The quality of our machines and our service as well as our integrity is acclaimed both in China and abroad. We will carry forward the spirit of "integrated innovation, and perseverance, " discipline ourselves to be the first, and provide better and more perfect service for our new and old customers with enthusiasm and a new attitude.
Top-ranking product quality and highly effective and efficient After-Sales Service, refine the excellent product of "ZHONGHUAN". The products have a great demand in domestic and oversea market, and it is our permanent topic and sincere promise to customers to keep improving high, developing and satisfying customer and meeting market's demand.
