Autoclave AAC Construction Machinery for Building Block Making Machine

Company Profile:

Lingtong Brick machine exported to Central Asia, South America, Africa, Southeast Asia and the Middle East. In addition, Lingtong has set up an overseas customer service center in Russia, thus an internationalized Lingtong Heavy Industry is initially formed.


Capacity:

50000m3 - 600000m3 /year

AAC Construction Machinery  for Building Block Making Machine


1.Introduction

China famous brand building block making machine,concrete block plant ,AAC Block Machine AAC blocks are made of fly ash,lime,cement,gypsum and aluminium powder,and with the procedures of crush-ing,measuring,mixing,pouring,autoclaving and cutting. it can be made into many kinds of bricks for example:600×200×100,80×80×180,240×115×53,600×200×125),AAC block has advantages of extremely light weight,excellent thermal insulation,heat insulation,energy conservation,waste recycling,convenience.As a new building material,AAC is emphatically promoted by the word,in the future,they will replace the Clay brick completely. China famous brand aac block production line supplier in China


2.Advantage of AAC block/lightweight block

(1)light weight
Areated concrete density is usually 400-700kg/m3,(according the market in produce ),same as 1/3 of clay brick and 1/5 common concrete.So use the Light brick can reduce the weight of the build more,and also reduce the beam of roof and pillar press best.then you can see,it can save the material and cost,it also fighting shaking.

(2) keeping temperature
It has many are porous,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as 1/4 or 1/5 of clay brick,so it is best materials now in the world.There are many kinds material,have lowest waste.

(3)High Strength
High pressure steam-curing autoclaving process gives AAC unmatchable strength to weight ratio, higher than even M150 concrete and far exceeds the Indian Building code requirements

(4)Cost saving
Being lightweight AAC drastically reduces the dead weight of building, resulting into reduction in steel (up to 27%) and cement (up to 20%) structural cost saving.Being 8 times the size of a clay brick, AAC wall construction involves 1/3 the joints, thus an overall mortar saving up to 66%

(5)Fireproof
Most of the major raw materials is inorganic materials, so it has good fire resistance, and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick up of 90mm walls can reach to 245 minutes fire resistance, 300mm thick up wall can reach to 520 minutes fire resistance.

(6)Sound insulation
Due to a unique porous structure, so it has a sound absorption capacity. The sound absorption capacity can reach of 10mm thick wall up to 41 db.

(7)Permeability
Result of material by the composition of many independent small pores, the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do. When used in the bathroom, the wall can be treated to interface directly paste tiles.

(8)Anti-seismic
The same building structure, improve the two seismic than the brick level.

(9)Green
Manufacturing, transportation, all use the process of pollution, to protect arable land, saving energy, is one kind of a green building material.

(10)Shortcut
It has good machinability, can be sawed, planed, drilled, nailed, and available appropriate as bonding of adhesive material, so create favorable conditions for building construction.

(11)Economies
An integrated lower cost than using more than 5% of solid clay bricks, and can increase the usable area, greatly enhance the utilization of floor space.


3. Two types of AAC block.

Cement lime fly ash style aerated block raw material proportion

name	unit	Cement lime fly ash
flash	%	65-70
cement	%	6-15
lime	%	18-25
gypsum	%	3-5
Aluminum powder paste(600kg/m3)	1/10000	8
Water & material rate		0.60-0.65
Casting system	0C	36-40
Aluminum mixing time	S	30-40


5.Cement lime Sand style aerated block raw material proportion

Name	Unit	Cement Lime Sand
Sand	%	55-65
Cement	%	10-20
Lime	%	20-30
Gypsum	%	2-3
Aluminum powder paste(600kg/m3)	1/10000	8
Water & material rate		0.65-0.75
Casting system	OC	35-38
Aluminum mixing time	S	30-40

Parts specifications (Choose by the productivity)


Second, Dosing and Pouring Measure

Measuring system is used to weigh each raw material

Raw material metering system
Controlled by electrical cabinet or cement computer-controlled system , that can achieve fully automatic batching process.

Pouring Mixer
Pouring mixer is fixed on the top of mould whose function is to mix raw materials of slurry ,cement,lime,gypsum and aluminum powder before pouring them into mould.
Specification:3.6m3,4.2m3

Casting Tank
Conveying lime,gypsum,and cement and other dry material into casting tank.

Curing Room
After pouring ,use conveyor chain push mould into curing room under temperature 50-70 degrees.the curing time would be 1.5-2hours.(according to favorable geographical condition,the step can be skipped.)

Mould box
In the aerated concrete block production ,the slurry mixed by pouring mixer poured into mould ,after maintenance in curing room , it can be cutting the areted concrete block body.mould size:4m,4.2m,4.8m,6m.


No	Specification	Corresponding Annual Output
1	4m	50,000-150,000m3/year
2	4.2m	2000,000m3/year
3	4.8m	200,000-250,000m3/year
4	6m	300,000m3/year

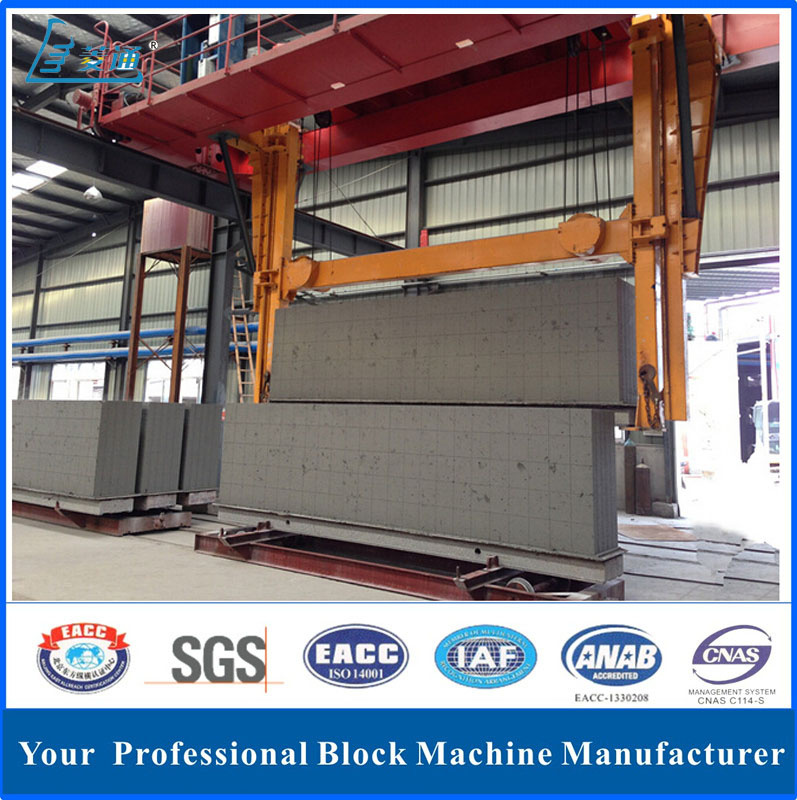

Tilting Hoister
Lift the poured and cured product together with mould and side plate up in the air ,turn it over 90 degrees to keep the block upright,carry it to the cutting cart,open mould and lift away the mould so that the semi-finished product can be out.then mount and clamp the side plate on the mould once again,turn it over 90 degrees and carry it back to the stating line so that pouring can be resumed.

Tilting Plate
After block was cut,the tilting table turns 90 degrees, and remove the waste that at the bottomof block , thereby improving the utilization of waste
