Product Specifications
| Prod Model: |
RAY-3368AM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Section Thickness Range: |
0.5~100u M |
| Type: |
Measurement Type |
Product Description

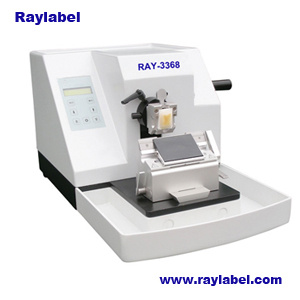

Name: RAY-3368AM Automated Microtome
Category: Computer automatic slicer
Product description:
RAY-3368AM Automated Microtome
This model is devoloped based on semi-automatic microtome, it combine advanced and patented technology, and it's very good choice for histopathology research.
This model adopt streamline design, advanced fuction, stable performance, user-friendly. Specimen feed drive is controled by intelligent control system. Manual and automated sectioning mode. Speed of sectioning can be adjusted; Emergency Stop(E-stop). Precise electrical mechanical design, Ergonomic concept.
Features:
Advanced driving systems, fuctions of section, trimming, fast forward, backward etc
LCD screen shows section and trimming thickness range, numbers of section and trimming
Section and trimming mode can be finshed by controlling systems
Handwheel can be locked at any position to assure user's safety
Large waste tray, easy to unload
Universal cassette clamp and standard specimen clamp; Emergency stop systems
Manual or fully automated section mode
Fully-automated section has two modes: Single and continuous; Speed of section can be adusted
Section and trimming mode can be exchanged easily
Emergency stop system, overload protection fuction, sleep mode protection
Emergency brake system
Technical Specifications:
Section thickness range: 0.5~100μ M
0.5~2μ M increment 0.5μ M
2~10μ M increment 1μ M
10~20μ M increment 2μ M
20~100μ M increment 5μ M
Trimming thickness range: 1~600μ M
1~10μ M increment 1μ M
10~20μ M increment 2μ M
20~100μ M increment 10μ M
100~600μ M increment 50μ M
Minimum setting value: 0.5μ M
Object feed: 28mm
Vertical stroke: 60mm
Specimen retraction range: 20μ M
Specimen clamp rotated at an angle of 360 degrees.
Maximum specimen size: 50 x 50mm
Precision error: ± 5%
Working Voltage: AC220V 50Hz / AC110V 60Hz
Power Draw: 150VA
Dimension: 580x360x310mm
Net weight: 35kg
