Product Specifications
| Prod Model: |
LC-120UV-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation: |
Automatic |
| Printing Color: |
3 |
| Power: |
380V |
| Standard Printing Diameter: |
20-100mm(Can Be Customized) |
| Printing Speed: |
3600PCS/H |
| Color & Page: |
Multi-Colour Printing Press |
| Structure: |
Rotary Printing Press |
| Style: |
Screen-process Printing Press |
| Type: |
Automatic Screen Printing Machine |

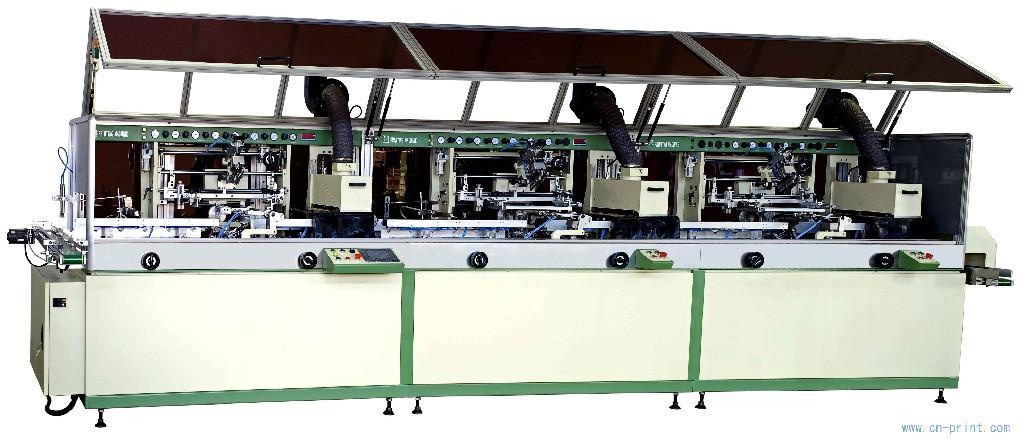

Product Description
This auto printing press system is specially used for printing different patterns on the objects with round shape or oval shape. As it is made up of several individual units to form a printing chain, it can be used for the purpose of one-color printing. The materials to be printed can be plastic, glass, ceramics, metal, etc
Feature
1. Round/oval product printing
2. Automatic feeding by conveyer
3. Flame treatmentfor PP/PE bottle
3. Pre-positioning for round/oval product
4.5. "no product, no printing"by electro-sensor
5. Printing speed: 4000-5000 PCS/hr
6. Fast adjustment, easy operation
7. Precise printing, easy and fast adjustment.
Parameter
1. Model No: LCB-120UV-3
2. Printing Color: 3
3. Min printing diameter: Round bottle: 20 mm
4. Max printing diameter of round bottle: 100 mm
5. Min printing radius of oblate bottle: 25 mm
6. Max printing radius of oblate bottle: 260 mm
7. Oblate bottle width: 20-100 mm
8. Oblate bottle thickness: 20-80 mm
9. Max printing speed: 3600 PCS/h
10. Power supply: 380V
11. Air pressure: 6 bar
12. Weight: 3200 kg
13. Max bottle printing length: 250 mm
14. Air consumption: 400 L/min
15. Wattage: 6 KW
16. Weight: 1500 KG
|
Model No |
LCB-120UV-1 |
LCB-120UV-2 |
LCB-120UV-3 |
LCB-120UV-4 |
LCB-120UV-5 |
|
Printing colors |
1 color |
2 color |
3 color |
4 color |
5 color |
|
Product appearance |
Round bottle oblate bottle |
Round bottle oblate bottle |
Round bottle oblate bottle |
Round bottle oblate bottle |
Round bottle oblate bottle |
|
Operation |
Full Auto |
Full Auto |
Full Auto |
Full Auto |
Full Auto |
|
min printing diameter round bottle |
20 mm |
20 mm |
20 mm |
20 mm |
20 mm |
|
Max printing diameter round bottle |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
|
min printing radius oblate bottle |
25mm |
25mm |
25mm |
25mm |
25mm |
|
max printing radius oblate bottle |
260mm |
260mm |
260mm |
260mm |
260mm |
|
oblate bottle width |
20-80 mm |
20-80 mm |
20-80 mm |
20-80 mm |
20-80 mm |
|
Max Printing speed |
4000-5000Pcs/Hr |
4000-5000Pcs/Hr |
4000-5000Pcs/Hr |
4000-5000Pcs/Hr |
4000-5000Pcs/Hr |
|
Power |
380V |
380V |
380V |
380V |
380V |
|
Weight |
1050kg |
2050kg |
3050kg |
4050kg |
5050kg |
Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine. We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.
With great effort and constantly exploration, now we can supply 200 various industrial printers per month. Our printing machines have been exported to more than 65 countries around the world and we also dispatch some printing engineers to give our customers technical support overseas. Our clients are satisfied with our products
We produce 8 series of printing machines with more than 30 types of screen printers, pad printers and hot stamping machines. Our main series are as follows:
(1) Full Automatic UV Screen Printer
(2) Plane/Cylinder Semi-Automatic Silk Screen Printer
(3) Manual AD Silk Screen Printer
(4) Multi-Colour Sealed Ink Cup Pad Printer
(5) Multi-Colour Open Ink Tray Pad Printer
(6) UV Curing Machine & IR Dryer Oven
(7) Hot Foil Stamping Machine
(8) Heat Transfer Printing Press
(9) Machine Equipment Pre-Post Printer
Our printing machines are widely used in the industry of plastic and hardware cosmetics case packaging, and electronic gift or toys, electronic industry, household appliance, bottle cap, stationery pen, glass, PCB board, advertising, textiles, lighting etc.
We have a professional training after sales service department, which is free to resolve your problem on installation and adjustment of the machine.
We are located in China industrial zone center, Dongguan City, only two hour's car ride from Guangzhou BAIYUNPORT. If you are interested in our products, please feel free to contact us at any time. Welcome to make a field inspection of our factory.
