Automatic All in One Cutting and Beveling Machine

Name: Automatic All in One Cutting and Beveling Machine
Brand: china-manufacturer-directory.com
SKU: 750445675
Availability: InStock
Rating: 4.5 (63 reviews)

Supplier:	Nanjing Auto Electric Co., Ltd.
Price:	US $ 200/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PCBM-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Cutting and Beveling Machine
Brand Name:	Naec
Pipe Diameter Range:	50-219
Input Voltage:	3pH AC380/415V,50/60
Input Power:	6 Kw
Max.Wall Thickness:	16mm
Blade Feeding-in Speed:	0.1mm/R
Place Of Origin:	Jiangsu / Nanjing
Application:	Machinery & Hardware
Automation:	Automatic
Type:	Cutting&Beveling All-in-One Machine
Type For Cutting Machine:	Cutting&Beveling All-in-One Machine
Type For Fold-bending Machine:	Automatic Cutting and Beveling The Same Time

Product Description

Automatic All-in-oneCutting and Beveling System

It has features as following:

1Suitable for pipes dia. ≤ 8", max. Thickness 20mm;
2. Automatic Cutting precision: + 0.5mm;
3. Automatic Cutting efficiency: 100times/8hrs;
4. One cut-off with two pipe ends beveled;
5. PLC system control with automatic self-measuring function;
6. Suitable for C. S/ S. S / Alloy Steel small pipe spool fabrication.

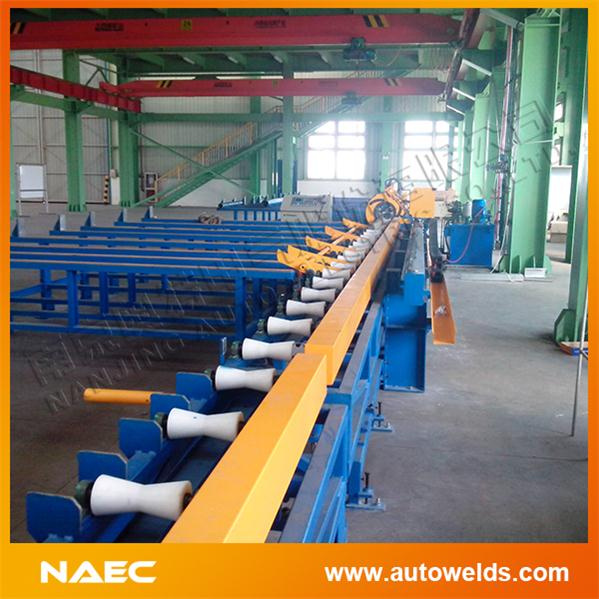

AUTO Pipe Cutting & Beveling All-in-one Machine, adopting milling principle, is capable of cutting and beveling pipe synchronically with self-measuring function and high precision. This machine has successfully solved the bottleneck problem of efficiency and quality improvement on the small/medium diameter pipe processing. Also, it can be match with our logistics system to form high-efficient pipe cutting and beveling production line.

It can be match with the following machines to form a pipeline:

Configuration:

1	Pipe Cutting& Beveling All-in-one Machine >Suitable for pipes not larger than 8",max.thickness:20mm >Cutting efficiency:100times/8hrs >PLC control with automatic measuring to guarantee the same processing cycle >Widely used for small bore C.S/S.S production lines
2	High Speed Band-saw Cutting Machine >Three models available(16"type,24"type",48"type) >PLC system control;self-measuring function with precision:±0.5mm >Using hydraulic self-centering chuck >It only takes 6 minutes to cut a 24" pipe of 25mm thickness >Widely used for C.S/S.S production lines.
3	High Speed CNC Pipe End Beveling Machine >Automatic self-centering chuck >Single V,double V,U type bevel >Can be matched with pipe end turning devic >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm) >Several models available:16",24",32",48"
4	Two / Multi- Axis CNC Flame/Plasma Cutting Machine >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe. >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type >Standard machine suitable for pipes nor larger than 24'
5	Multi-function Pipe Fitting-up Station >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up. >Light-duty type(manual) and heavy-duty type(motorized) are available. >Two models available(1"-8" type,2"-24" type)
6	Automatic Pipe Welding Station >With two welding heads >TIG/MIG/SAW are optional >PLC system control & WPS programmed >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
7	Conveyor Handling System >used for pipe convenient transporation during in pipe spool fabrication. >Its speed is adjustable between 2M to 20M/min.

NAEC---- Minimize the outdoor work, Maxmize customer's profit!
Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, etc
Reference: CCC, L&T, PEC, Rotary Engineering, Petrol Steel, JSL, etc.

For more information, please contact us, thank you!

Nanjing Auto Electric Co., Ltd (NAEC) was established in 2001, taking promoting "Lean Fabrication to Global Energy Engineering Industry" as its mission, NAEC's core business is to provide Lean-fabrication One-stop Solution to energy engineering contractors and fabricators. With advanced innovation ability and continuous integration of new technology & processes, NAEC's solution ensure its users high quality and efficient fabrication, and make itself become worldwide clients' most preferred partner.

Our Strategic Clients are

L EPC companies, Contractors or Fabricators in Onshore Oil & Gas Exploration, Transportation, Storage, Refinery & Chemical

L EPC companies, Contractors, Fabricators or Equipment Manufacturers in Offshore Oil & Gas Exploration, Treatment, Transportation & Storage

L EPC companies, Contractors or Fabricators in Nuclear Power, Wind Power, or Thermal Power

L Various Energy Engineering Equipment Manufacturers

We provide Lean-fabrication One-stop Solution for Energy Engineering EPC Companies/ Contractors/ Fabricators, Based on Following Systems:

L NAEC Lean-fabrication Mode

L NAEC Lean-fabrication Management System

L NAEC Lean-fabrication Production System

NAEC Lean-fabrication One-stop Solution can help engineering fabrication operators to solve project problems. It can organize fabrication production and ensure the final delivery in good quality and on time.
