Product Specifications
| Prod Model: |
GHALF-A6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable Material: |
Acid, Alkali, Bleach,84 Disinfectant |
| Automatic Grade: |
Automatic |
| Filling Principle: |
Atmospheric Pressure |
| Structure: |
Linear |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Volumetric Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Dosing Device: |
Plunger |
| Packaging Type: |
Bottles, Barrels, Cans |
Product Description

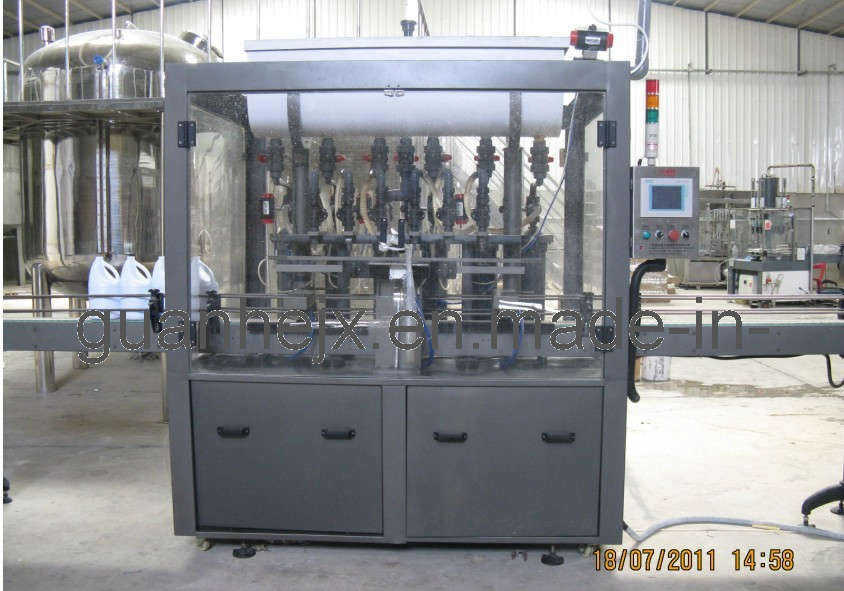

Anti-corrosive bottle filling machine for bottles with stright neck & angled neck
1. This series of anti-corrosive liquid filling machine, with piston-type filling(also can be with gravity-type) is especially developed for bottle filling of various corrosive acid & alkali liquids, like bleach, vitriol, reagent, pesticide, disinfectant ect, widely used in chemicals & pharmaceutics fields.
2. Adopting piston-type measuring pump to fill, with high filling precision. PLC system to control, with highly-automation
3. All parts contacting liquids are made of special materials, like PVC, or plated with Telflon, thus having great advantage of anti-erosion or corrosion-resistence & durability.
4. Easy to dismantal, clean & disinfect.
5. Convenient to change bottles of different sizes & filling dosage.
6. Diving-type filling;equipped with anti-drip device, ensuring no foam, no drip & no leakage.
7. Can meet different capacity equirements, ranging from 1000-5000BPH, from 10-5000ml dosage.
Item
GHALF-A4
GHALF-A8
GHALF-A12
GHALF-A16
GHALF-A20
Filling nozzle
4
8
12
16
20
Filling scope
500-5000ml(customized)
500-500ml
Idea filing range
20-100ml \50-250ml\100-500ml\200ml-1000ml\500-2500ml\1000-5000ml
capacity(100ml)
BPM
40-60
60-80
70-90
80-100
90-120(1 line)
130-160(2 line)
Filling precision
20-1000ml: ≤±1% 1000-5000ml: ≤±0.5%
Air pressure
0.4~0.6MPa
Voltage
220V 50/60Hz
Power
0.75kw
0.75kw
1.2kw
2.2kw
2.2kw
Noise
≤50dB
N.W.
500kg
800 kg
1000 kg
1300kg
1500kg
Dimension(mm)
2000×1000×1800
2500×1000×1800
3000×1000×1800
3000×1000×1800
3500×1000×1800
Guangzhou Guanhe Light Industry Machinery Co., Ltd. (originally Guangzhou Huangda Filling Machine Company) is established in 2003, in Guangzhou, Guangdong province, China. We have been developing and manufacturing the most advanced, economical and practical top-quality filling and packing machines, and the relative production lines for our customers and their different production needs.
Our main products are various liquid, paste, powder, granuals filling machines, packing machines, labeling machine, capping machine, sealing machine, washing machines and mixing machines etc. Our machines are widely used in industries like foodstuff, comestics, pharmaceuticals, drinks and chemicals fields and so on; At the same time, we have rich experience in and can provide relative key projects' Design, manufacturing and installation.
Our company boasts a team of senior engineers and many skilled workers, which makes our key R&D team and technology force be the pioneers in home filling machinery field. Our advanced technology, good quality and thoughtful after-sale service make our products warmly welcomed both home and abroad.
Attentive planning, meticulous manufacturing, proper management and sincere service are always the philosophy of our company. We have always been making every efforts to play our brand "Ghamachine" to the fullest--Pursuing Champion Quality & Achieving Win-win Harmony.
Welcome all friends home and abroad to visit us, and establish friendly and long-term cooperation relationship!
