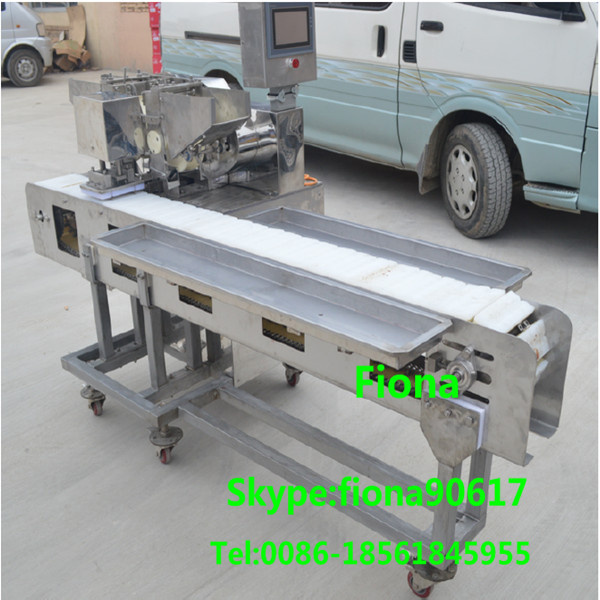

Automatic BBQ Meat Skewer Machine

Product Specifications

Prod Model:	XD-2-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Xd-2-1
Power:	1.5kw
Capacity:	2500-3000pieces/ Hour
Air Compressor:	12MPa
Dimensions:	2.5*1*1.3m
Weight:	350kg
Voltage:	220V
Customized:	Customized
Type:	Meat Skewer Machine

Product Description

Introduction:

Skewer Maching can skewer products straight even for the products which is very hard to skewer by hand.
The machine can be designed and built for certain circumstance and production capability such as number of processing skewers or length of the conveyor within a production line.


Features:
1. Controlled by PLC, conveyor operated with SERVO MOTOR, with emergency stop function (technology adopted rom Taiwan). Moulds can be easily removed and washed seperately. One PARKER PNEUMATIC is included, import from Germany.

2.This machine is suitable for all types of BBQ food, such as meat, meatballs, sausage, fruit and vegetables.

3. Most common moulds can already be used with the machine. However, if required the machine can also be easily configured for new products by fitting it with a new mould.


Technical Parameter:

model	XD3-1
voltage	220v/50hz
motor	1.5kw
capacity	3000-4500 sticks/hour
air pressure	12Mpa
weight	350kg
dimension	3000*1000*1300mm
mold	6 plate
