Automatic Benchtop AB Epoxy Glue Dispensing Machine
Common Application Range:
1. Semiconductor packaging
2. Fixing and protection of PCB electronic components
3. Packaging adhesion of LCD glass panel
4. Coating of panel of the mobile phone or dispensing of the key
5. Speaker dispensing
6. Dispensing seal of battery boxes
7. Coating of parts of vehicles and machines
8. Coating adhesion of hardware parts
9. Coating of rationed gas,liquid filling
10. Chip bonding

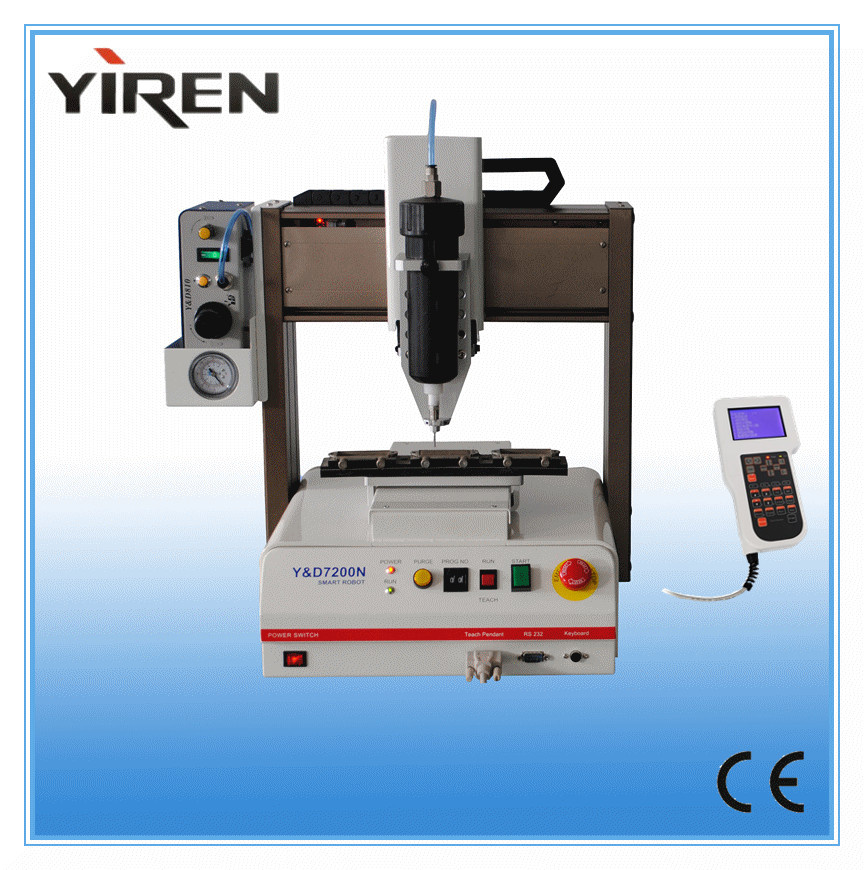

Model Y&D7200N is a compact desktop robot with a working area 200mm x 200mm x 50mm and featuring all the programming functions and memory capacity of large automated dispensing industrial robots. The Y&D7200N dispensing robot is an ideal choice when cost and bench space are important considerations. The dispensing robot can accept dispensing valves and syringes with tooling loads of 5Kg and 3Kg.
Features
Dispensing area of 200mm x 200mm x 50mm
Resolution of 0.01mm/Axis for precise dispensing
No computer skills required
Min100 Group and 4,000 points per Group
Continuous path motion for accurate XYZ dispensing
Interpolates lines or arcs for three-dimensional dispensing
Teach Pendant and (optional) PC programming
Model | Y&D7200N dispenser robot |
| OEM service | Yes |
| Certification | CE approved |
| Working range X&Y/Z | 200/200/50mm |
| Program display | Teach pendant |
| Programming method | Teach pendant LCD |
| Power supply | AC90~260V 125W |
| Working temperature | 0~40ºC |
| Working relative humidity | 20-90% no condensation |
| Dimensions | 385x380x500mm |
| Robot weight | 23kg |
| Load Y axis/ Z axis | 5kg/3kg |
| Moving speed X&Y/Z (mm/sec) | 0.1~500/350 |
| Resolution | 0.01mm/axis |
| Repetitive positioning accuracy | ±0.01mm/axis |
| Program capacity | min 100 group 4000 points/group |
| Data storage | CF card |
| Motor system | micro stepping motor |
| Control method | PTP&CP |
| Interpolation function | 3 axis |
| I/O signals port | 8 inputs/ 8 outputs |
Dongguan Yiren Industry Co., Ltd. Which is short for Y&D was founded in 2005 is a professional high-tech company providing liquid control and Automatical dispenser equipment. After 8 years' development, we have obtained a leading position based on innovation and specialty in this kind of industry in China. Also we have passed I S O 9 0 0 1 and many of our major products have got CE certificates. With efforts, Y&D gained a number of national invention patents for different machines. In order to cater for requirments of different industry, Y&D has produced and will continual to produce high quality and plactical products.
We are one of the earliest developers of application robots which are used extensively in liquid control and dispenser equipment industry today in China. Our aim is to provide complete solutions for automation of large and middle scale companies. Currently, Good quality, timely and thougtful after sale service makes us gain lots of customers all over the world. If you are looking for a professional supplier of liquid control and dispenser equipment with creativity, advanced technology and rich experience, please contact us at any time. We will provide internationally advanced products for you. We warmly welcome both domestic and abroad customers to visit our company to guide and give us some constructive suggestions.
We are looking for import agents or distributors for a long term relationship. If you are interested in us, welcome to contact us anytime.
