Automatic Beverage (Juice, Milk, Beer) Pasteurizing Tunnel Sterilizer Bpt Series
Product Specifications
| Prod Model: |
BPT series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Beverage Processing Machinery |
| Power: |
9.95 Kw |
| Dimension: |
11800*2050*1735 |
| Weight: |
5650kg |
| Composition: |
Sterilization Equipment |
| Processing Material: |
Natural Ingredients |
| Process: |
Thermal Processing |
Product Description
Product Description

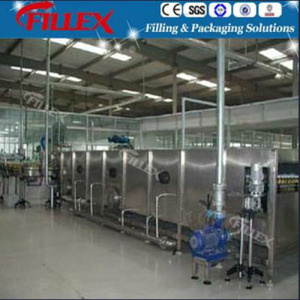

Automatic Beverage (Juice, Milk, Beer)Pasteurizing Tunnel Sterilizer BPT series
This machine is in the absorption, digestion and abroad on the basis of new design prototype made use of circulating hot water sterilization, pre-cooling cycle of warm water, and then cooling water spray cooling three paragraphs dealing with form; With the sterilization temperature control, sterilization time, stepless adjustable, etc., can be widely used in a variety of bottled, canned acidic fruit juice drinks, electrolyte drinks, wine, condiments and other products, sterilization cooling.
The machine is produced by Holland An Wan Lung polypropylene mesh belt, flat belt surface friction coefficient is small, that prevents three-piece cans, cans bottom of the scratches, belt line with food hygiene requirements and received USDA approval, equipment, machines frame used in all austenitic stainless steel exterior appearance, clean, sanitary.
*This equipment does not include the conveyor belts.
Technical Parameters
| The maximum sterilizing temperature | 100 degree |
| Sterilization Section Width | 1000mm |
| Disinfection segment length | 7000mm |
| Pre-cooling segment length | 2300mm |
| Cooling Section Length | 1200mm |
| Conveyor belt speed | 110-553mm/min |
| Circulating water | Hot water 30m3 / h heated 10m3 / h |
| Heating steam pressure | 0.4MPa |
| Equipment Total power | 9.95KW |
| Device Dimensions (including access to conveyor belt) | 11800 *2050 * 1735 (l *w*h) |
| Equipment weight | 2800kg |
| Equipment Operating Weight | 5650Kg |
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
L1-2 & 3-5 Gallon Jar Bottle Water Plant
LBottle, Kind of Container Labeling Solutions
LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
