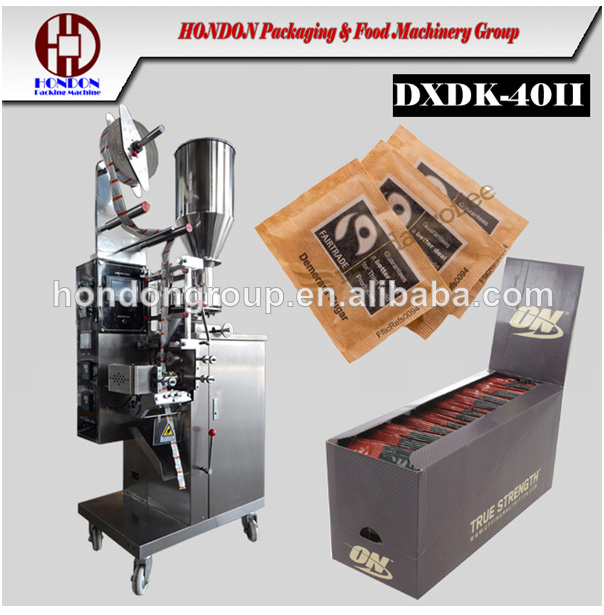

Product Specifications
| Prod Model: |
DXDK-40II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Dxdk-40II |
| Dimension: |
600X790X1780 |
| Packing Speed: |
100 Bags Per Minute |
| Bag Size: |
L: 50-150 Mm W:30-115 Mm |
| Bag Filling Range: |
1-40ml |
| Max Film Width: |
180mm |
| Power: |
220V, 1kw |
| Weight: |
250kgs |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Material Type: |
Grain |
| Applicable Industry: |
Alcohol and Tobacco |
| Application: |
Oil |
| Packaging Material: |
Plastic, Pet/Plated Al/PE, Pet/PE, Paper/PE, Nylon |
| Packaging Type: |
Stand-up Pouch, Bags, Foil, Pouch |
Product Description
1. Frequency motor
The motor is frequency motor of high speed motor instead of reduction gear box. The internal gear with steel chain system makes the whole machine running steady and speedy, keep the noise quietly and extend the service life more than 10 years. This variable frequency motor doesn't need any lubrication oil, and other advantage of this motor is power save.
2. Application
This machine is used to pack granule coffee, salt, medicines, plant seeds, sugars and many others like granule.
3. High speed
The speed can reach 100 bags per minute.
4. #304 stainless steel
The machine house is made of high quality 304 stainless steel material which is not easy to get rust. It's more healthy and meet the GMP standard.
5. Touch screen
The operation of the machine is controlled via a computerized operator interface of touch screen. Parameters are set through this interface. Bag length can be automatically controlled via a film registration eye. Precise bag length and registered cutting is assured. The touch screen can offer many languages, English, Russia, Spanish and Portuguese...Etc
6. Unique technology and craftwork
The unique technology and craftwork is used on the horizontal and vertical sealing heating system, which makes the sealed bags fantastically smooth, no any wrinkles and looks perfect.
1. Machine speed adjusted by touch screen
2. Operator interface reports all aspects of the machine operation including faults.
3. Product feed system swings out of the way to allow for easy cleaning.
4. Cut off blades are guarded for operator safety.
5. Very low noise level during operation.
6. Stainless steel outer frame.
7. No compressed air required during operation.
8. Elements are connected via slip-ring to the roller mechanisms
9. Vertical sealing rollers can be adjusted for width of sachets.
10. Spill tray under filling system to stop production contaminating machine.
11. High temperature resistant bearings used on all sealing rollers.
12. Roller tension control using temperature resistant knobs.
13. High quality door hinges and locks.
14. Electronic speed control.
15. Motor adjustment for automatic dwell time seal setting.
16. PLC touch screen.
Established in 1986, Hondon Packaging & Food Machinery Group is specialized in producing various packaging machines and food machines.
We are the first one to obtain the international certificate of ISO9001: 2000 edition in packaging line. And some of our products have obtained European countries' product certificate on the CE system.
All products are applied for the country patent in practical new-mode and out-surface design etc.
The machines are applied for the packaging of soft bags of granule, powder, sauce, tablets etc in the industry of medicine, food, daily expenses, chemical, dairy products, quick noodles condiment, tea etc.
The packaged bags are even and perfect owing to the unique design of the forming system. All the processes of bag making, measuring, filling, sealing, cutting, counting and printing can be done automatically.
The producing procedure is proceeding on the monitor of Canadian Emulation Inc. Our products are very popular in the Domestic market and exported more than 40 countries and regions, such as USA, Canada, Italy, Egypt, Turkey, Iran, Russia, Malaysia etc.
Operation in honest, leading the industry, creating fine products, famous in the industry. We provide the packaging equipment of non-standard for user, in the meantime of providing the various packing machines.
We hope to establish friendly business relations with domestic and abroad customers, create good future together.
