Product Specifications
Prod Model: |
AZ-09 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size(mm): |
1200*680*480mm |
Capacity: |
100-1000kg/H |
Net Weight: |
500kgs |
Gross Weight: |
530kgs |
Material: |
S.S |
Type: |
Carton Packaging Machinery |
Automatic Grade: |
Automatic |
Product Description

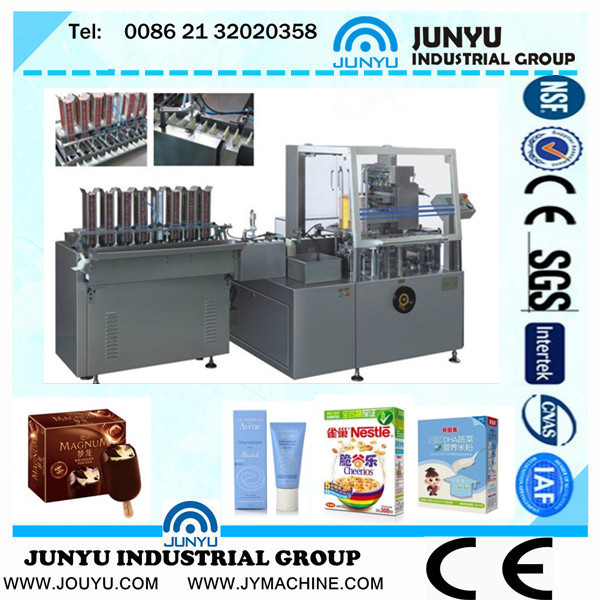

Cartoning machine
A. Specifications
1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.
B. Main Description
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished products counting.
4. Machine running without pressing if no products or incorrect position of products.
5. No products not suction leaflet, no leaflet not suction carton .
6. Automatic detection and rejection device for lacking blister goods and leaflets
7. Protecting automatically for overloading.
8. Stable performance, operation is easy.
C. Flow chart
Under box--open--filling--closing lid
D. Main technical parameter
1. Capacity: 10-15 cartoon/min
2. Table height: 800mm
3. Applicable size: (L) 300-400× (W) 300-450× (H) 100-200
4. Machine size: (L) 5260× (W) 1830× (H) 2000
5. Machine weight: 1600KG
6. Rated power: 4KW
7. Power supply: 380V 50HZ
8. Air supply: 150L/min 6Mpa
9. Hot melt adhesive: curing time 2-3 seconds, working temperature: 150-180°C
E. Other models and advantage
Speed | Specifications of the paper carton | Specifications of the manual |
60-100boxes/min | (65mm-110mm)*(45mm-90mm)*(12mm-55mm) | (110mm-160mm)*(90mm-250mm) |
Power | Total Power | Equipment dimensions |
380V.50HZ | 1.1kw | 1150mm*1120mm*1550mm |
Compressed air pressure | Compressed tolerance | Weight |
0.6Mpa | 30-90l/min | 850kg |
1. Rejection automatically if no products, nonstandard height or lack of leaflet;
2. Stop automatically if incorrect position of products into carton;
3. Stop automatically if no cartons or out of leaflets continuous;
4. Easy to change to different products;
5. Protecting automatically for overloading;
F. Accessory equipment and goods delivery
G. Product application
H. Spare parts suppliers
I. Company introduction
Shanghai Junyu Industrial Group is a High-tech enterprise on the fermentation field, is the biggest and strongest comprehensive ability supplier for solvement of fermentation project. And she is also an industrial company with the manufacturing experience more than 30 years.
Shanghai Junyu Industrial Group adopts German advanced technology and complies with domestic customers` requirements to design and manufacture equipment. The production process is superior, easy operated and simple to learn and understand.
These various food produced by the equipment are deeply adored by customers. The equipment with production capacity 1000 to 5000 per year is especially a good choice for township enterprises, verge area enterprises, personal investment for setting up plant, and updating equipment in the plants. The products have been widely sold in China and exported to Europe, America, Africa, Asia etc. Which make us good reputation from our internal and external customers !
J. Advantages of us
Our engineer: free direct the installation and operation of the equipments and train operators for customer.
Our machine: safe and reliable, efficient and energy saving, easy operating.
Our delivery: in time with English operating instruction program.
Our after-sale service: timely, professionally
K. Products professional certification
L. Pioneer and keep forging ahead with our clients
M. We always hold that in the most familiar field
