Product Specifications
| Prod Model: |
WD150A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Type: |
Automatic Wrapping Machine |
| Packaging Type: |
Bottles |
| Applicable Industry: |
Food |
| Application: |
Drinks |
Product Description
Specifications
1) Shrink Wrapping Machine
2) PLC & Touch Screen ( Mistubishi)
3) Pallet-Free Optional
4) Suitable PVC / PE Film
1. Application:

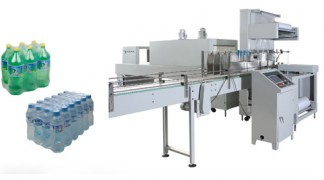

Thermal shrink packaging machine Model ST6030+SM6040 is a new type of packaging machinery capable of high-efficiency and continuous operation and designed on the basis of thermal shrinkage property of packaging film. It can automatic arrange, group, wrap with shrink film single PET beverage bottle or other similar substances, and turn into assembly package by heat shrinkage and cold setting. Products packaged in this way will be tied up firmly presenting orderly and good appearance, and will be easy to open.
2. Features:
1) Operating through touch screen with friendly interface convenient for man-machine communication and operation.
2) Pallet-free packaging adequate for package of different bottle sizes and in different combinations.
3) With automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.
4) Using advanced constant temperatire membrane heating binding technology with smooth and secure seal.
5) The quick seal cooling structure guarantee that the seal has a higher strength
6) Adopt with PLC automatic program circulation control with stable and reliable performance.
7) The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss
8) All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
Model No.
|
ST6030 ( Cutting & Packing Part)
|
SM6040 ( Shrinking part)
|
Horizontal height
|
850±50mm
|
850±50mm
|
Max Packing Size
|
L600×W300×H300mm
|
W450×H250mm
|
Capacity
|
8-18 packages/min
|
0-12m/min
|
Seal / Shrinking Time
|
0.5-1.5S
|
0-6S
|
Power & Voltage
|
1P/220V/50Hz/2KW (Customerized)
|
3P/380V/50Hz/15KW (Customerized)
|
Width of the Film
|
Max 600mm
|
Max 500mm
|
Thick of the Film
|
0.04-0.12mm
|
0.04-0.12mm
|
Bottle Specification
|
Pet or Glass bottle ≤3L
|
Air Pressure
|
Required: 0.6~0.8Mp
|
-------------
|
Package Form
|
2 × 3 or 3 × 4 or 4 × 6 (Customerized)
|
System (PLC control)
|
Film Packing &cutting system
|
Film Shrinking tunnel
|
Dimension of the machine
|
L3180×W800×H1550 mm
|
L2400×W800×H1400mm
|
Established in 1996, Shenzhen Angel Drinking Water Equipment Co., Ltd. is a specialized manufacturer of water bottling machines, RO(Reverse Osmosis) system water purification machines and water dispensers. With the support of advanced technique, highly experienced engineers and customer-oriented after sales service, we can provide water bottling machines ranging from 30BPH to 1200BPH for 3/5G plastic bottles, water bottling machines for small bottles and automatic full production lines. Meanwhile, we are able to supply RO system water purification machines from 300L/H to 30T/H.
As one of the leading manufacturers regarding water treatment (covering water dispensers) in China, we are pursuing more economic scales and building a great commercial reputation in the global market. Consequently, our products are selling well in the Canadian, French, Jordanian and Indonesian markets. Being featured PLC, easy operation, convenient maintenance, automatic process (washing/filling/capper) and more hygienic, we are advancing into the international market drastically. Moreover, our water dispensers are UL and CE certified, which helps us build long term business relationships with customers from Mexico, Ecuador, Australia, Singapore, Thailand, Brunei, Indonesia and India.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
