Product Specifications
| Prod Model: |
CIP cleaning |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clean Type: |
Clean-in-Place (Cip) |
| Cleaning Process: |
Hot Water Cleaning |
| Construction Material: |
SUS3014,SUS316L |
| Processing Procedure: |
Alkali Cleaning,Acid Cleaning,Hot Water Cleaning |
Product Description

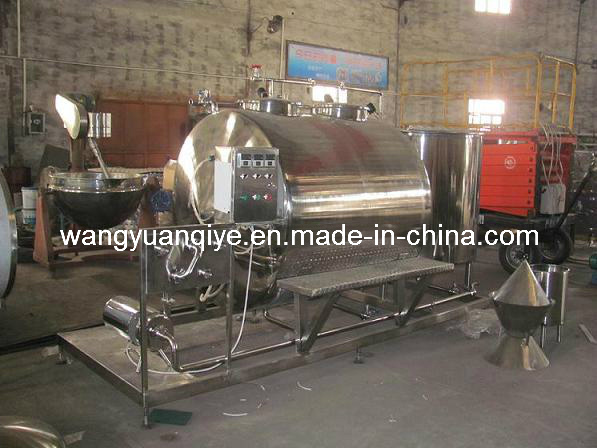

Full-Automatic CIP Cleaning Machine
CIP Cleaning system is made of high-quality SUS304 or high-precision surface polishing. Can be customized
CIP system/ CIP Cleaning system /CIP
Control: Manual/ semi-automatic / fully automatic
Cubage: Every cell in the cleaning pot have capacity of 1000L-5000L and it is different according to the total cleaning quantity.
Material: 316L/304 stainless steel or 304 stainless steel
Configure: Clean water pot, alkali liquid pot, acid liquid pot, thick acid and alkali transportation system, calefaction equipment, transportation pump, control system.
Wenzhou wanyuan food machinery factory
The below is CIP cleaning machine specification:
| Working Pressure | Inside tank: Normal Pressure, Inside Steam Pipe: 0.3-0.7Mpa |
| Working Temperature | Inside acid tank, alkaline tank, water pipe, steam pipe: 60-138ºC |
| Product Name | 2% Acid and Alkaline Liquid, 2% Nitric Acid, Caustic Soda Liquid, Steam. |
| Centrifugal Pump Flux | 10T/h |
| Max. Centrifugal Head | 35m |
| Motor Power | 2.2kw |
| Dimension(L*W*H) | 3200*1600*2000mm |
| Weight | 980kg |
Our factory specializes in producing and selling processing equipment for dairy products, beverage, brewage, meat and poultry. Our main products include automatic double-tank sterilizing boilers, electric heating sterilizing boilers, emulsifying tanks, sugar dissolving tanks, cooling and heating cylinders, concentrating boilers, seed tanks, jacketed boilers, and direct cooling tanks.
Other food equipment can also be designed and manufactured according to customer requirements. The latest digital technology has been utilized for direct conversational programming and key parts have been carried out in mechanical machining, such as drilling, cutting, milling and grinding to ensure the ultimate precision. We have powerful technical force to independently and successfully design and manufacture products, completely realizing the simple and programmable operations of consistent products. We have some experienced experts and they can provide whole services for you from initial preparation, detailed construction and after-sales technique to spare part support.
At the same time, we combine our many years' experience to meet customer requirements and solve the difficulties of equipment technology. All our stainless steel equipment have reached sanitary equipment standard, which guarantees users with completely sanitary status through our abundant strength and a good reputation. We offer customers safe and reliable products and favorable prices.
