Product Specifications
| Prod Model: |
FR-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applied For: |
Metal Bar and Rod |
| Max Od: |
30mm |
| Speed: |
20m/Min |
| Power: |
30kw |
| Appearance: |
Horizontal |
| Drawing Length: |
7m |
| Manner: |
Chain |
| Reducer: |
Zq650 |
| Entrance Height: |
830mm |
| Force: |
10t/12t |
| Type: |
Horizontal Metal Drawing Machine |
| Usage: |
Pipe/Bar |
Product Description

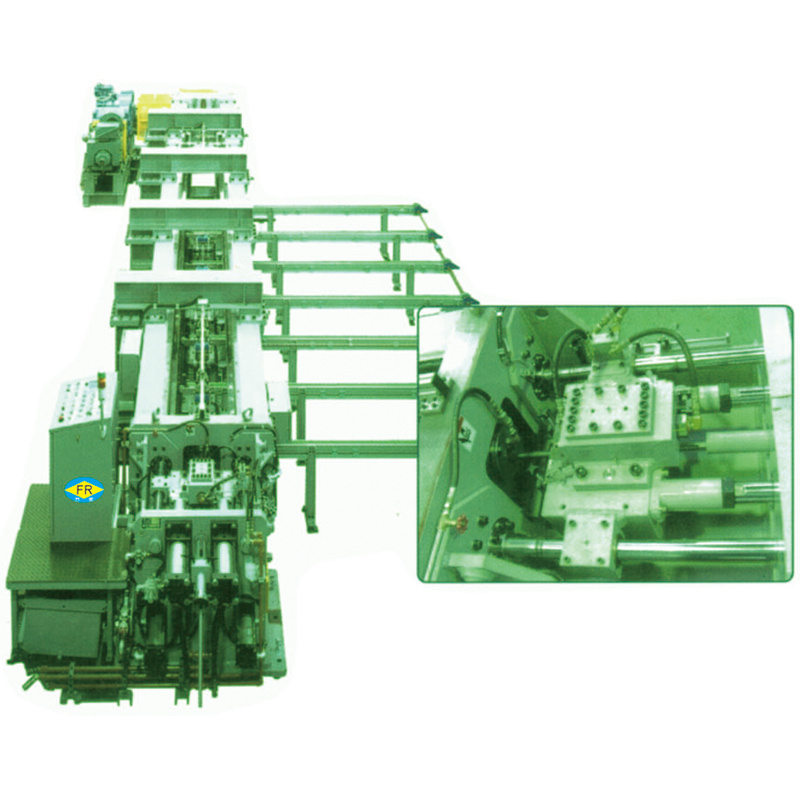

Automatic Bronze Bar Drawing Machine/Push Pointing Bar Drawing Machine (FR-30)
Automatic Bar Drawing machine is suitable for bar and rod.
In the normal condition of the machine, implement the tensile strength to the ferrous metal materials (bar, tube) and non-ferrous materials (bar, pipe), it can also pull the steel, hexagonal and other shaped material, which is the professional equipment for drawing-based steel mills, steel plants, the standard factory and other machinery industries.
Automatic Push Point Bar Drawing machine suitable for drawing metal (aluminum, copper, brass, bronze, steel and iron) bar with automatic push point system. The push point system be moved by Hydraulic propulsion system. Can choose automatic feeding and automatic receiving. More stable, high speed, good quality. It's the best equipment for drawing metal bar.
Advantage
1. Automatic equipment
2. Lower noise and durable.
3. Stable performance
4. Patents received
5. Good quality, best service
6. Taiwan technology
7. High precision and accuracy
Certification: SGS, ISO9001-2008
| Drawing strength | 100KN/120KN |
| Drawing speed | 0-25m/min |
| Max.drawing finished length | 8m |
| Hydraulic propulsion system | Bar/Pipe 30mm |
| Chain pitch | 3'' |
| Reducer model | ZQ650 |
| Electric motor | 380V 50HZ |
| Drawing car power | 2.8KW |
| Main motor power | 30KW |
| Dimension(L*W*H) | 12000*1400*1500 |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
