Machinery Characters:
Working steady, safe and reliable enough.
Capsule qualified rate is ≥ 99% with the precise dosage.
Timing frequency-conversion, programmable controlled.
New closed structure, accord to GMP standard.
State:

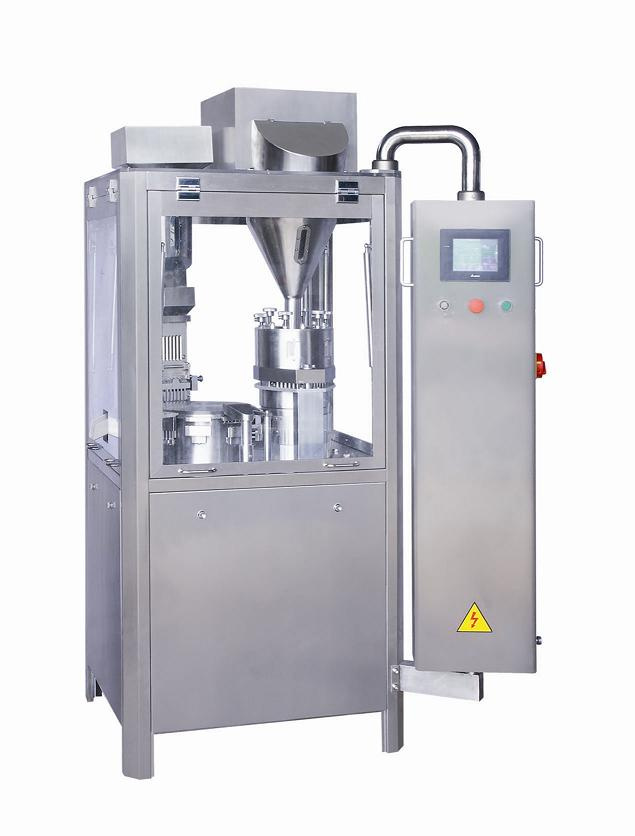

NJP-600 Fully Automatic Capsule Filling Machine is filled by powder, grain, tablet, It adopts multi-bore dosing, intermittent motion and timing frequency-conversion. It is suitable for automatically completing capsule feeding, separating, filling (waste capsule rejecting), closing, finished product ejecting for powder or tiny pill medicine in capsule. It is designed sophisticatedly by our factory according to the practice on domestic. It is fully accord with the GMP standard.
Main Features:
It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
The multi-bore dosing brings a precision dosage (it is controlled around ± 3.5%); The good capsule applicability makes a higher capsule qualified rate (≥ 99%). It can be filled with the Chinese traditional medicine and the Western medicine.
Main Technical Parameter
|
Output
|
600 Granule/min
|
No. of segment bores
|
5
|
Suitable for capsule
|
00#~5#
|
Total Power
|
5.05 kw
|
Overall Weight
|
800 KGS
|
Overall Dimension
|
930×790×1930MM
|
Ruian Shengtai Pharmaceutical Machinery Co., Ltd. is an enterprise specialized in the development and researching, manufacturing and marketing. It is a member of Chinese Pharmaceutical Equipment Industrial Association. The company owns a lot of high diathesis workers and stuffs and provide the high quality and competitive products to home and abroad and have won a high reputation in the world.
The Company's products have been sold to more than 20 provinces domestically and also exported to many countries like the United States, Russia, Denmark, Sweden, Bulgaria, U. K. Pakistan, Malaysia, Bangladesh, Indonesia, Philippines, Vietnam, Kenya etc. Among them the type of DPB-250 E, DPB-140 were rewarded the Provincial New Hi-tech Products and won a very high reputation home and abroad.
Ruian Shengtai Pharmaceutical Machinery Co., Ltd. insist on" Trustworthiness as the sole of the company and always innovate for higher" to build "top-rank enterprise, top-grade Product and top-grade service".
