Turnkey Project Carbonated Drink Production Line
Detailed Product Description
1. With ISO and CE
2. Capacity 1000--36000
3. Long life span
4. Pet and glass bottle
5. Bottle washer filler capper in one
INTRODUCTION:
1. The carbonater drink production line includes from water treatment to packing etc. Whole line
Carbonater drink production line has water treatment and drink mixer, CO2 steel, balanced pressure 3-in-1 machine (balanced pressure filling machine), labeling machine and packing machine.
Water treatment has multimiduim filter, active carbon filter, sodium ion exchanger, and precision filter, reverse osmosis filter and UV sterilizer.
2. The automatic carbonated soft drinks production line construction is advanced, The performance is stable.
The operation and maintain are easy. And the speed of automatic carbonated soft drinks production line
Can be adjusted infinitively and accords with the standards. It is an ideal choice for small and middle scale drink factories.
3. Main components:
Sugar melt and mix pot
Syrup Pump
Chiller (Syrup chiller)
Frame filter
Water Mix tank
Pump
Microporous film filter
Mixed liquor Chiller

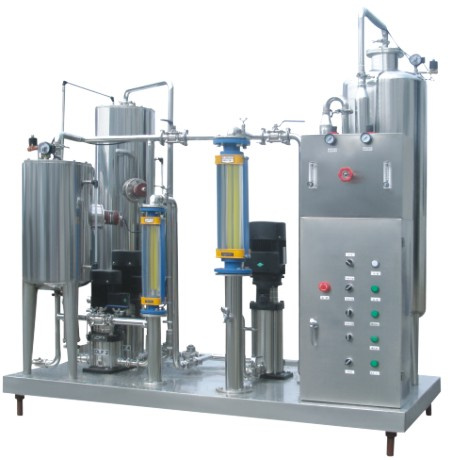

Carbonic acid water blending machine
. Filling machine and labling machine and packaging machine
|
Model |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-10 |
DCGF40-40-2 |
|
Washing,-Filling-Capping |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
Producing capacity
(600ml) |
3000-4000
(bph) |
5000-7000
(bph) |
8000-12000
(bph) |
12000-15000
(bph) |
|
Suitable bottle size(mm) |
φ=50-108 H=170-340 330ml-2.25L |
|
Pressure (kg/cm²) |
2~3 |
|
Outside vacuum pump power (kw) |
Main motor
4.5kw |
Main motor
4.5kw |
Main motor
6kw |
Main motor
8kw |
Overall dimension (mm)
(LxWxH) |
2100*1400*2500 |
2460*1720*2650 |
3100*2100*2650 |
3500*2500*2650 |
|
Weight(kg) |
2500 |
3500 |
4200 |
5500 |
Jimei company was established in 1989, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have passed ISO9001, National GMP Technology Standard Evaluation, inspections by National Pharmaceutical Equipment Inspection Center, and all products are designed and manufactured strictly according to standards such as ISO, SMS, IDF, DIN, QB/T2003, 2004, 3A as well as our internal standards.
We are a company integrating scientific research, manufacturing and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported through our sister compang in group (Shanghai Runrong International Trade Co., Ltd)to Asia, Europe, America, Africa, over 50 countries, and gained favorable feedback from users. Major projects include milk preliminary handling, UHT pipe, plate bacteria killing machines, bacteria-free liquid soft packing machine, gable-top paper box filling machine, that combine to form diary production line, beverage production line, biological engineering production line. We have provided products to the following famous companies: Taizinai, Wahaha, Sanlu, Bright, Danone, Mengliu, Coca Cola, PepsiCola, Yingxiong etc.
