Product Specifications
| Prod Model: |
SS-700T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Cardboard Printing Machine |
| Max Printing Size: |
500X 700 mm |
| Max Printing Height: |
0-180 mm |
| Printing Speed: |
500 PCS/ Hour |
| Max Screen Frame Size: |
600X 900 mm |
| Type: |
Vertical Screen Printing Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Flat-bed cylinder press |
| Color & Page: |
Single-Colour Printing Press |
| Print Interface: |
No Need |
| System Supported: |
No Need |
Product Description

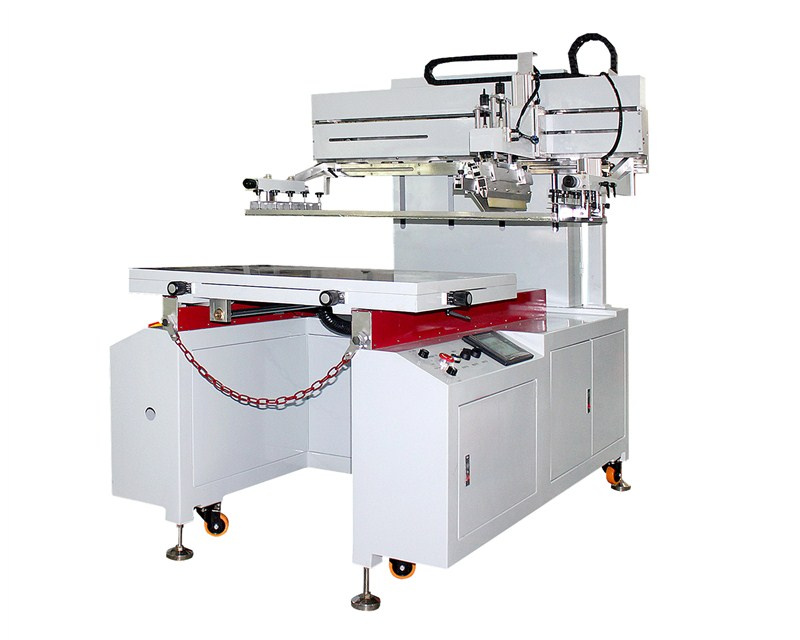

automatic cardboard printing machine,screen printing machine style with printing area 50x 70cm
automatic cardboard printing machine use scope:
This style machine is comprehensive to any industry. Like toys, electrons, plastics, leather, metals, light industry and food package with flat surface.
slide screen printer Feature:
1.Worktable can move right to left which move conveniently and safer to feeding and unload the products. .
2.Touch screen control with step motor.
3.Per position is induction with electric eye, having accuracy position and excellent function.
4 The screen frame raising and down with guide pillar, high accuracy, moving stable.
5 Stable function, the whole machine is controlled by Microcomputer.
6 As the customer requested, Setted two program, single cycling and automatic printing.
automatic cardboard printing machine Parameter:
| Max printing Size: | 500x 700 mm |
| Max printing height | 0-180 mm |
| Air apply | 5-7 bar |
| Printing Speed | 500 pcs/ hour |
| Max screen Frame size | 600x 900 mm |
| Power | 1200 w |
| Voltage of source | 220V/ 1 phase
50/ 60 HZ |
| Net Weight | 800Kg |
| Dimension | 3050x1020x1825mm |
Our Service:
1 Warrantee time: 1 year.
2 Package: plywood case.
3 Delivery time: 20 work days when receive your deposit.
4 Payment: 40% deposit, the balance against the machine is ready to leave our facotry.
