Product Specifications
| Prod Model: |
CP420BK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year Full Warranty |
| Capacity: |
Max 65bags/Min |
| Measuring Range: |
Max 1000ml |
| Bag Model: |
Pillow Bag |
| Bag Size: |
L 60-300mm W 60-200mm |
| CE No.: |
Ec.1282.0d131115.GCP3095 |
| Control+HMI: |
PLC+Chinese/English Interface |
| SGS No.: |
Qip-Asi1311019 |
| Qms: |
ISO9001:2008 |
| Function: |
Forming, Filling and Sealing |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Pneumatic |
| Material Type: |
Solid |
| Packaging Type: |
Cartons |
| Packaging Material: |
Film |
Product Description

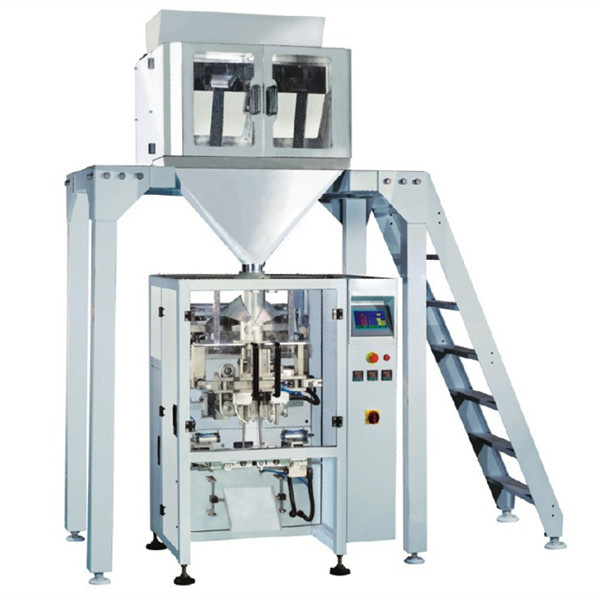

Automatic Vertical Forming, Filling, Sealing and Packaging Machine
About the contract,we need to confirm the following details. Warmly Tips:
a). What do you want to pack? Pls give me the picture.
b). Bag size ( length and width).
c). Bag weight and shape.
d). Film material.
Applications:
Suitable to packaging the high-accuracy and fragile granule, such as puffy food, crispy rice, Potato Chips, Snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares etc
Features:
A, Mitsubishi PLC+ WEINVIEW HMI/Siemens PLC+HMI, Double/Three Servo motor unit is available;
B, Servo motor unit& Belt unit film transport(Double belt unit is also available);
C, Auto program set-up, Photo sensor tracking mark, quick change former assembly;
D, High-speed machine possible: From Min 60-Max80/120 bags per min;
Optional functions:
Link/chain bag cutting;
Gusset bag;
Double servo-High speed(Max80);
PE film;
Punching;
Gas Charging;
Vacuum pulling film.
Specifications:
| Model | CP420B-II |
| Capacity | Max80 bags/min |
| Measuring range | Max100ml |
| Bag model | Pillow bag |
| Bag size | Generally,L 60-200mm W60-140mm |
| Film Width | Generally Max 300mm |
| Control | PLC + Chinese/English interface |
| Air consumption | 0.8Mps, 0.4m3/min |
| Power | 1Phase,50Hz ,AC 220V, /2.2KW |
| Customized | Twins machine, Punching functions |
| Dimension(LxWxH) | 1260x1015x1560mm |
| Weight | 450kg |
About us:
Guangzhou CER Packing Machinery Co., Ltd manufactures & supplies the vertical packaging machine & packaging solution in Guangzhou, China.
The machine & system under the brand of CER are widely used in the package of food,medicine, hardware, daily chemicals, electronics, daily necessities, etc.
CER has a professional, experienced of R&D and technical support. We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world.
We are committed to providing high-quality products and prompt deliveries at competitive/reasonable prices.
Guangzhou CER Packing Machinery Co., Ltd manufactures & provides the vertical packaging machine & solution in Guangzhou (15 minutes drive to Airport), China.
CER has a professional, experienced of R&D and technical support. We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world. We are committed to providing high-quality products and prompt deliveries at competitive/reasonable prices.
The machine & line under the brand of CER are widely used in the package of food, medicine, hardware, daily chemicals, electronics, daily necessities, etc.
We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world.
We are committed to providing high-quality products and prompt deliveries at competitive prices.
CER Packing Machinery will give you a new concept of China's merchandise: Not only Made in China, but even Created in China!
OUR MISSION:
To offer our customers a full set of Packaging Solution as their requirements at reasonable prices & on time, and we are working on it;
To supply our customers a human User Experience and a positive impression with our products, our stuff and our company, and we are working on it.
OUR GUARANTEE:
Shipment must be effected as per contract or Proforma Invoice;
Service or Support must be satisfying within 2 working days; If possible, our engineer will give you local training and solve your problem face-to-face.
OUR FAITH:
Mutual Benefit is the foundation of long, last, firm and healthy business partnership.
