Product Specifications
| Prod Model: |
SHF-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
20 Days After Receiving Deposit or L/C |
| Payment: |
30% Depoist or L/C at Sight |
| Installation On Site: |
Available |
| Shipping Port: |
Qingdao ,China |
| Feed Pan Size: |
330*330 with 6 Adjustabe Grades |
| Delivery Pipe: |
Diameter 45mm |
| Feed Capacity /Pan: |
45-55birds/Pan |
| Auger Delivery Capacity: |
450kg/Hour |
| Pan Delivery Pipe: |
3 Meters / Unit with 4 Pans |
| Power Source: |
Electric |
| Type: |
Chicken Breeding Equipment |
| Usage: |
Broiler Production Quipemtn |
Product Description

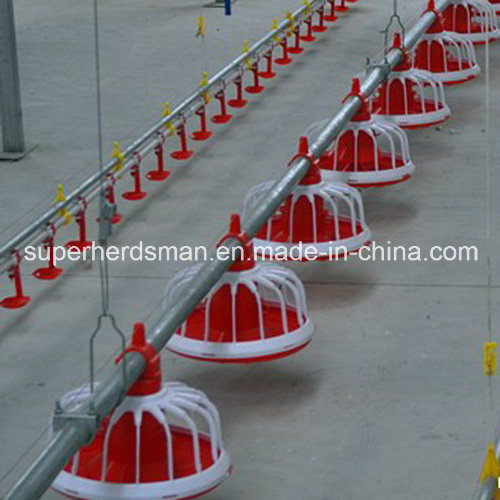

AUTOMATIC BROILER FEEDING SYSTEM
Suitable for broilers requirement during any period
A .This feeding system deliver feed through auger, including main feed line and feed line.
B.Main feed line: deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control drive motor on and off to realize automatic delivery feed
C. Advantage: Reduce labour intensity. One person is enough for one house.
D.Feed line: This system can deliver feed automatically by feed sensor at the end of feed line to control drive motor on-off.
Automatic pan feeding system consists of driving motor, hopper, delivery pipe, auger ,feed pan , hanging and lifting device , anti-roost system , and fee sensor .
| Hopper | a. Hopper volume: 100L
b. Material: hot-dip galvanized sheet |
| Driving motor | a. Taiwan brand Power: 0.75Kw/1.1Kw/1.5Kw
b. Voltage: 380V, three-phase/220V, single-phase/three phase |
| Delivery pipe | a. Diameter of pipe: 45mm
b. Material: hot-dip galvanized steel |
| Auger | a. Imported from south Africa Feeding ability:450kg/h
b. Maximum conveying length:140m |
Feed pan | a. Material : PP Diameter:360mm×360mm
b. Pan distance: 4 pans/3 meters, 3 pans/3 meters |
Hanging and lifting device | Driven by winch to adjust the height of the whole feeding line through pushing or pulling the steel wire according to the chicken day's age. |
| Anti-roost system | prevents birds staying on the feeding line for too long. |
| Feed senor | Imported from Germany; time delay range 0 to 2 hours. |
2. Material : polypropylene material , Anti-UV, and Anti-corrosion as well as Oxidation resistance
Size : 330*330mm
| Details of broiler feeding pan |
|
|
| No. of grilles per pan |
| 14 |
| No. of birds per pan could feed |
| 40-55 |
| Distance per grille |
| 70mm |
| Density of broiler |
| 13-18 birds/M2 |
| Dimension |
| 330mm×330mm |
