Product Specifications
| Prod Model: |
CIP-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clean Flow Rate: |
2, 000L/H |
| Clean Pressure: |
2.4kg/Cm2 |
| Washing Material: |
a: 2% Nitric Acid, 2% Lye B: Hot Water |
| Filling Precision: |
≤ ± 5mm |
| Filling Volume: |
3.5L |
| Composition: |
CIP Cleaning Machine |
| Processing Material: |
Natural Ingredients |
| Process: |
Frozen and Chilled |
Product Description
Product Description

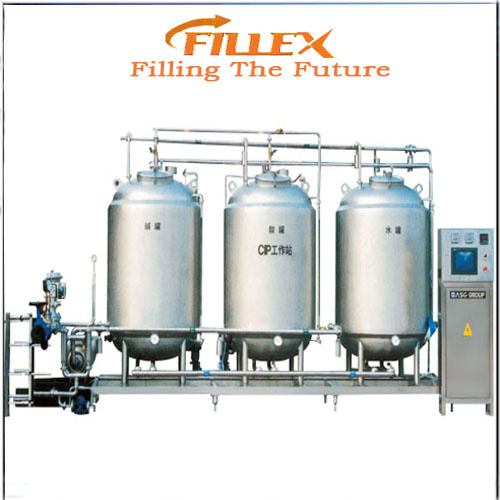

CIP is specially designed for the clean-up of beverage production line and filling equipment, with three cleaning sections of acid, lye and heated water, in which temperature can be set up for acid, lye and heated water.
Automatic temperature control
Clean flow rate :2,000 liter per hour
Clean pressure: 2.4kg/cm2
Washing Material: A: 2% nitric acid, 2% Lye B: Hot water
The whole CIP cleaning system is installed on a frame and supporter which is easy for transportation especially exporting; The heating way for the cleaning liquid is auto-heating.
The operating principle: Set the cleaning temperature through the temperature controller to control the steam control valves opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopt the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced.
The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers should increase the water when the tank lack of water.
Model: | BCGF16-16-5 | BCGF24-24-8 | BCGF32-32-12 | BCGF40-40-12 |
| Capacity: 640ml | 3000BPH | 6000BPH | 8000BPH | 10000BPH |
| Bottle shape: | roud or square |
| Glass bottle: (mm) | (Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm |
| Cap: | crown cap |
| Filling precision: | ≤ ± 5mm |
| Filling pressure: (Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
| Rinsing pressure: (Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
| Filling volume: (L) | 3.5 | 4 | 6 | 8 |
| Overall size: (mm) | 2450*1800
*2350 | 2780*2200
*2350 | 3600*2650
*2350 | 3800*2950
*2400 |
| Weight: (kg) | 3500 | 4500 | 5500 | 6500 |
we are a professional manufactory of cip cleaning systerm for beverage filling line,
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
L1-2 & 3-5 Gallon Jar Bottle Water Plant
LBottle, Kind of Container Labeling Solutions
LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
