| Supplier: | Shenzhen Wanfang Automation Technology Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

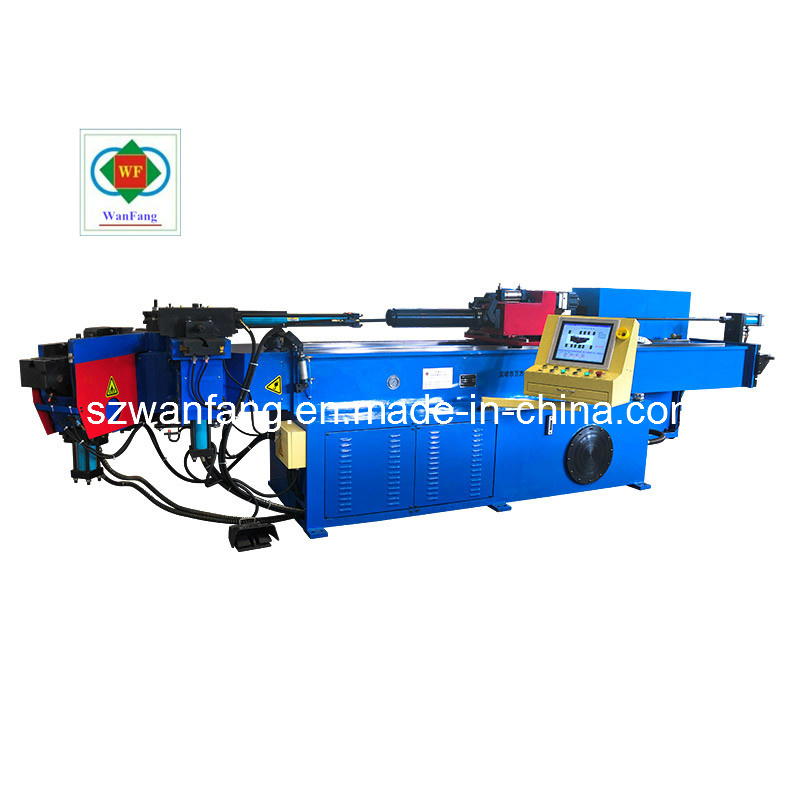

| Prod Model: | WFCNC63x5 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification/Model | WFCNC63x5 | ||
| Max. bending capacity(mm) | Φ63x5 | ||
| Min. bending capacity(mm) | Φ10 | ||
| Max. bending radius(mm) | 250 | ||
| Min. bending radius(mm) | 25 | ||
| Max. bending angle | 190 | ||
| Length of mandrel(mm) | 3000 | ||
| Mandrel stroke(mm) | 150 | ||
| Mandrel adjustment(mm) | 50 | ||
| Follower die stroke(mm) | 600 | ||
| Pipe end Min. length(mm) | 150 | ||
| Tools centerline height(mm) | 50 | ||
| Working height(mm) | 1015 | ||
| Speed range | Bending speed C(r/min) | 0-20 | |
| Feeding trolley walking speed Y(r/min) | 0-60 | ||
| Clamping set speed B(r/min) | 0-30 | ||
| Pre-set speed(each axis-CNC) | 9 | ||
| Working accuracy | Bending accuracy C axis(°) | ±0.05 | |
| Feeding accuracy Y axis(°) | ±0.1 | ||
| Rotary accuracy B axis(°) | ±0.05 | ||
| Capacity of memory | 10^5 | ||
| C-axis stall torque(N.m) | 16400 | ||
| Motor power (KM) | 20 | ||
| Hydraulic system pressure(Mpa) | 15 | ||
| Hydraulic tank capacity(L) | 400 | ||
| Dimensions: L*W*H(m) | 5.2*1.5*1.25 | ||
