Automatic CNC Seam Welding for Sink
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T |

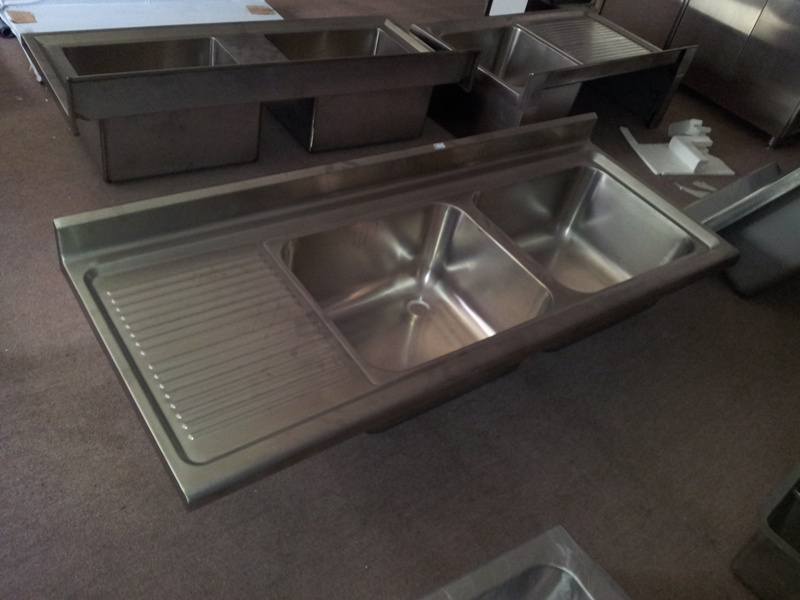

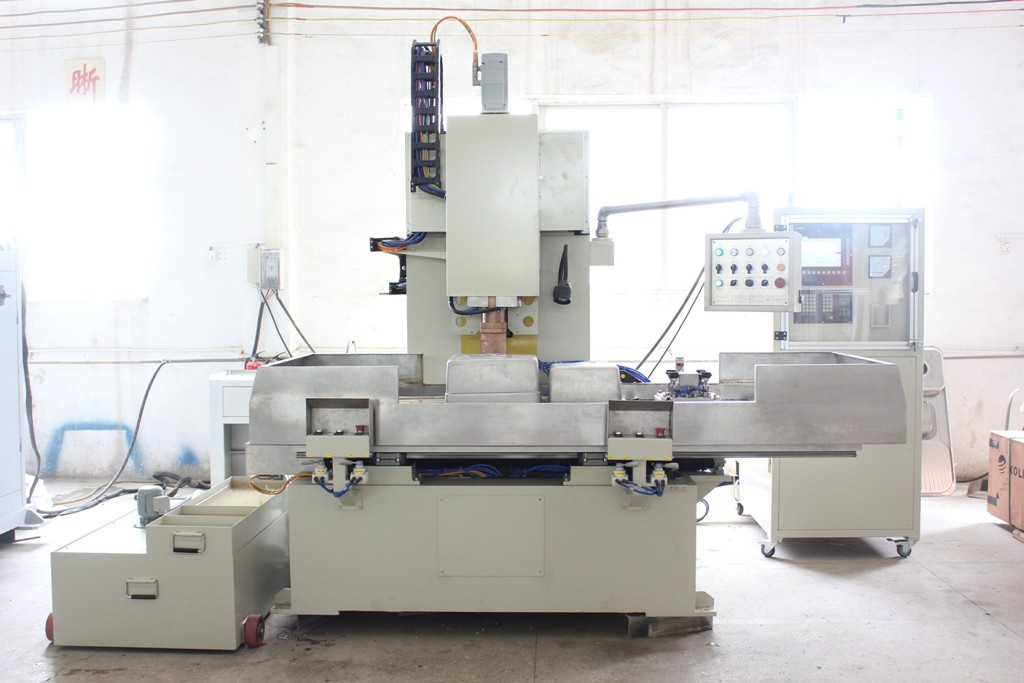

This machine is a resistance welding machine special for Sink, to weld the sink bowls with flat. It main is consisting of three phase medium frequency inverter transformers, control system, body, welding electrodes, position moulds, X, Y axis servo work table, Z axis rotation device, cooling water system, monitor system and safety device etc.
It is by means of three phase MF inverter technology, and three-axis association, interpolate method, computer control technology etc, so speed and average send out heat in welding workpiece, to ensure smaller heat area, to let quality is stable and consistent.
It is with double hand start button, and monitor functions as insufficient cooling water and compressed air etc. adopting the acoustooptical alarm indicator light, thereby ensuring some key factors like the worker's safety, equipment safety and welding quality etc
Also, welding controller is the special controller of PRECAIL, Pneumatic system equipped with the CKD OR SMC imported from Japan, they have efficiency, stability, automatic, reliability.
To ensure the performance and quality, all of the key parts are imported from abroad and they are famous brands, and verified by ISO9001, CCC or CE, UL. Quality is very good. | No. | Name | Brands | Origin |
| 1 | Pneumatic components | CKD or SMC | Japan |
| 2 | CNC system | SIEMENS | Germany |
| 3 | Servo motor and drive system | SIEMENS | Germany |
| 4 | 3 phase MF inverter transformers | PREVAIL | HK China |
| 5 | 3 phase MF inverter controller | PREVAIL | HK China |
| 6 | Low voltages apparatus | SCHNEIDER | France |
| 7 | Guide rail | THK/ABBA | Japan/Taiwan |
| Rated capacity | 120 |
| Rated voltage (V) | 380±10% three phase 4 cables |
| Rated frequency(HZ) | 50 |
| Cooling water pressure | 2.5bar |
| Rated primary current | 160A/phase |
| Non load volts | 9V |
| Continual welding current | 12000A |
| Control programming | Set by SIEMENS CNC interface |
| Stroke of electrode | 80mm |
| Working height | 800-900mm |
| Electrode pressure | About 4500N adjustable |
| Pressure adjustable range | 30%-100% |
| Compressed air pressure | >7bar |
| Overall size | 1800*2000*2800 |
| Weight | About 4800kg |
| Work efficiency | Welding speed 2000-3000mm/min
1.5min/pcs including loading and unloading workpiece. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Seam Welders |
| Current: |
Direct Current |
Founded in: 1998 Year
Located at: Ningbo, China
Quality certificates: ISO9001-2008, CCC, etc.
Specializing in a variety of resistance welding machines and relevant equipment for more than 20 years, and our equipments are famous brands of China. We really have machines in Iraq, Iran, India, Russia, Turkey etc. Not only we are in a position to supply simple machine but also a complete welding line.
The company integrates production, research, sales and service in one of the professional type resistance welding machine and relevant machinery of high-tech enterprises. Company has a lead expert, all kinds of professional engineers as the main R & D team, strong technical force, in the welding industry brand leader, an innovative enterprise. Also we are able to supply a whole complete line solutions for our customers.
Our main products are spot welding machine, projection welding machine, butt welding machine, seam welding machine, row welding machine, wire mesh welding machine, also various kinds of custom other machines etc.
