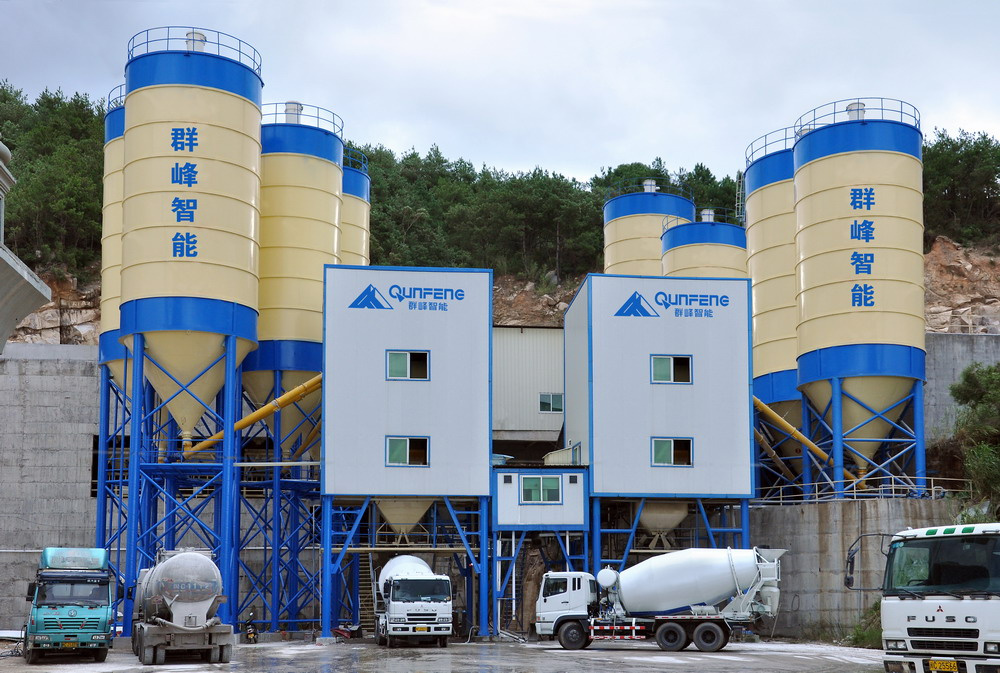

Automatic Concrete Batching Machine

Product Specifications

Prod Model:	HZS180
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Productivity(M3):	180
Mixer:	Js3000
Batcher:	30m3
Conveyor Capacity(T/H):	800
Total Power(Kw):	190
Unloading Height(M):	4

Product Description

The concrete mixing plant is a combinational device used to mix concrete in centralized. There are many different types and components of the concrete mixing plants, the basic structure includes: feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc.). They are used to transport, feed, store, batch, weigh, mix and discharge the concrete raw materials: cement, water, sand, crushed stone, admixture and additive.
Main Features:

1. Stability and Durability: Adapt and apply the most advanced technologies around the world;

2. Reliability: 30 years of experiences in manufacturing concrete mixing plants.

3. Stationary modular structure, fast and easy installation;

4. Sicoma mixer, excellent mixing performance with high efficiency and high productivity;

5. Double computers with double controls, easy operation;

6. Excellent environmental protection, dust collection system and anti-noise design.

Excellent Mixing Performance

1. Horizontal twin-shaft compulsory mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform

2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.

3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;

4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;

5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators. 6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements

Central Control System

1. The control system of double computers with double controls consists of two industrial computers, one is production control computer and the other is production management computer. The control system has the following functions

2. The management computer is a backup computer for the whole electric control system. When the control computer is out of order, the management computer can be changed into the control computer to control production.

3. Long-distance trouble shooting by internet and teleservice, which greatly improves the users ability to trouble shoot the system.

4. The control room, which is made of colorful shaped steel plates, is capacious, anti-noise and heat insulated.
