Product Specifications
| Prod Model: |
JDZ-100D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Company Type: |
Manufacturer and Trading Company |
| Automation Degree: |
Full Automatic |
| Control System: |
PLC |
| Machine Frame: |
304 Stainless Steel |
| Type: |
Carton Packaging Machinery |
| Automatic Grade: |
Automatic |
Product Description

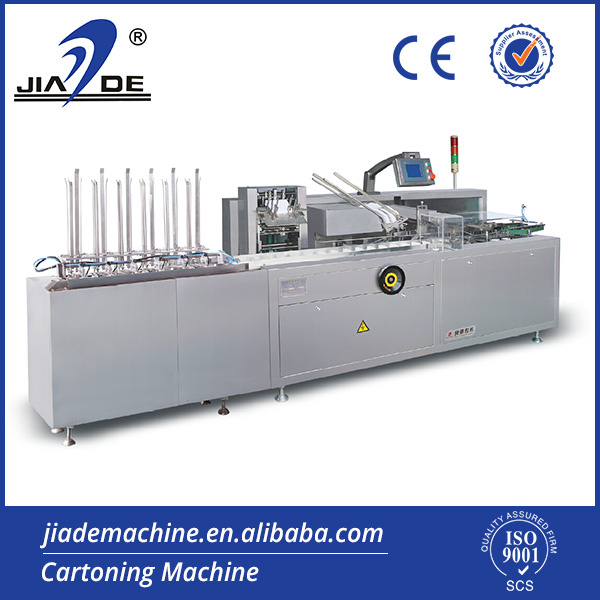

JDZ-100D Fully Automatic Condom Carton Machine
Applications:
It is suitable for inserting bag/sachet/pouch,condom,adhesive bandage,soft ALU strip,plaster,coffee/tea bag,face mask and similar products into carton
Instruction
Cartoning machine is suitable for cartoning blister, bottle, pouch, bag, sachet
injection, medicine, cosmetic, condom. food, tube, ointment, wrapped products and so on. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.
Feature
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system
3. Automatically displaying device for trouble, speed and finished products counting.
4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5. No products not suction leaflet, no leaflet not suction carton .
6. Automatic detection and rejection device for lacking blister goods and leaflets.
7. Protecting automatically for overloading.
8. stable performance , operation is easy.
| Main technical parameters |
| Encasing speed | 30-120 cartons/min |
| Bag/sachet/pouch feeding quantities | 1-12, base on the bag/sachet/pouch size |
| Carton | Quality requirement | 250-350g/m2 (base on carton size) |
| Dimension range (L×W×H) | (70-180)mm×(35-85)mm×(14-50)mm |
| Leaflet | Unfolded leaflet specification(L×W) | (80-250)mm×(90-170)mm |
| Fold range | (1-4) fold |
| Quality | 60-70 g/m2 |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 200-240L/min |
| Power | 220V/50Hz |
| Motor power | 1.10kw |
| Machine dimension(L×W×H) | 4200mm×1140mm×1550mm |
| Machine weight | 1800kg |
JIADE COMPANY locates in southeast coast of Zhejiang-Ruian city, famous "Wenzhou Model" birthplace with historical cultural, known as well "southeast little Zou Lu", It is biggest production field in pharmaceutical packaging machinery, the products round world. Strong information resource and customer groups provide a valuable basis to our innovation and development.
JIADE COMPANY is Chinese pharmaceutical equipment association member unit, professionally manufacture packaging, pharmaceutical and food machine (such as JDZ-200 Series Automatic High Speed Cartoning Machine, JDZ-120 Series Automatic Vertical cartoning machine, JDZ-100 Serial Automatic Horizontal Cartoning Machine). With a blend of scientific research, development, production, distribution and service. It owns high technology, advanced manufacturing facility, reliable quality and good after-sale service to insist carrying out ISO9001: 2000 international quality system standard uncompromisingly. Because of high autoimmunization and good price, the products are well sold to not only domestic pharmaceutical, food, cosmetic industry but also overseas such as U. S. A, Japan, Russia, Australia, Belgium, Russia, India, Vietnam, Thailand and so on
JIADE is not only your best choice, but also right assistant.
JIADE is looking forward to cooperate with all customers and create a brilliant future!
