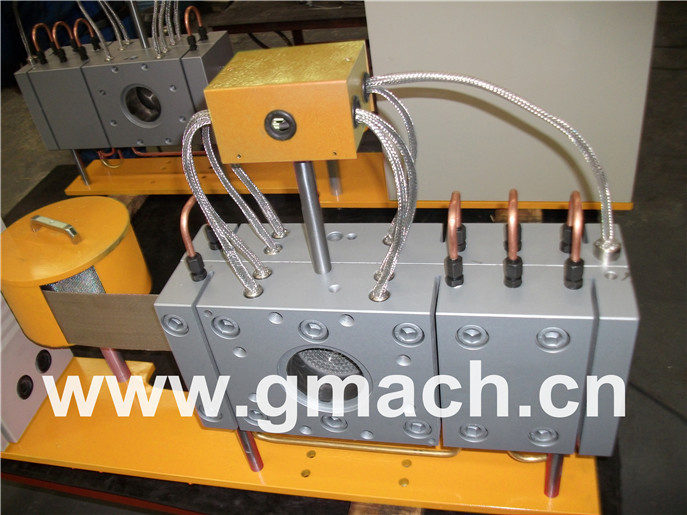

Automatic continuous polymer melt filter for plastic extrusion machine
The structure of this kind of automatic continuous melt filter
1)the main body of the screen changer
2)the digital electrical controlling pack
Features of this kind of Automatic continuousmelt filter
1)No extra drive system
The screen mesh move forwards does not rely on the extra drive system , but the pressure differential between the before screen and after screen.
2)The unique sealing sysem
Except of the mechanical sealing way, this kind of automatic continuous screen changer adopts a unique sealing method according to the feature of the polymer melt. when the melt stream is cooled and it will become solidificate and hard, so it becomes the second step of sealing system entrance of the screen mesh and the exit of the screen mesh.
Finished products
Benifits of this kind of automatic continuous screen changer
1) Screen replace process without manual operation, the screen moves forwards automatically
2)The pressure of the whole production process almost keep stability, do not effect the quality of the final products, there will be no defective products produced
3)Easier access and less interference for the operator
Application fields of this kind of Automatic continuous melt filter
bar/wire/pipe/sheet/wire drawing/plate
Types and parameter of this kind of melt filter
Type | Screen D&A | overall dimension (mm) | Heating power (kw) | Output (kg/h) |
Dia (mm) | Area(CM²) | L | W | H |
GM-ACB-50 | Φ50 | 20 | 540 | 150 | 165 | 5.2 | 30-85 |
GM-ACB-70 | Φ70 | 38 | 560 | 160 | 170 | 5.4 | 75-200 |
GM-ACB-90 | Φ90 | 64 | 580 | 170 | 185 | 5.8 | 100-290 |
GM-ACB-100 | Φ100 | 78 | 605 | 180 | 215 | 6.2 | 130-350 |
GM-ACB-120 | Φ120 | 113 | 645 | 185 | 230 | 6.5 | 190-500 |
GM-ACB-150 | Φ150 | 176 | 700 | 200 | 265 | 7.2 | 350-800 |
GM-ACB-180 | Φ180 | 254 | 760 | 220 | 305 | 8.2 | 450-1200 |
The other size of product can be designed as customers requirement |
Commissioning
We provide the operation manual for customers to gudie to install the screen changer, and at the requirement of user, salers should send technician to install and commissioning the die at site of Buyers, expenses of the trip should be borne by Buyers.
After-sales service
12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.
Zhengzhou Great Machinery Co., Ltd is a company focus on the design and research of hydraulic screen changer, melt pump and extrusion dies. Gmach is a young company but has a large number of senior technicians, the deep technical background and full of passion work team determine it is standing on a high starting point. We do not just supply you the products, but also provide the solution to solve the problem.
We are committed to provide you the best products with ever improving design, strict production and quality control. Strong professional technical team provides you the perfect pre-sales and post-sales services.
Gmach's mission: Commit to plastic extrusion field, develop the environment friendly product, create a well-known brand at home and abroad
Now we have the following products
1, Plate type hydraulic screen changer GM-SSP series
2, Double plate type screen changer GM-DSP series
3, Double piston type continuous screen changer GM-DP-R series
4, Plate type continuous screen changer GM-R series
5, Automatic screen changer GM-ACB series
6, Large filtration area continuous screen changer GM-DP-L series
7, Spining pump
8, extrusion melt gear pump
9. Chemical pump
10, plastic recycling machine
11, plastic granules making mahcine pelletizing line
