Wenzhou Seten International Trade Co., Ltd. >> Automatic Core Shooting Machine (ST-361-Z)

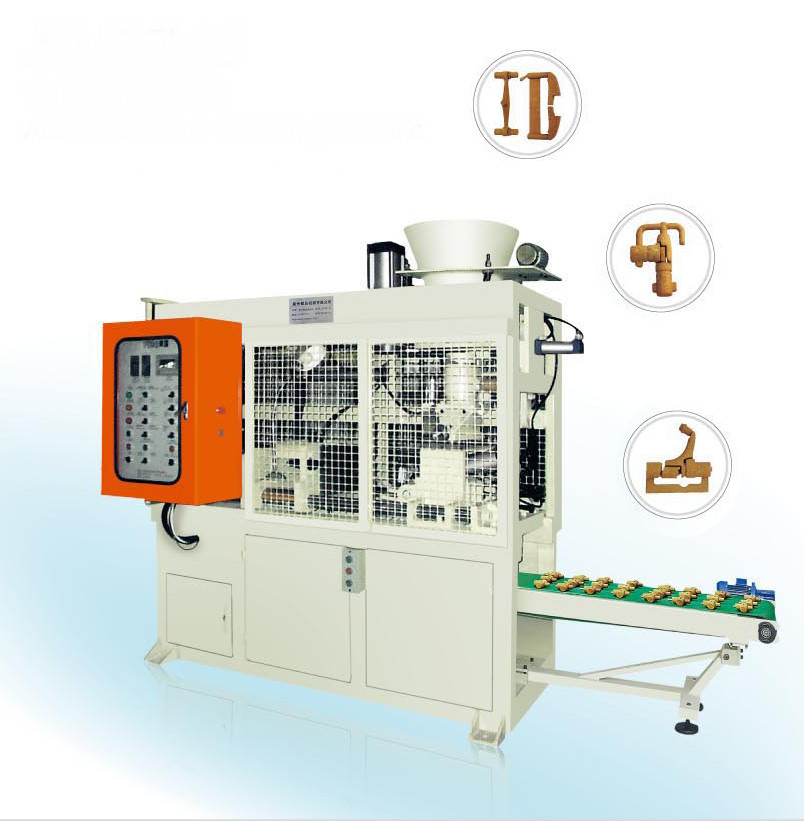

Automatic Core Shooting Machine (ST-361-Z)

Name: Automatic Core Shooting Machine (ST-361-Z)
Brand: China-Manufacturer-Directory.com
SKU: 617442844
Availability: InStock
Rating: 4.3 (127 reviews)

Supplier:	Wenzhou Seten International Trade Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ST-361-Z

Product Description

1. Device: PLC Control
2. Operation: Driven by air pressure
3. Operating functions: Manual, senmi-auto, full-auto(with conveyer belt)
4. Two optional sand state: Coated resin sand(dry). Furan resin-sand(wet)
5. Electric heating: Automatic thermostat(dynamic mode, static mode can be an independent temperature control)
6. Clamping stroke: 300mm
7. Top lock stroke: 30mm(dynamic mold is in mechanical type, static mould is in penumatic type)
8. Maximum center distance of abrasive perforating: 320mm
9. Working pressure: 0.5-0.7mpa
10. Theoretic time for full-round operation: 30-60 seconds
11. Theoretic maximum quality of sand core 4000g
12. Dimensions(L*W*H): 2700mm*1280mm*2000mm

1.Device:	PLC Control
2.Operation:	Driven by air pressure
3.Operating functions:	Manual,senmi-auto,full-auto(with conveyer belt)
4.Two optional sand state:	Coated resin sand(dry).furan resin-sand(wet)
5.Electric heating:	Automatic thermostat(dynamic mode,static mode can be an independent temperature control)
6.Clamping stroke:	300mm
7.Top lock stroke:	30mm(dynamic mold is in mechanical type,static mould is in penumatic type)
8.Maximum center distance of abrasive perforating:	320mm
9.Working pressure:	0.5-0.7mpa
10.Theoretic time for full-round operation:	30-60 seconds
11.Theoretic maximum quality of sand core	4000g
12.Dimensions(LWH):	2700mm1280mm2000mm

About Wenzhou Seten International Trade Co., Ltd.Established in 1997, Wenzhou Seten International Trade Co., Ltd.Is a China-based professional supplier of casting machine to produce various casting spare parts with professional, dynamic and customer-oriented staff.Aimed on people, each individual makes a unique contribution to the business and you.The professionalism, skills and knowledge of our team throughout the business allow us to deliver you the product you need in higher quality at more reasonable price.
