Automatic Corn Flakes Processing Machinery

Name: Automatic Corn Flakes Processing Machinery
Brand: china-manufacturer-directory.com
SKU: 706002702
Availability: InStock
Rating: 5 (128 reviews)

Price:	US $ 36000-70000/Set
Trade Terms:	FOB
Min Order:	1/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TN70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Machine:	Corn Flakes Extruder
Voltage:	380V, 50Hz, 3phases (Adjustable)
Warranty:	1 Year
Product Name:	High Quality Corn Flakes
Energy:	Electricity, Oil Diesel, Gas, Steam
Need Workers:	2 Workers for Corn Flakes Food Machine
Skype:	Tainuo09cindy

Product Description

1. Corn flakes machine description:

Breakfast cereal manufactured by twin-screw extruder or single screw extruder through the treatment of flakes of

grain, served with milk and marshmallows, were a very popular food among the families.

2. Raw materials: adopts corn flour as raw materials.

3. Breakfast cereal corn flakes processing line Products:

This line can be used to produce snacks, cereals by adjusting the moulds from extruder

4. Corn flakes machine Capacity: 120-150kg/h, 200-250kg/h, 350-500kg/h

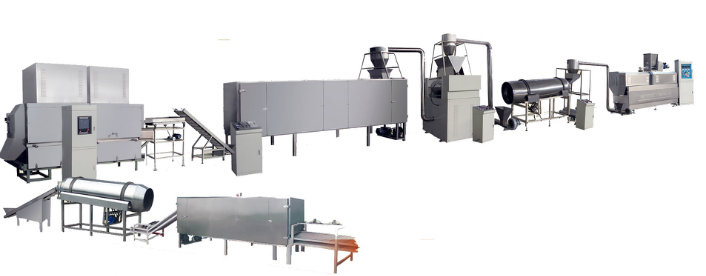

5. Corn flakes processing line Flow chart:

Mixing system---Extrusion system----Cooling system-Flaking system--Drying system-Toasted system---Sugar Spraying system ---Drying system---- Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel.

8. The biggest advantage: the screw can self-clean automatically

Technical Parameters:

MODEL	INSTALLED POWER	REAL POWER	OUTPUT(KG/H)	DIMENSION(MM)
TN65	45kw	22kw	120-150kg/h	26009001900
TN70	54kw	45kw	200-250kg/h	26009001900
TN85	94kw	75kw	350-500kg/h	39009001900

Jinan Tainuo Machinery Co., Ltd. is manufacturer involving in extrusion machinery and kinds of

Extrusion food processing line. We do well in extrusion machine, single-screw/double-screw extruder, soybean tissue production line, pet food machine, snack food equipments and

Small puffed food machines, etc.

We have a strong design team and lots of experienced manufacturing workers.

In a total of 100 workers, there are more than 10 drawing engineers and more than 30 sale-service engineers. The business area of the factory is about 1500 square meters.

We have experience on machinery export for many years. The customers are spreaded in Asia,

Africa, South America and all over the world. Jinan is the basic area of inflation machine manufacture

In China and Tainuo Machinery is professional in this field.

Welcome to our factory for visit and cooperation.
