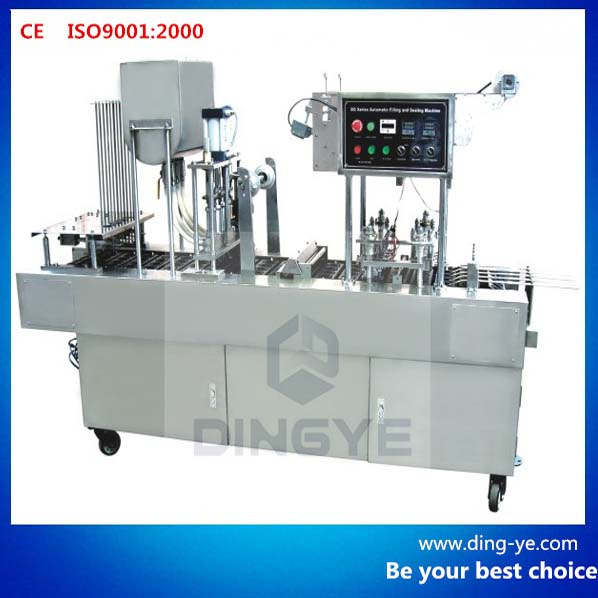

Automatic Cup Filling and Sealing Machine (BG60P/32P)
Product Specifications
| Prod Model: |
BG60P/32P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Special Requirement: |
Customized |
| Automatic Grade: |
Automatic |
| Packaging Material: |
Film |
| Application: |
Milk |
| Usage: |
Outpacking |
| Type: |
Filling and Sealing Machine |
| Material Type: |
Liquid |
| Applicable Industry: |
Drink |
| Packaging Type: |
Cup |
Product Description
BG32P (2 cups)/BG60P (4 cups) cups automatic fill-seal-cut machine is widely used in filling and sealing various kinds of plastic cups for sticky liquid and paste material.
It can automatically complete the processes of cup-dropping, filling, sealing, film cutting, code printing, sterilizing in ultraviolet radiation and cup-falling in one operation.
P model is especially designed for filling sticky liquid or paste material, such as fruit jam, yoghourt, hot chocolate liquid etc.
The filling unit is also able to improved to fill powder and granule, such as coco powder, baking power, peanut and soybean etc.
It has function of automatic film position regulation.
Large power AC motor driving mechanism is adopted.
For 4 cups model, it can either driven by motor or pneumatic method.
Cup-dropping and cover-sucking unit adopt pneumatic method.
Famous brand -OMRON and AirTAC are applied to electric components and pneumatic elements.
In addition, it can be customized according to your special requirement.| Model | BG32P | BG60P |
| Number of cups | 2 cups | 4 cups |
| Power source | 220V/380V/50HZ 2.5kw | 220V/380V/50HZ 3.5kw |
| Capacity | 30-32 cups/min | 60-64 cups/min |
| Filling range | 50-250 ml |
| Temperature | 0 -300 Centidegree |
| Seal material | PE, PP, PET/PE |
| Dimension | 2150*700* 1650 mm | 2360*820* 1650 mm |
| Weight | 440 KG | 580 KG |
