Price: | US $ 4200-5100/Piece |
---|---|
Trade Terms: | FOB,others |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Model | HVS-5 | HVS-10 | HVS-30 | HVS-50 |
Test load(N) | 2.942/4.903 9.807/19.61 24.52/29.42 49.03 | 2.942/4.903 9.807/19.61 24.52/29.42 49.03/98.07 | 4.903/9.807 19.61/24.52 29.42/49.03 98.07/196.1 294.2 | 9.807/19.61 24.52/29.42 49.03/98.07 196.1/294.2 490.3 |
Test load(Kgf) | 0.3 / 0.5/1 /2 / 2.5 /3 / 5 | 0.3 /0.5 /1 /2/2.5/ 3 / 5 / 10 | 0.5/ 1 / 2 / 2.5 3 / 5 /10 / 20 /30 | 1/ 2 / 2.5 / 3 5 / 10 / 20 /30 /50 |
Carriage control | Automatic (loading/dwell-time/unloading) | |||
Load holding time | 0~60 seconds | |||
Magnification of microscope | 200X, 400X | 100X, 400X | 100X, 200X | 100X, 200X |
Microscope Min. measuring unit | 0.0625um(400X) 0.125um(200X) 0.250um(100X) | |||
Testing range | 1HV~2967HV | |||
Lens/indenter switch | HVS series with hand Turret, HVM series with motorized turret | |||
Hardness Scales | HVM whith function of convert HB,HRC,HRA,HRB,HRN,HRT, | |||
Dimension of XY table | 100X100mm | No | ||
Stroke of XY table | 25X25mm | No | ||
Max. height of specimen | 170mm | |||
Max. depth of specimen | 130mm | |||
Light source | Cold Light Source | |||
Power | 1P~110V/220V, 50/60HZ | |||
Objective | 10X, 20X and 40X can be selected according to user's requirement | |||
Main Standard accessories | XY test table(HVS-5,HVS-10) | Large test table; "V" shape test table; | ||
10X Digital micro eyepiece ; Lever ; Adjustable screw; Vickers hardness block, RS232 Cable, Mini Printer | ||||
Option accessories | HVS series can choose Motorized Turret(HVS-Z); HVS, HVM can add CCD Video system(HV-CCD), HVM series can add HK hardness test | |||
Dimension | 535mmX225mmX630mm | |||
Weight | Gross weight:60KG; Net weight: 50KG |
Prod Model: | HVS 5, 10, 30, 50 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

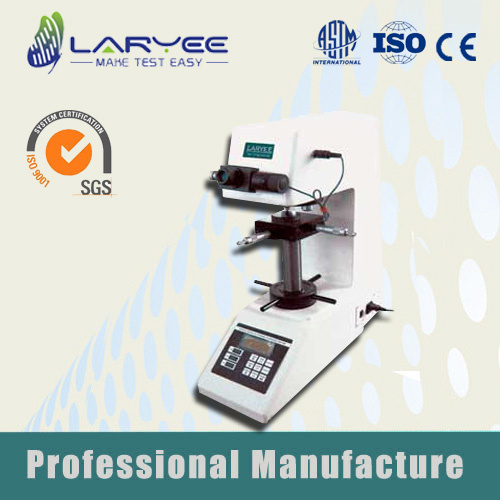

Function: | Automatic Digital Vickers Hardness Tester |
Carriage Control: | Automatic (Loading/Dwell-Time/Unloading) |
Load Holding Time: | 0~60 Seconds |
Testing Range: | 1hv~2967hv |
Lens/Indenter Switch: | Hvs Series with Hand Turret, Hvm Series with Motor |
Hardness Scales: | Hvm Whith Function of Convert Hb,HRC,Hra,Hrb,Hrn,H |
Max. Height Of Specimen: | 170mm |
Max. Depth Of Specimen: | 130mm |
Light Source: | Cold Light Source |
Power: | 1p~110V/220V, 50/60Hz |
Measuring Range: | HV |
Application: | Metal and Nometal |
Standard: | ASTM |
Type: | Automatic Digital Vickers Hardness Tester |
Rated Voltage: | 1p~110V/220V, 50/60Hz |
