Product Specifications
| Prod Model: |

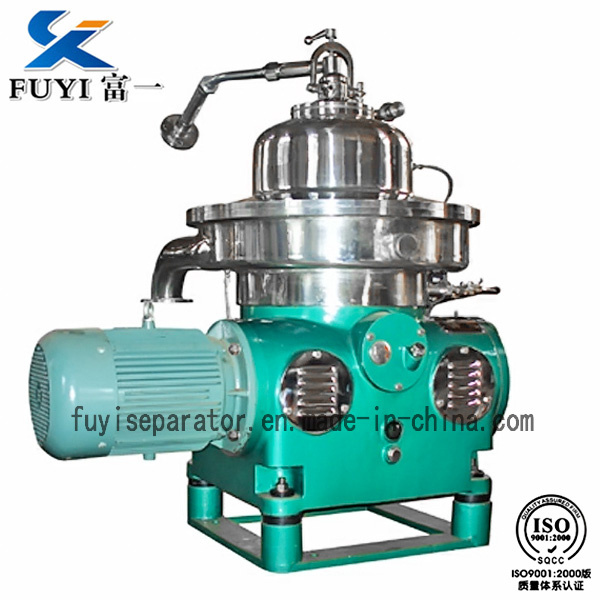

DHC series disk centrifuge |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: Milk Separator: |
Voltage: 220V |
| Condition: New: |
Power(W): 705kw |
| Place Of Origin: Liaoning, China: |
Brand Name: Fuyi |
| Weight: 550kg: |
Warranty: 24months |
| ISO: ISO9001:2000: |
Dimension(L*W*H): 950*950*1250mm (Lxwxh) |
| Application: |
Cheese |
| Customized: |
Customized |
Product Description
Specifications
Fuyi-Tech Centrifuge Separator can apply to various industry with high quality and stable performance.
Disk centrifuge is high efficiency,large capacity and advanced automatic machinery which is suitable for the lower suspension liquid and proportion dissolve liquid.It is the essential machinery for pharmaceutical,chemical,bio-products and beverage etc.The principle is based on the centrifugal forces,so it can achieve the separation purpose.The Disc Stack Centrifuge superior to the other separator or centrifuge is the advanced automatic system.
Disk centrifuge can be categorize for two type based on the automatic system level:
Model DHC is the fully automatic operation,discharging,running and cleaning by the PLC controller.Another model DRY is the manual discharging which is better for the lower solid content liquid material.
Application Industry
Biodiesel
Plant oil(corn oil,peanut oil,palm oil,olive oil,virgin coconut oil etc)
Animal oil(fish oil,pork oil,chicken oil,cow oil etc)
Beverage(Wine,Beer,Fruit and vegetable juices,Citrus juices,essential oil,coffee,tea,soy drink etc)
Plant and Chinese Medicine extraction liquid
(honeysuckle,tea polyphenols,radix isatidis,momordica grosvenori etc)
| Model | Bowl Speed(rpm) | Capacity(Per Hour) | Running Load(Watts) | Dimensions, Overall (mm) |
| Width | Front-to-Back | Height |
| 250 | 8500 | 500-800 | 4.0 | 850 | 850 | 1200 |
| 270 | 7300 | 1000 | 4.0 | 950 | 950 | 1200 |
| 300 | 7150 | 1500 | 5.5 | 1025 | 1300 | 1300 |
| 360 | 7056 | 2000-3000 | 7.5 | 1500 | 1100 | 1500 |
| 400 | 7038 | 3000 | 7.5 | 1500 | 1100 | 1550 |
| 500 | 6600 | 5000-8000 | 15.5 | 1772 | 1500 | 1855 |
| 550 | 6200 | 8000-15000 | 18.5 | 1970 | 1560 | 1970 |
| 730 | 4900 | 50000-80000 | 55.0 | 2580 | 1980 | 2340 |
Our company was established in June 2011, formerly known as Liaoyang Sunny Pharmaceutical Machinery Co., Ltd. Our company is now a technologically advanced and high-tech enterprise integrating R&D, production, and sales. Our company is a member of National separation machinery of Standardization Technical Committees, and also the Council Member of China General Machinery Industry Association. The director of our company is one of the first separation equipment researchers in China who obtained multiple National awards. "Tubular Separator", currently in effect, is the national standard and was drafted by our company. And in the same industry, our company is one of the first batches to pass ISO9001: 2000 quality system certification.
Our comprehensive performance has reached the advanced international level. Our company and branch office cover a total area of 60mu (1mu equals to 666.7m2) and a building area of 13, 000 square meters for equipment design and manufacturing, equipment inspection and test run.
With spare parts library and the material separation lab and the full equipped equipment, our company is one of the biggest manufacturers of separator equipment in domestic market. Our team is consisting of technology developers, PHD, postgraduates and undergraduates. We have close technical exchanges with Chinese Academy of Sciences, Zhejiang University and Tianjin University. We have won lots of national technical patents. Every year our company attends world-class meetings on separator machine and learns frontier technology.
Our equipment is widely used in pharmaceutical, chemical, food, beverage, blood products, material classification, biological diesel oil and other industries for the separation of solid and liquid or the separation of liquid and liquid. At present, there are thousands of equipment with all sizes have been used in lot of well known industries. As a domestic industry leader, we would like to provide our various products, excellence quality and perfect service to meet the market demand in the whole world, win the majority of users' trust and become the pioneer of the machinery manufacturing industry in the new century!
