Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Dispenser: |

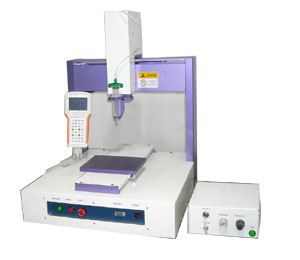

Automatic Dispenser Machine |
Product Description
This machine is adopted by the continuous trajectory controller is aimed at high speed and high precision need continuous trajectory occasions independent development of class of high-end movement controller. Card by high performance DSP and FPGA technology, may realize the pure 3D continuous trajectories interpolation movement, through the path demonstration teaching way editing program files, download to control card, control card can automatically execute program files, complete workpiece machining. Can be used in precision and speed higher demand of contour control equipment, such as glue machine, cutting machine, engraving and milling machines, cutting machine, cutting, nc machine tools, etc.
Working travel: The X axis 300 mm * * Y axis 300 mm Z100mm
Envelope dimensions: Long mm wide mm * * high mm
Keel parts: Taiwan aluminium alloy and high-grade steel structure material structure, nc machining center processing
Drive motor: Japan imported mountain club stepping micro step motor
* Z axis, and high response brake effectively protected by machining replaced the traditional spring overpull
Electric part: Shanghai HengFu industrial power supply
Palpitation system: Imported from Japan HKD guide the slider, dual track design, special level automatically vertical alignment function
Belt bearing: American gates ultra-high torque force belt, Japan NSK precision bearing
Photoelectric switch; Japan omron
Wire; High-grade shielded wire (signal, the power cord)
Control system: Four shaft dispensing machine movement controller, Japan DSP chipset
Control mode: DOT, line, line, arc interpolation, support triaxial linkage
Editing system: Full friendly human-machine interface, holding the demonstration teaching programmer
External interface: RS-five 232 AC220V
Work power: AC220V 50Hz 300W
Highest speed: 800mm/SEC
Positioning accuracy: 0.02 mm
Repeat precision: 0.025 mm
Machine weight: 110kg
Working temperature: 5-50 ° C
Maximum weight: The X, Y, Z axis axial 8kg 2.5 kg
Random with standard accessories: Hand-held demonstration teaching box, serial line
Matching software: PC mapping software, without graphics editor, direct introduction (DWG DXF format)
Applicable scope
Suitable for mobile phone key-press point glue, mobile phone battery encapsulation, notebook batteries encapsulation, coil point glue, PCB bond fixed seal glue sealing glue, horn, IC outside JuanDian glue, PDA, LCD sealing glue sealing glue, IC packaging, IC cementation, the cabinet adhesive, optical device processing, mechanical seal, etc.
S applicable colloid
Point glue dispensers for silica gel, EMI conductive adhesive, UV glue, AB glue, glue, fast drying epoxy resin, sealant, hot glue, grease, silver glue, red glue, solder paste, heat dissipation creams, prevent solder paste, transparent lacquer, screw fixative, etc;
Main purpose:
Product craft of bonding, infusion, coating, sealing, filling, intravenous drip, linear/arc/round gelatinize, etc.
Quality assurance period: The machine warranty for three years, mainboard free lifetime maintenance, permanent after-sales service.
Shenzhen Wei Cheng-precision electronic and mechanical equipment, was originally located in Hi-Tech District, Zhongshan City, VIA machinery and equipment, is a professional production of electronic equipment, OEM all kinds of sophisticated electronic equipment spare parts, small and medium military accessories manufacturers, VIA machinery to create 15 years has always maintained quality, service, innovative ideas with technological innovation, equipment updating, excellent technical talents, strong design and development efforts! Shenzhen is now set up their own brands, and strive to build China's first brand electronic equipment.
Products include: Terminal machines, automatic terminal machines, multi-function cutting tube cutting machine, computer stripping machines, automatic dispenser, resistor forming machine, capacitor cut foot machine, LED lights forming machine, jumper molding machine, sub - board machines, PCB board sub-board machines, circuit board cut foot machine, brush machine, tungsten steel knife grinding machine, pneumatic-type electronic components forming machines, pneumatic machine pole electronic components, power crystals forming machine, IC shaping machine, reflow, counters, anti-static trolley, feeder, wave soldering, vertical capacitor forming machines, vertical molding machine with a loading resistor, solder paste mixer, PCB cut foot machine, PCB cut foot machine.
Wei Cheng spirit of "inexpensive high-quality, customer first" purpose, "customer service, life-long maintenance, " guidelines, willing to work with you hand in hand, create brilliant!
