Product Specifications
| Prod Model: |
PY-550D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area Size: |
500*500*150mm |
| Size: |
640*700*720mm |
| Max. Speed: |
500mm/Sec |
| Resolution: |
0.02mm |
| Repeatability: |
+/-0.02mm |
| Operator System: |
LCD Panel/Keyboard |
| Drive Mode: |
Micro Stepping Motor/Belt |
| Power: |
AC 220V 50-60 Hz 0.8kw |
| Weight: |
40kg |
| Work Environment: |
Temperature: 0-40degrees, Humidity: 20-90%Rh |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Glue Type: |
Hot Melt Adhesive |
| Gluing Mode: |
Wheel Gluing Machine |
| Packaging Material: |
Plastic |
| Application: |
Leather Belt |
| Packaging Type: |
Barrel |
Product Description

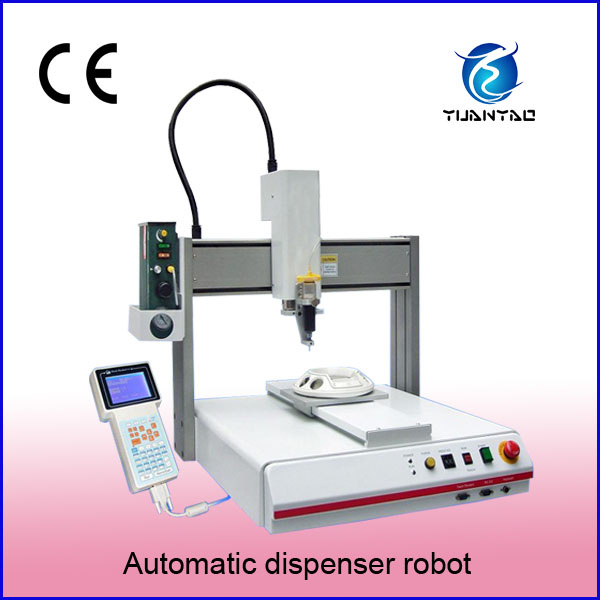

Automatic Dispensing Machinery
Feature
1 English keyboard operation.
2 Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3 The software has the area display, translation rotating operation functions.
4 Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
5 According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
6 Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7 Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Except Automatic Dispensing Machinery, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
|
Configurations |
|
Name |
Quantity |
Unit |
Remarks |
|
Motor |
3 |
set |
Micro stepping motor |
|
High precision dispensing valve |
1 |
pc |
Optional |
|
Movement vontroller |
1 |
set |
|
|
Automatic dispenser software |
1 |
set |
Automatic independent R&D |
|
Dispensing controller |
1 |
set |
SMC/MAC |
|
Specification |
|
Model |
PY-220D |
PY-330D |
PY-440D |
PY-550D |
|
Working Area |
200*200*50mm |
300*300*100mm |
400*400*100mm |
500*500*150mm |
|
Max. Speed |
500mm/sec |
|
Resolution |
0.02mm |
|
Repeatability |
±0.02mm |
|
Operator system |
LCD panel/keyboard |
|
Drive Mode |
Micro stepping motor/belt |
|
Power |
AC 220V 50-60 Hz 0.8KW |
|
Size |
380*370*500mm |
480*500*600mm |
580*600*600mm |
640*700*720mm |
|
Weight |
20KG |
30KG |
40KG |
50KG |
|
Work Environment |
Temperature: 0-40ºC, Humidity: 20-90%RH |
