Product Specifications
| Prod Model: |
TB880C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spray Mode Of Flux: |
Effervescence/Spray |
| PCB Width: |
250mm |
| Temperature Range: |
200 -300c |
| Dimension: |
3100× 1100× 1500mm |
Product Description
Product Description: Synchronous PCB board input system which runs with chain claw to ensure reliable, durable and no noise, stable transmission.

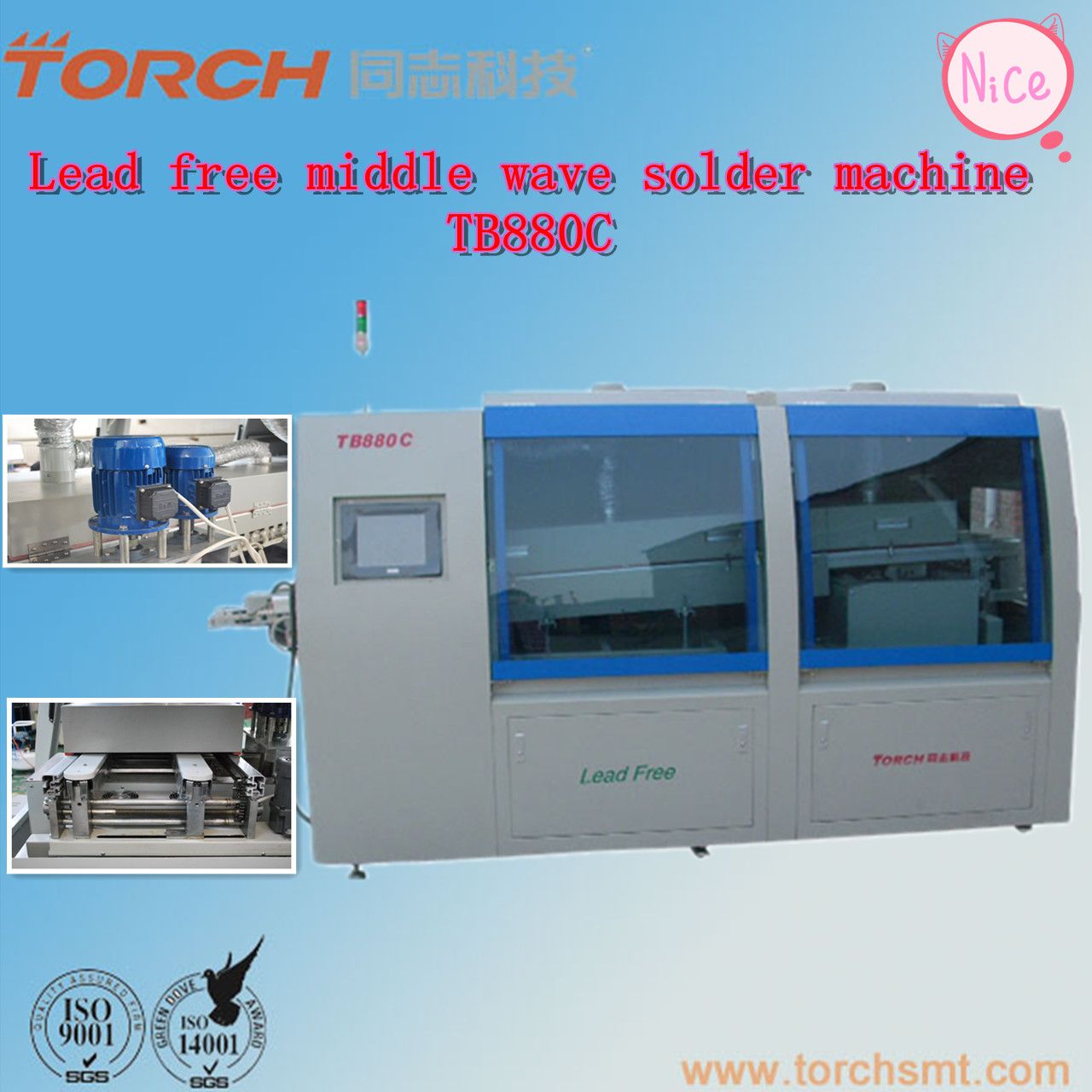

TB880C has a synchronal feeding system. Synchronal chain with claws design, no noise, smooth conveying. Control system: Industry computer with signal processing by hearing is reliable and stable. Far IR preheating system to prevent the temperature going down. New type boost spraying system of the welding flux reduces the dosage of the flux. Conveying system: Imported motor for driving with overload protection device. The width of the substrate is adjusted automatically by computer.
Remark:
Technology parameter of TB880C:
Preheating Section (Infrared+ hot air): 3Kw * 2
Preheating temperature: Room-temperature -300
Preheating control mode: PID Mode
Power of tin stove heating tube: 6Kw * (1.5KW*2+3)
Jointing control mode: PID Mode
Wave crest motor: Imported high temperature resistant motor
Soldering tin capability: Max. 500kg(Sn63Pb37); 430Kg(Sn100%)
PCB width: Max. 250mm
PCB Transmission speed: 0.5~1.8m/min
Transmission motor power: 90W
Gross power: 14Kw
Working power: 18Kw
Power supply: Three-phase, 380V, 50Hz
Air supply: Above 5Mpa
Gas pressure of spray: 0.25Mpa~0.4Mpa
Spray gun driving type: Need a spraying machine outside
Cooling system: Wind cooling system.
Dimension (L*W*H) 3400 *1200 *1500
Weight: About 1250kg
|
Model |
TB880C |
|
Preheating Section (Infrared+ hot air) |
3Kw * 2 |
|
Preheating temperature |
Room-temperature -300 |
|
Preheating control mode |
PID Mode |
|
Power of tin stove heating tube |
6Kw * (1.5KW*2+3) |
|
Jointing control mode |
PID Mode |
|
Wave crest motor |
imported high temperature resistant motor |
|
Soldering tin capability |
Max. 500kg(Sn63Pb37); 430Kg(Sn100%) |
|
PCB width |
Max. 250mm |
|
PCB Transmission speed |
0.5~1.8m/min |
|
Transmission motor power |
90W |
|
Gross power |
14Kw |
|
Working power |
18Kw |
|
Power supply |
Three-phase, 380V, 50Hz |
|
Air supply |
above 5Mpa |
|
Gas pressure of spray |
0.25Mpa~0.4Mpa |
|
Spray gun driving type |
need a spraying machine outside |
|
Cooling system |
wind cooling system |
|
Dimension (L*W*H) |
3400 *1200 *1500 |
|
Weight |
about 1250kg |
Beijing Torch Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.
Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.
At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.
A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.
Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
