Automatic Embossing and Perforating Industrial Roll Machine

Name: Automatic Embossing and Perforating Industrial Roll Machine
Brand: china-manufacturer-directory.com
SKU: 717851685
Availability: InStock
Rating: 4.6 (69 reviews)

Supplier:	Fujian Xinyun Machinery Development Co., Ltd.
Price:	US $ 1-20000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XY-TQ-G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Speed:	100~200m/Min
Automatic Function:	Embossing, Perforating and Rewinding
Machine For:	Jumbo Toilet Tissue Paper Roll or Paper Towel
Embossing Device:	Steel to Rubber
Machine Design:	Customize Service
Process:	Finishing Process Machine
Usage:	Household Paper Machine
Type:	Slitting Rewinder
Certification:	CE
Automatic Grade:	Automatic

Product Description

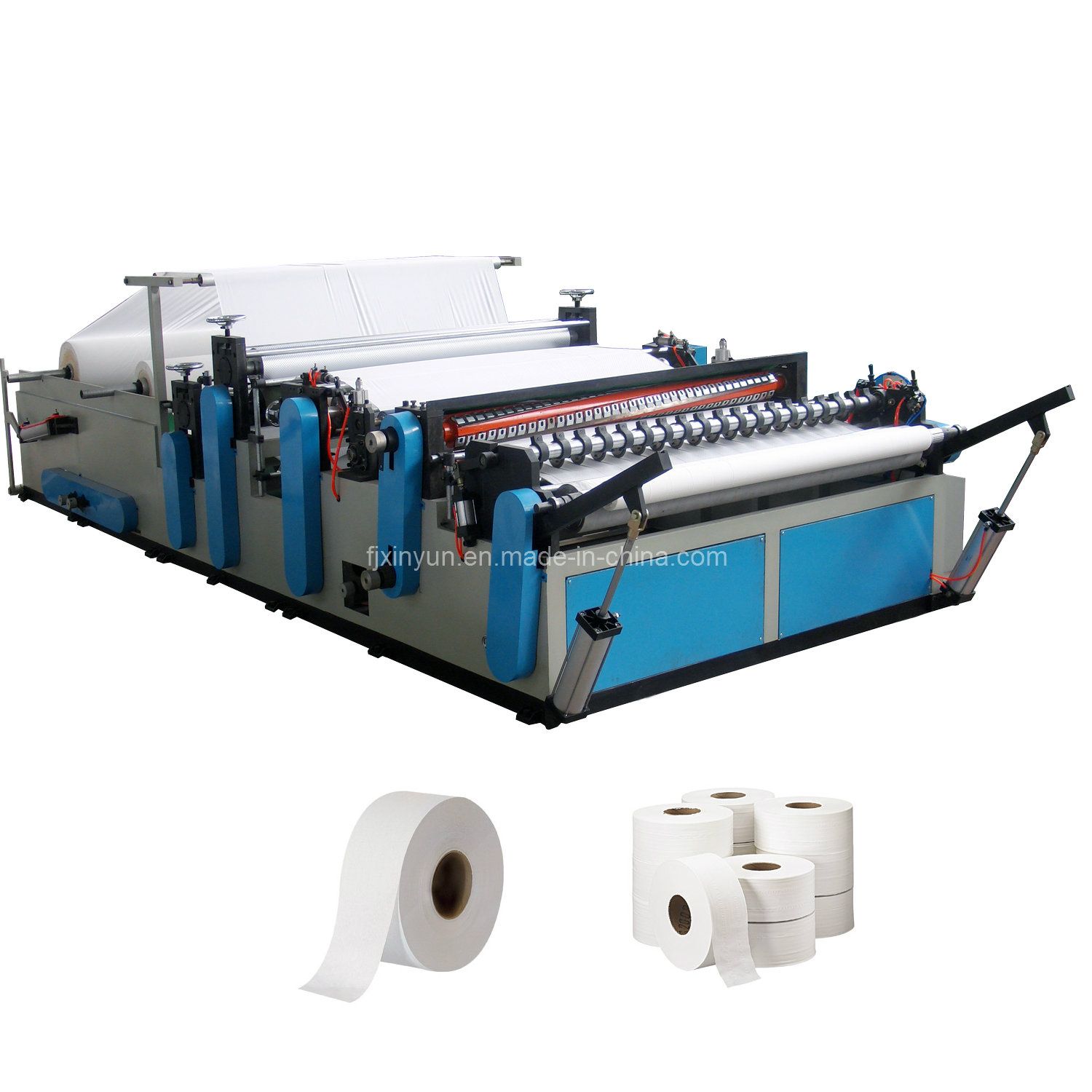

XY-TQ-1575G Automatic Embossing and Perforating Industrial Roll Machine

XY-TQ-1575G This equipment produces jumbo roll toilet tissue paper and towel roll. It has the function of embossment, perforation, slitting and rewinding, all of them can be finished on one time. This machine equipped with pneumatic jumbo roll lifter, pneumatic belt driving, tension adjustment and so on. Adopt air-shaft for reeling.

Main character:
1. Adopt air-shaft for reeling, convenient to set the position of paper pipe.
2. Press-edge system: Adopt steel against steel press-edge, independence cylinder adjustment, convenient to adjust to avoid paper layer apart.
3. Horizontal type unreeling stand, pneumatic lifter, pneumatic flat belt convey paper, there is individual tension adjustment unit on each jumbo roll.
4. Adopt front and back inching switch to draw raw material, convenient for operation and safety.
5. As per requirement of customer, it can add tail-gluing and edge-trimming function. (need to order)
Main technician parameter:

Model	1092	1575	2000	2200	2400	2600	2800
Width of raw material	1200	1750	1950	2150	2350	2550	2750
Dia. of finished product (mm)	Φ90~1200 (the tension can be adjustable )
Dia. of raw material (mm)	Φ1100(please point other specification)
Inner dia. of core of raw material	76.2 mm(please point other specification)
Distance of perforation (mm)	90~160mm
Processing of capacity	100~200m/min
Reeling	Air shaft (one piece)
Embossment	Single embossment,double embossment ,steel to steel embossment
Bottom roller of embossment	Felt roller, wool roller, rubber roller.
Unwinding stand	1-3 layer (please point the number of layers)
Embossing unit	steel to rubber
Pneumatic system	3 air compressor,Min. pressure 5kg/cm2 Pa(prepare by customers)
Power	4.5-11 kw
Overall size (mm) (L×W×H)	6200x2600x1800~6200x4000x1800 mm
Weight	1800~4800kg
Option (pay by customer )	Customize service
Embossing unit	Single embossment, double embossment, steel to steel embossment
Bottom roller of embossment	Felt roller, wool roller , rubber roller
Unwinding stand	1-3layer
Edge embossment	Need to order
Calendaring unit	steel to steel, steel to rubber
Trimming unit	Vacuum adsorption trimming 1.5KW
Edge Trimming and sealing	Need to order
Driving system	Frequency control
Lamination	Glue Laminating
